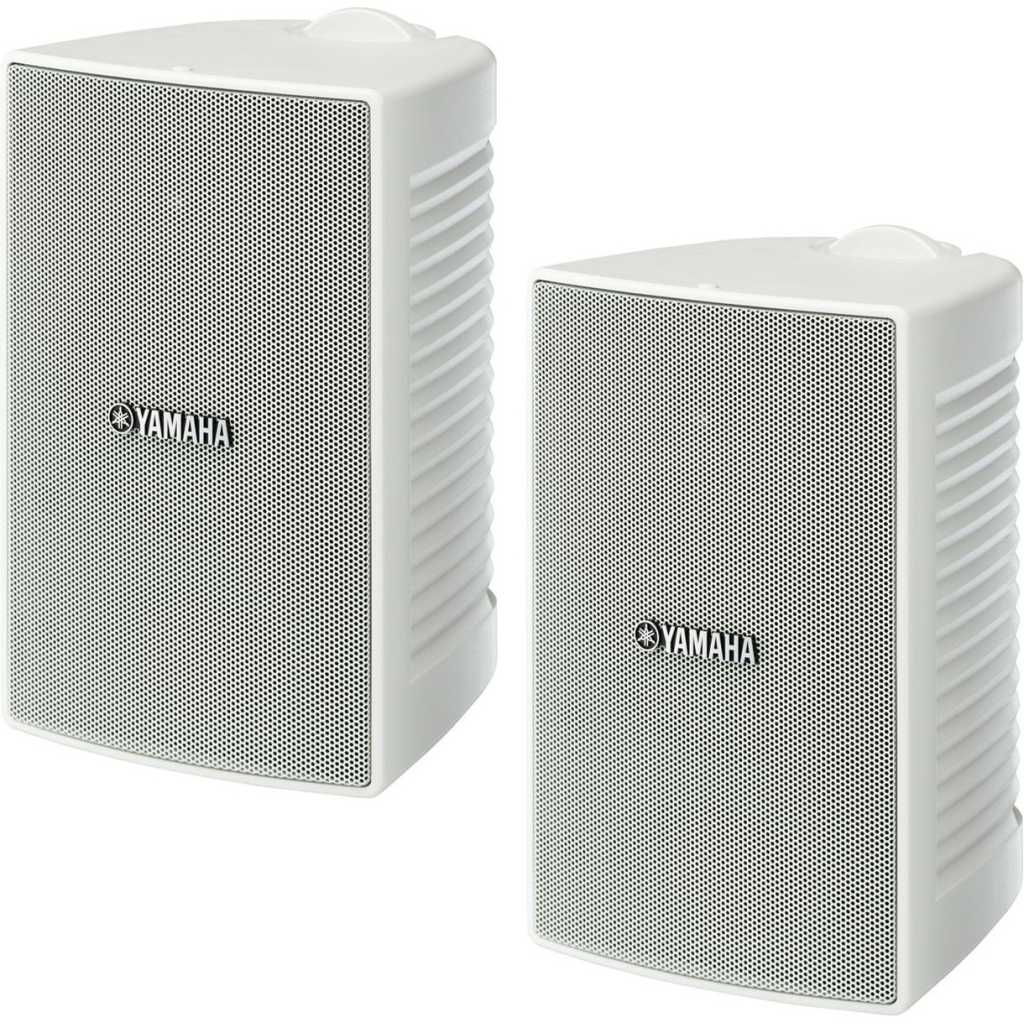

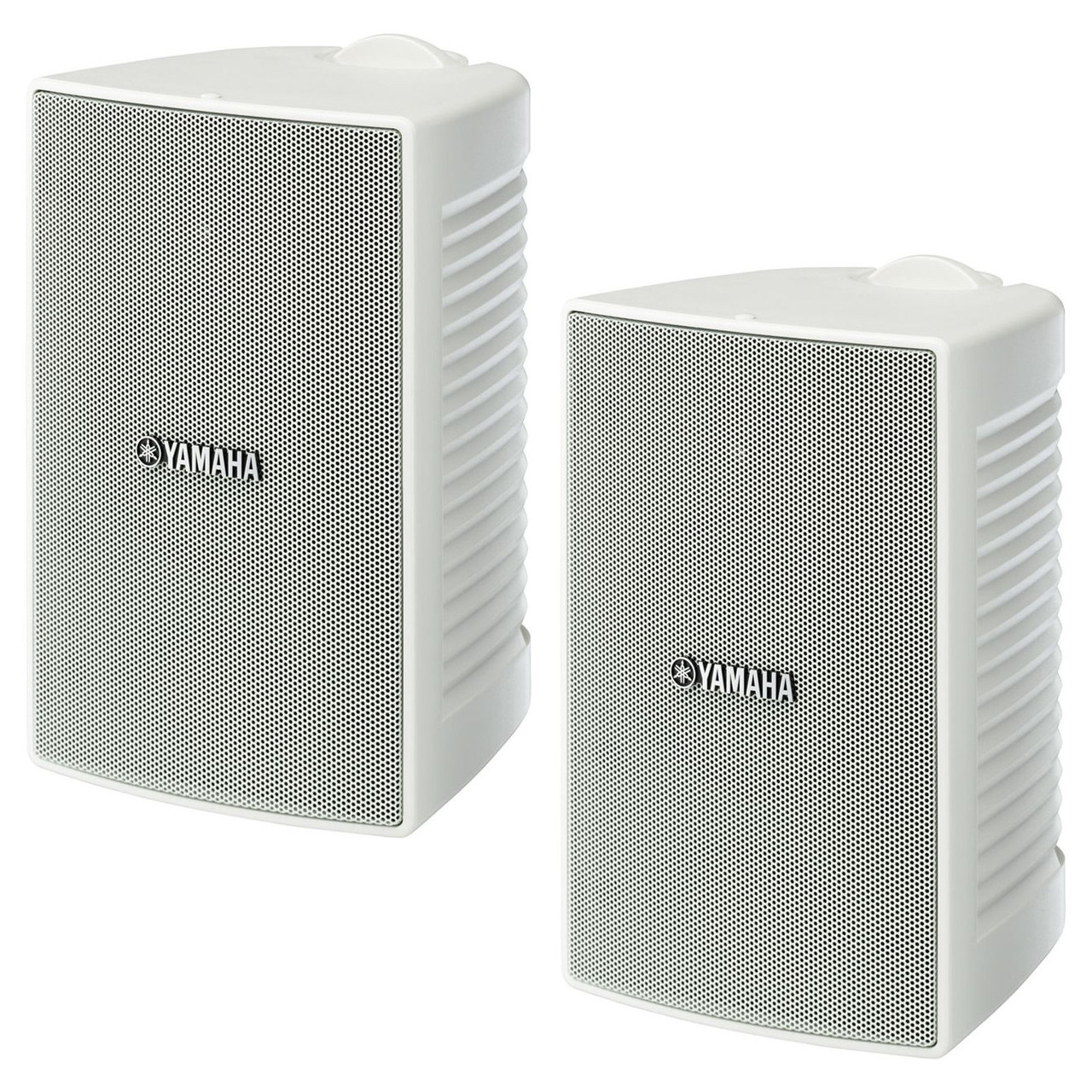

A superb blend of aesthetic simplicity and functional sophistication, the VS Series delivers high quality sounds in a variety of indoor and outdoor settings, particularly locations where interior design is a consideration. Let the VS Series be the perfect complement to your sonic needs.
– Compact surface mount speakers with superior sound quality and sleek, functional design.
– Feature a 1″ balanced dome tweeter and are available in Black or White.
– Waterproof construction meeting the IEC60529 IPX3 rating requirements for outdoor usage.
– Internally mounted transformers allowing operation in 70V or 100V distributed sound systems.
– Dedicated, color-matched steel U-bracket enclosed for horizontal or vertical installation.
– Paintable enclosure and grill to match any decor.
– Overload protection circuit provided to protect speaker components.
Easily adaptable to virtually any environment with its sleek, compact and functional design
The VS Series’ smart and compact construction makes them well suited to locations where interior design is a consideration. Black and white models are available to choose from to match your applications. The speakers also feature waterproof enclosures and transducers which meet IPX3 rating requirements, allowing them to be used outdoors under cover.
Internal transformer allows operation in 70V or 100V distributed sound systems
Tap selector switch is located on the rear panel to select the power tap of 70V/100V line distributed system or 8Ω sound system. The setting can be easily adjusted by rotating the tap selector with a screwdriver. The terminals and tap selector can be protected using the supplied cover.
Flexible setting of the speakers with the dedicated U-brackets
The speakers are supplied with dedicated, color-matched brackets for fast and easy installation. The brackets can be set either horizontally or vertically, depending on where you want to mount the speakers.
| VS6 | ||
| General specifications | ||
| Frequency range (-10dB) | 80Hz – 20kHz | |
| Nominal coverage | H | 90 |
| V | 90 | |
| Components | LF | 6,5″(160mm) cone driver |
| HF | 1″(25mm) balanced dome tweeter | |
| Crossover | 15kHz | |
| Power rating | NOISE | 25W |
| PGM | 50W | |
| PEAK | 100W | |
| Nominal impedance | 8Ω | |
| Transformer taps | 100V | 25W, 12.5W, 6.3W |
| 70V | 25W, 12.5W, 6.3W, 3.1W | |
| SPL | Sensitivity (1W; 1m on axis) | 90dB SPL |
| Peak (Calculated) | 110dB SPL (100W) | |
| I/O connectors | 2 pairs of barrier strip (parallel-wired * Screw size: M3, Terminal Space: 6mm) | |
| Shape | Rectangular | |
| Cabinet material | HIPS, 94-HB | |
| Finish | VS6: Black, VS6W: White | |
| Flying and mounting hardware | U-bracket (4 x Φ5.5mm and 2 x Φ11mm holes) | |
| Waterproof | IEC60529 IPX3 splash proof rating | |
| Dimensions | W | 190 mm (7 1/2″) |
| H | 308 mm (12 1/8″) | |
| D | 219 mm (8 5/8″) | |
| Net weight | 2.8kg (6.2lbs) | |
| Accessories | U-bracket, Owner’s Manual, Retaining knob, Terminal cover, Terminal cover screw, SPECIFICATIONS | |
| Others | Packaged in pair |
