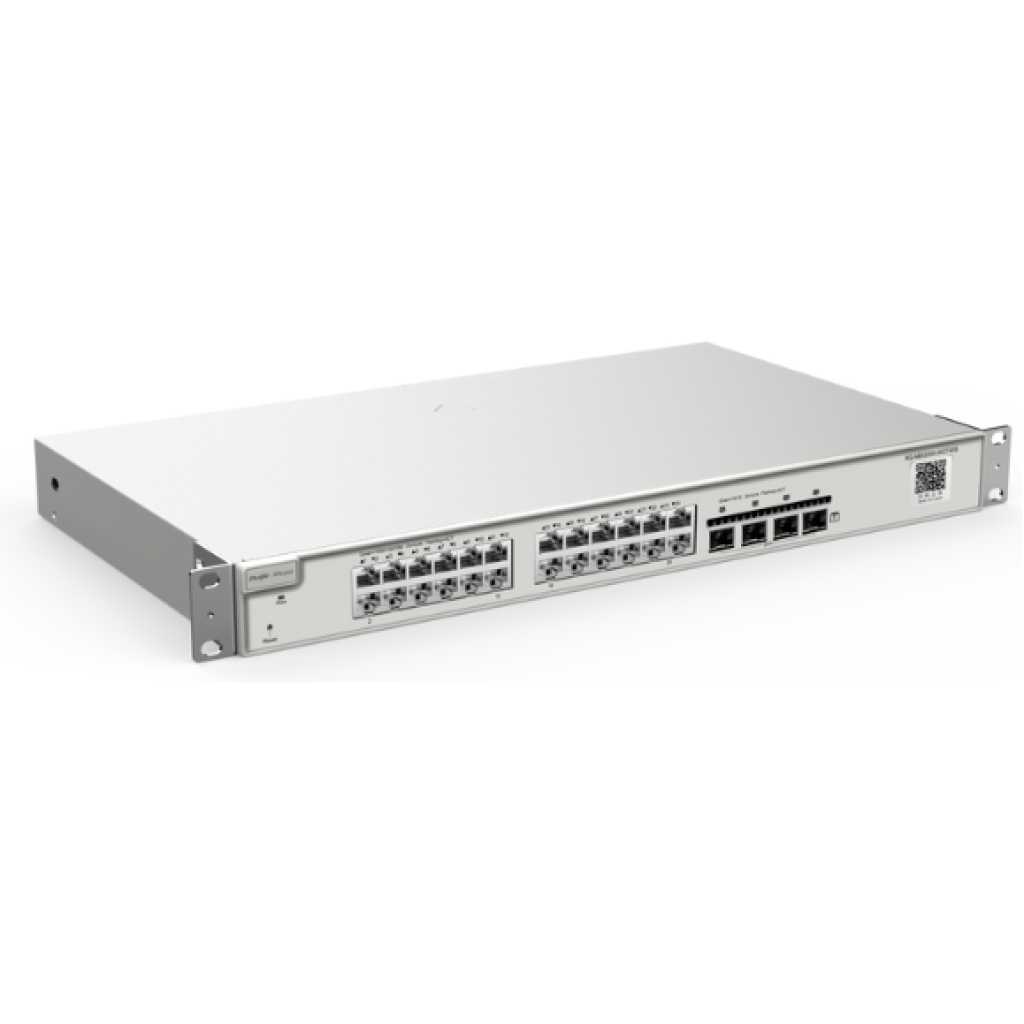

The Ruijie RG-NBS3200-24GT4XS-P is a high-performance, cloud-managed Layer 2 switch designed to meet the demanding needs of modern enterprise networks. With its robust set of features, this switch is ideal for a variety of applications, including enterprise, hospitality, education, and retail environments.
High Port Density and Power Over Ethernet (PoE+)
Equipped with 24 Gigabit Ethernet ports, the RG-NBS3200-24GT4XS-P provides ample connectivity for a wide range of devices. Each port supports PoE+, delivering up to 30W per port, with a total power budget of 370W. This makes it perfect for powering IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices, eliminating the need for additional power supplies and reducing cable clutter.
Advanced Layer 2 Features
The switch supports a comprehensive set of Layer 2 features, including VLANs, link aggregation, and IGMP snooping. These features enhance network performance and security, allowing for efficient traffic management and segmentation. The switch also supports advanced security features such as port security, DHCP snooping, and IP source guard, ensuring a secure and reliable network environment.
Cloud Management
The RG-NBS3200-24GT4XS-P is part of Ruijie’s cloud-managed switch series, allowing for easy and centralized management through the Ruijie Cloud platform. This platform provides a user-friendly interface for monitoring and configuring the switch, making network management more efficient and reducing the need for on-site IT support. With features like zero-touch provisioning and remote troubleshooting, the Ruijie Cloud platform simplifies network operations and maintenance.
High Performance and Reliability
With a switching capacity of 128 Gbps and a forwarding rate of 95.24 Mpps, the RG-NBS3200-24GT4XS-P ensures high performance and low latency for all connected devices. The switch is built with enterprise-class hardware, including a robust metal chassis and high-quality components, ensuring long-term reliability and durability. Additionally, the switch supports redundant power supplies, providing an extra layer of reliability for mission-critical applications.
Flexible Deployment Options
The RG-NBS3200-24GT4XS-P is designed for flexible deployment in various environments. It can be mounted in a standard 19-inch rack or placed on a desktop, providing versatility in installation. The switch also features a fanless design, ensuring quiet operation, which is ideal for office and classroom settings.
Technical Specifications
- Ports: 24 x 10/100/1000Base-T PoE+ ports, 4 x SFP+ uplink
- PoE Power Budget: 370W
- Switching Capacity: 128 Gbps
- Forwarding Rate: 95.24 Mpps
- MAC Address Table: 16K
- VLANs: 4094
- Dimensions: 440 mm x 357.6 mm x 43.6 mm
- Weight: 4.75 kg
- MTBF: > 200,000 hours
- Power Supply: Fixed, single AC
- Fan: Single, left-to-right airflow
- Port Surge Protection: 6 kV
- Warranty: 1 year
