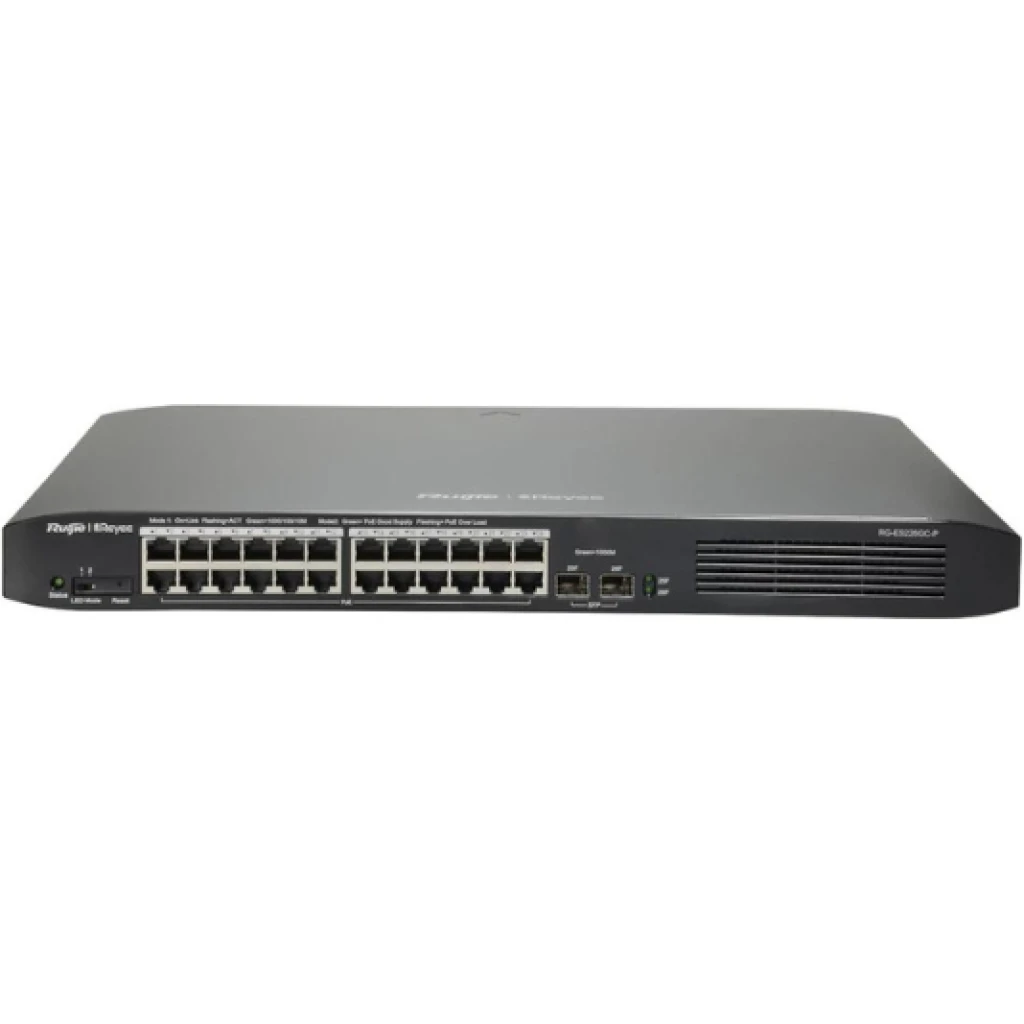

Ruijie Reyee RG-ES226GC-P 26-Port Gigabit Smart POE Switch

The Ruijie RG-ES226GC-P is an advanced 26-port Gigabit Smart Cloud Managed PoE Switch, specifically engineered to meet the demanding needs of modern businesses. Whether you are operating a small to medium-sized enterprise, managing a large office building, or setting up a robust surveillance network, this switch provides the performance, reliability, and scalability required for a seamless network experience.

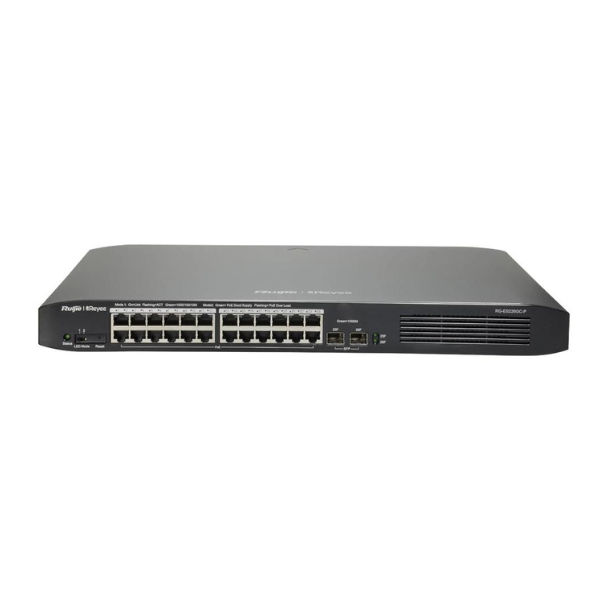

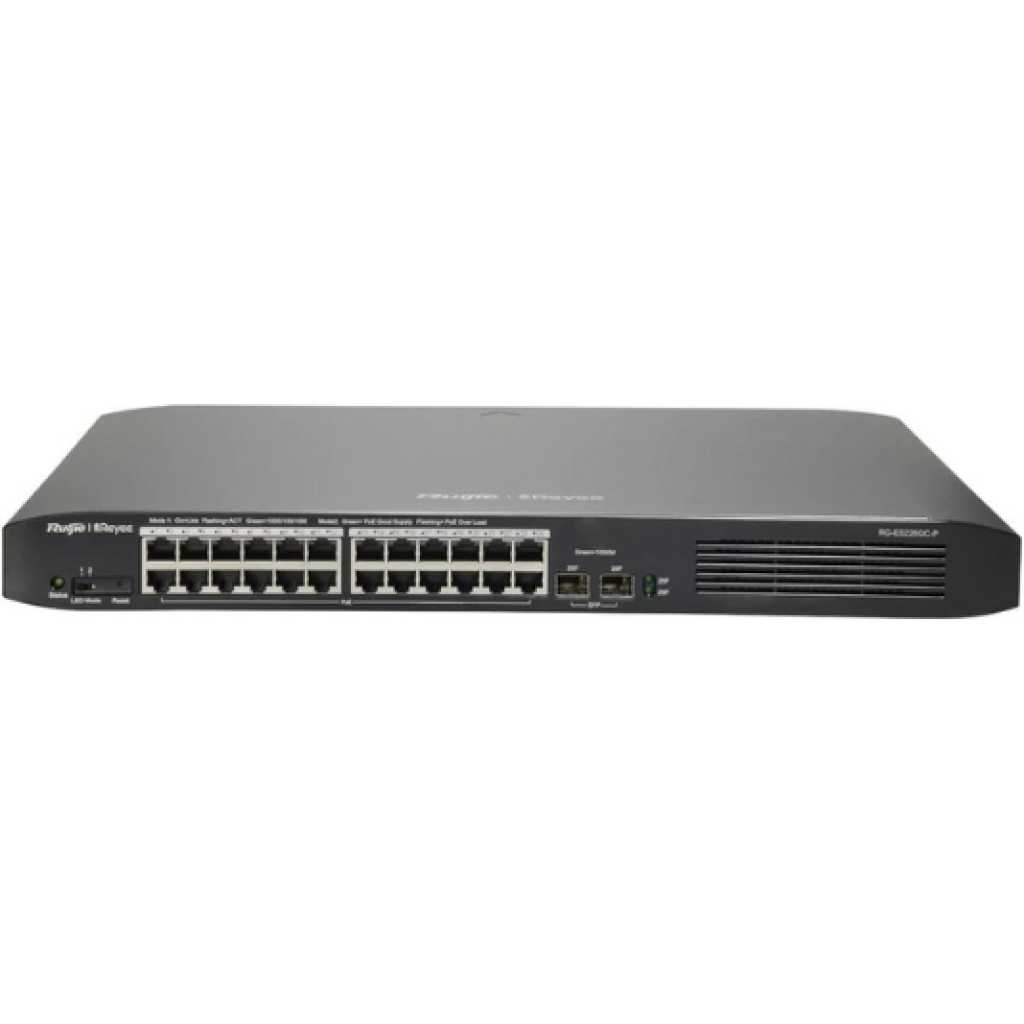

Comprehensive Port Configuration and High PoE Budget This switch comes with 24 Gigabit PoE+ ports and 2 additional SFP uplink slots, allowing for efficient data transmission and flexible connectivity options. The 24 PoE+ ports support both data and power transmission, with each port delivering up to 30W of power, making it ideal for connecting high-consumption devices such as IP cameras, wireless access points, and VoIP phones. The total PoE power budget of 370W ensures that all your devices are adequately powered, even in large deployments.

Cloud-Managed for Remote Monitoring and Configuration One of the standout features of the RG-ES226GC-P is its cloud management capability. Through Ruijie’s cloud platform, network administrators can remotely monitor, configure, and troubleshoot the switch from anywhere with an internet connection. This reduces the need for on-site IT support, saves time, and minimizes downtime, making it an invaluable asset for businesses with multiple locations or limited IT resources.

Designed for Enhanced Network Security Security is paramount in any network, and the RG-ES226GC-P is designed with several features to ensure the safety of your data. The switch supports advanced security protocols, including 802.1x port-based authentication, DHCP snooping, and IP-MAC-Port binding, which help protect the network from unauthorized access and potential threats.

Automatic Loop Prevention and Stable Operation Network loops can cause severe issues, leading to downtime and disruptions. The RG-ES226GC-P includes an automatic loop prevention feature, which actively detects and mitigates any loops in the network. This ensures continuous operation and minimizes the risk of network failures.

Scalability and Future-Proofing As businesses grow, so do their networking needs. The RG-ES226GC-P is designed with scalability in mind, allowing you to expand your network effortlessly. The switch supports VLANs, enabling you to segment your network for better security and performance. Additionally, with a 52 Gbps switching capacity, the switch can handle high volumes of traffic, ensuring smooth data flow across all connected devices.

Durable and Reliable Build Constructed with a sturdy 19-inch rack-mountable steel case, the RG-ES226GC-P is built to last. Its robust design ensures that it can withstand the rigors of continuous operation in demanding environments. Furthermore, the switch is equipped with built-in fans for efficient cooling, which helps maintain optimal performance and prolongs the lifespan of the device.

Ease of Deployment The RG-ES226GC-P is designed for easy deployment. Its plug-and-play nature means that it requires minimal configuration, making it suitable for businesses that need a quick and reliable networking solution without the complexity. Whether you’re setting up a new network or upgrading an existing one, this switch offers a hassle-free experience.

Ideal for Surveillance and CCTV Networks This switch is particularly well-suited for surveillance networks, thanks to its IP camera recognition feature. It automatically detects and optimizes settings for connected IP cameras, ensuring smooth and reliable video transmission. This makes it an excellent choice for businesses looking to enhance their security systems with high-definition CCTV cameras.

Technical Specifications

• Ports: 24 x 10/100/1000Base-T PoE+ RJ45 ports, 2 SFP uplink slots
• PoE Budget: 370W total, up to 30W per port
• Switching Capacity: 52 Gbps
• Forwarding Rate: 38.69 Mpps
• MAC Address Table: 8,000 entries
• VLANs Supported: Up to 16 VLANs
• Surge Protection: 4kV protection on PoE ports
• Dimensions: 440 mm x 289 mm x 43.6 mm
• Weight: 4.2 kg (with packaging)
• Cooling: Built-in fans for efficient heat dissipation
• Mounting: 19-inch rack-mountable steel case
• MTBF (Mean Time Between Failures): Over 200,000 hours
• Warranty: 1 year.

The Ruijie RG-ES226GC-P is a versatile, high-performance switch that combines robust features with ease of management. It’s a perfect fit for businesses looking to establish a reliable and secure network infrastructure, capable of supporting a wide range of devices with minimal maintenance and downtime.
