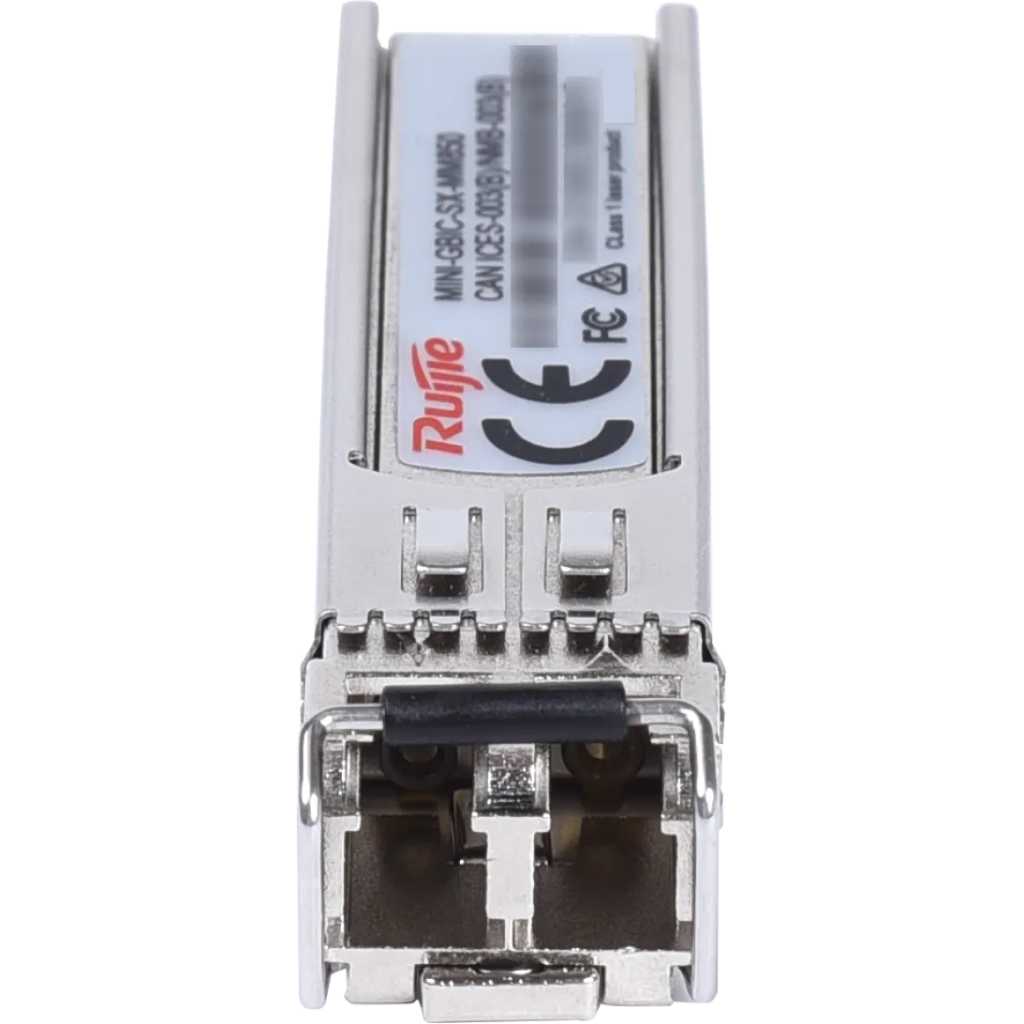

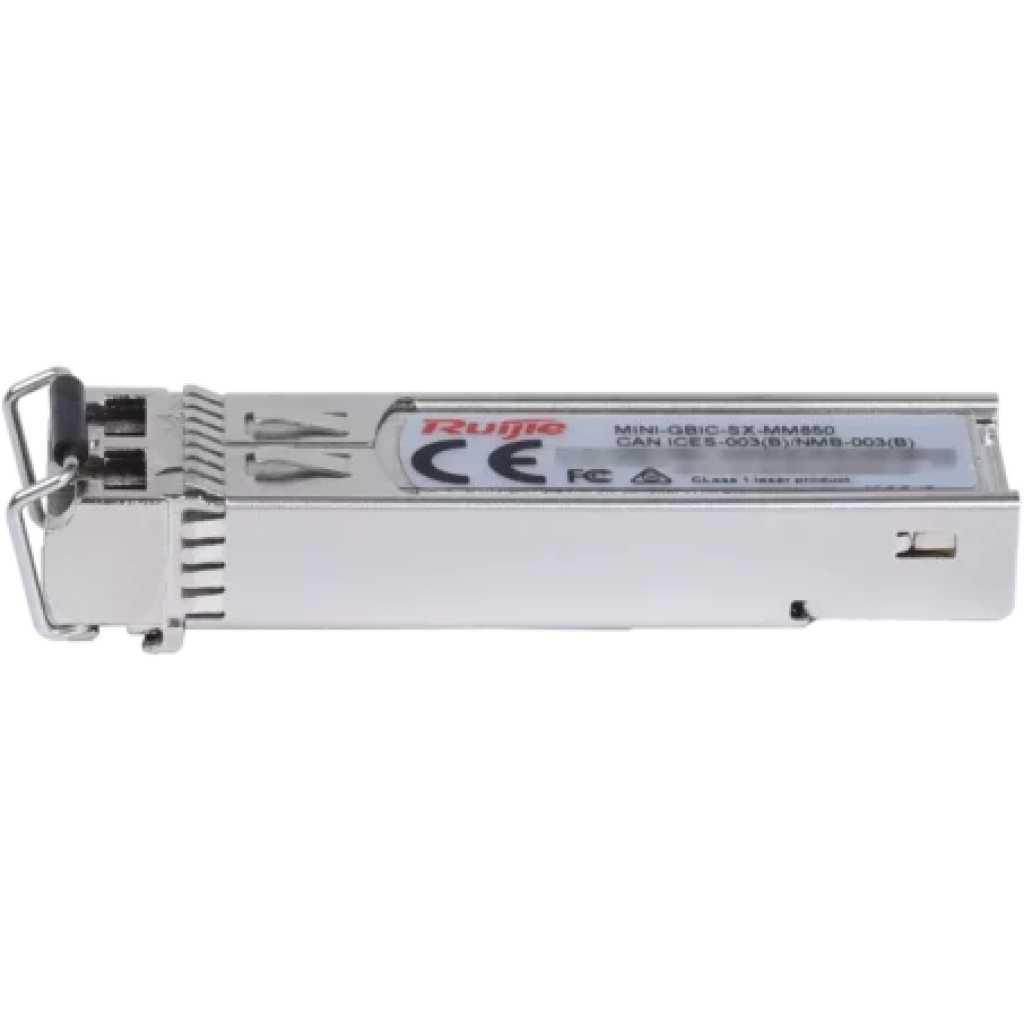

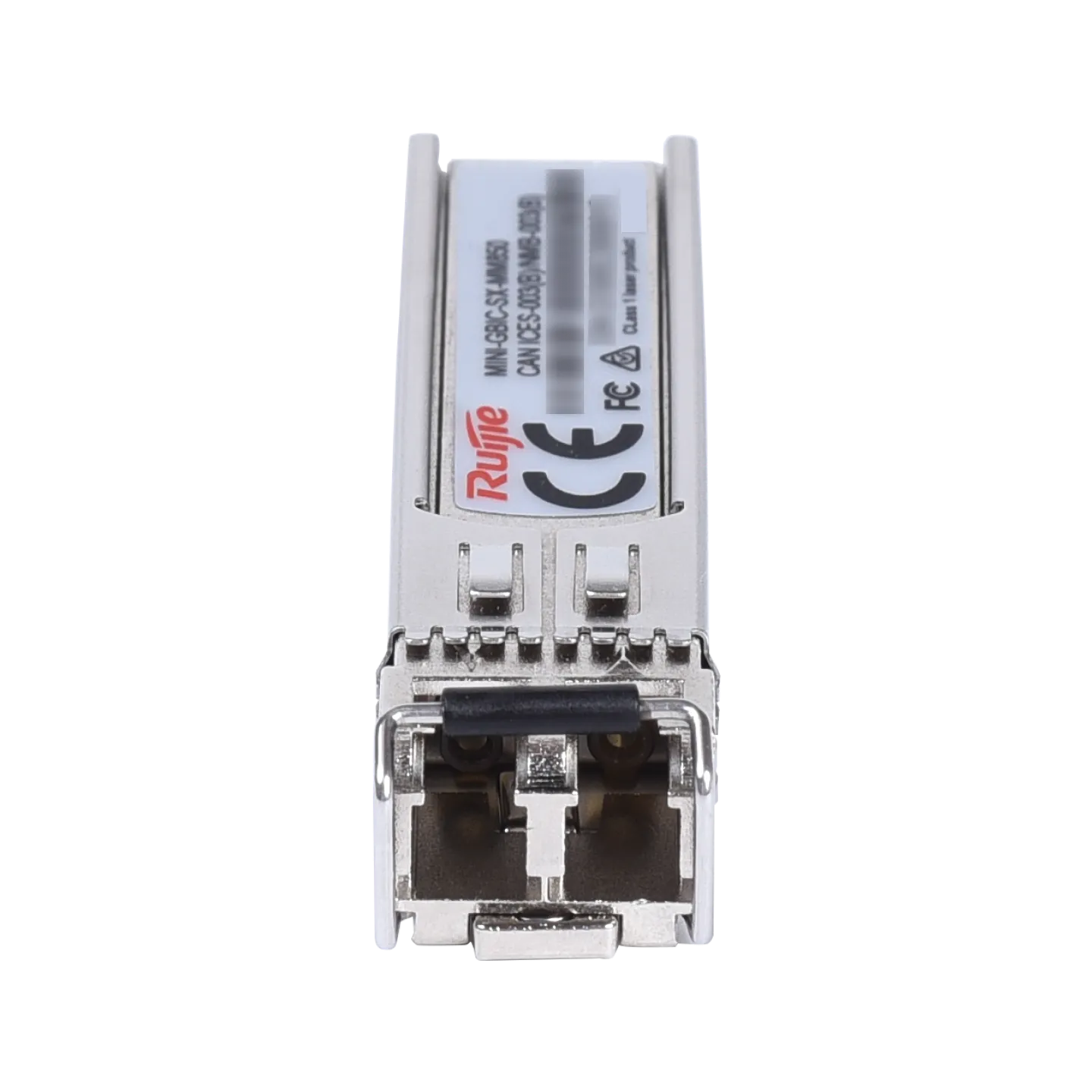

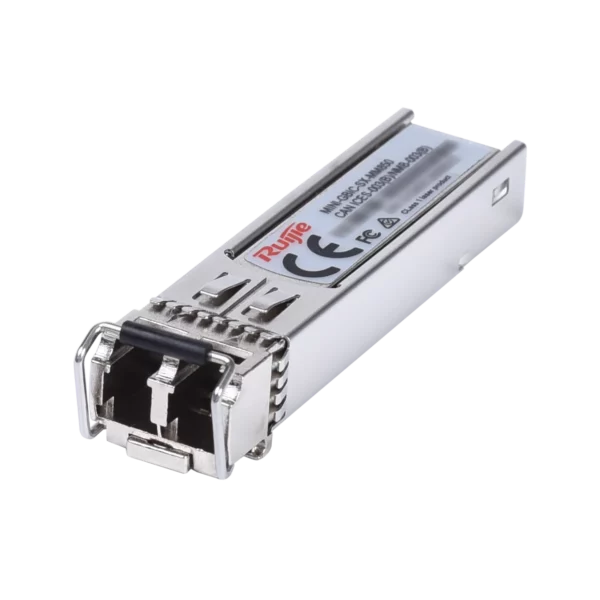

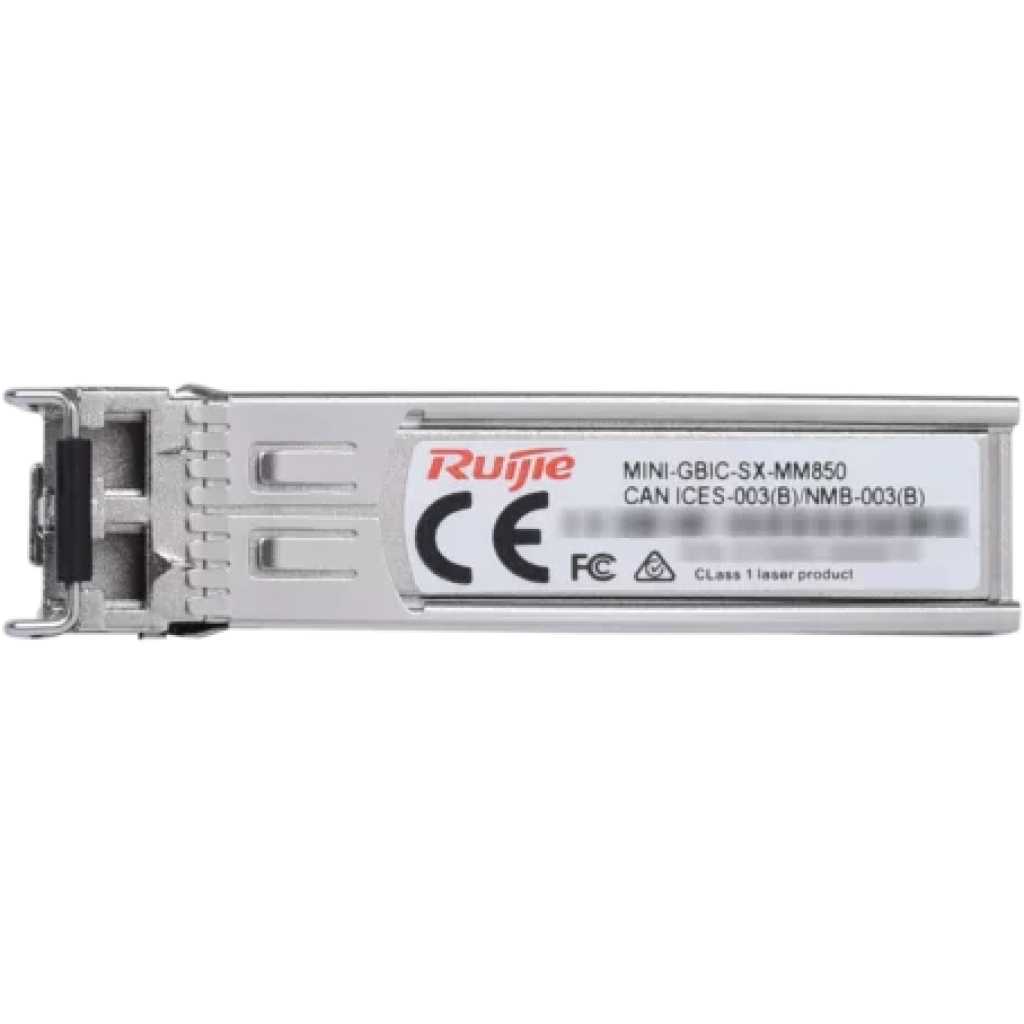

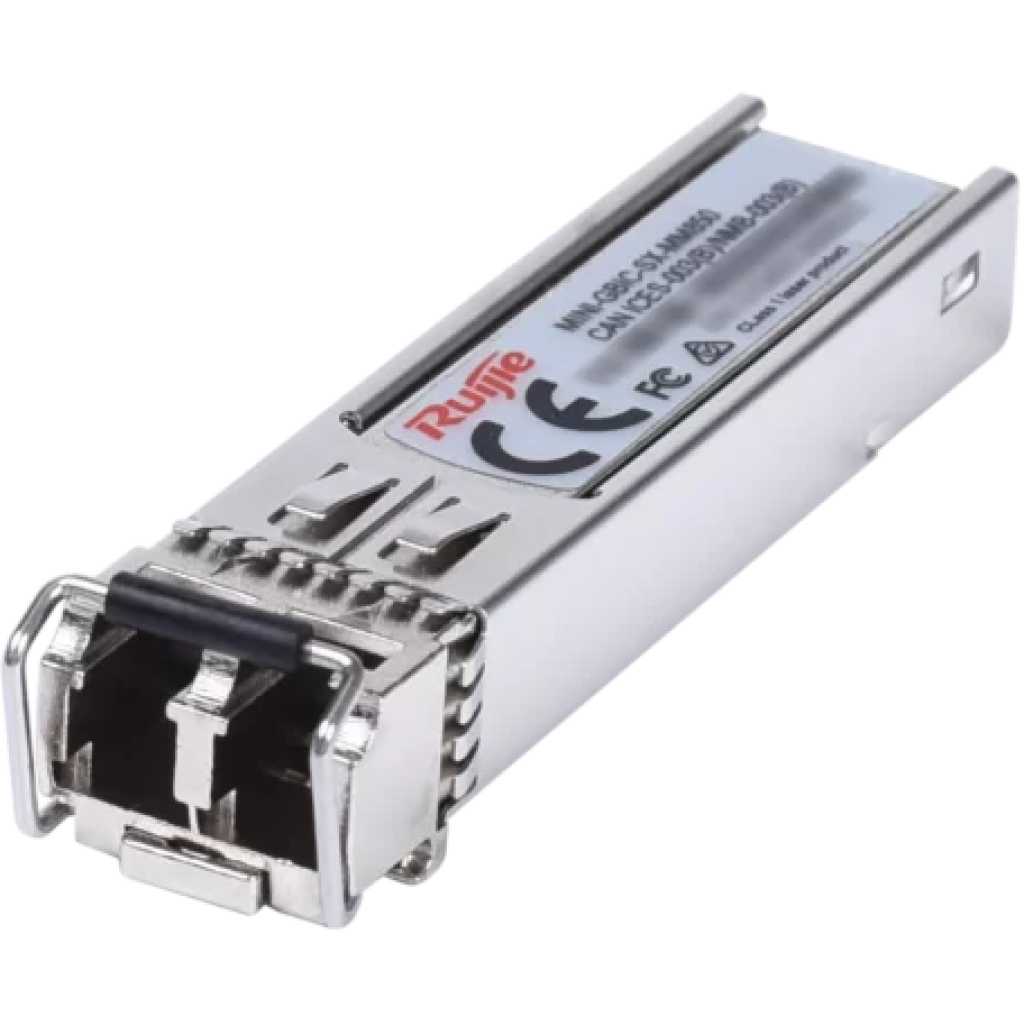

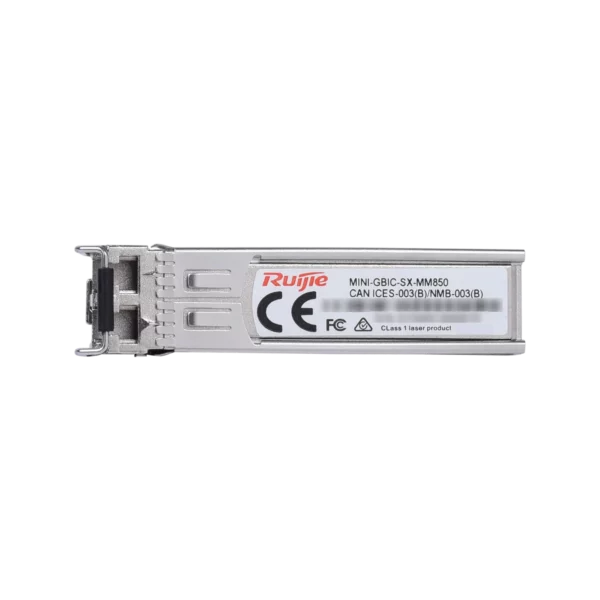

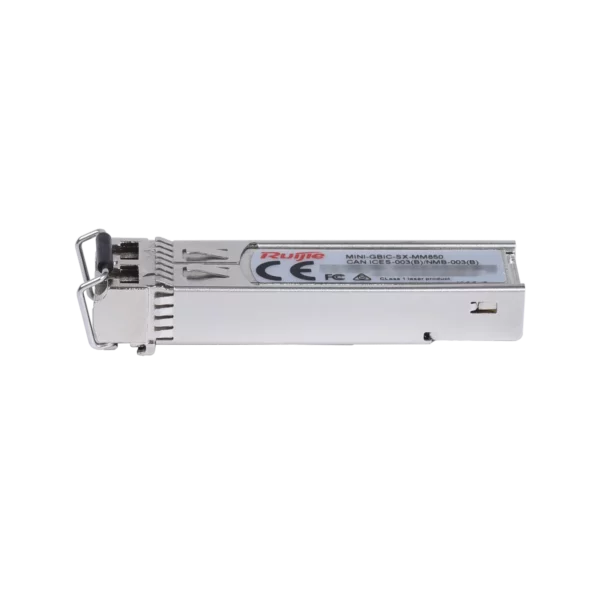

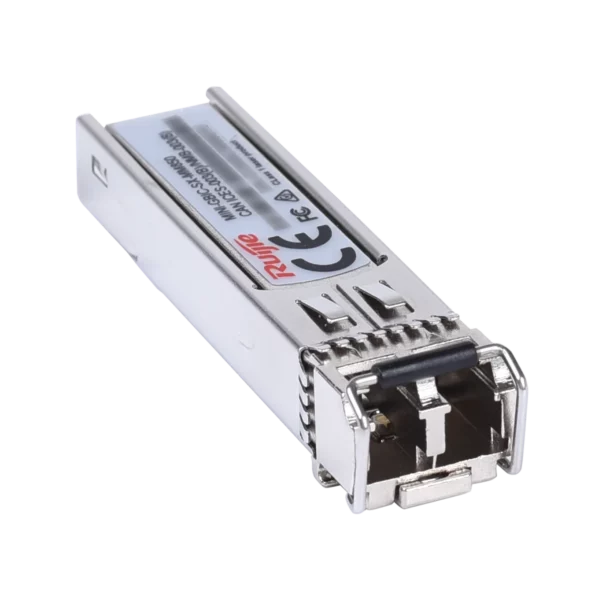

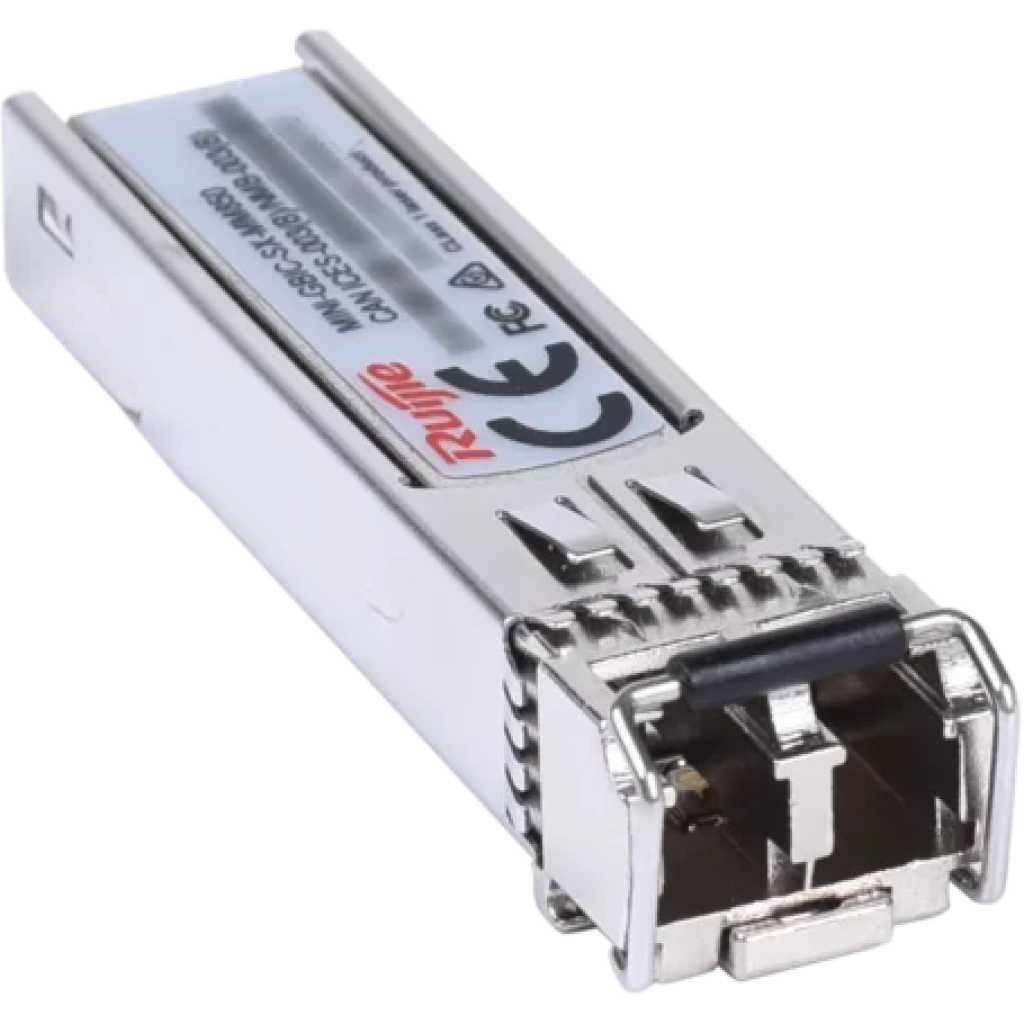

The Ruijie MINI-GBIC-SX-MM850 is a high-performance SFP (Small Form-factor Pluggable) transceiver designed to meet the demanding needs of modern network environments. This transceiver is fully compliant with IEEE 802.3z 1000BASE-SX standards, ensuring reliable and efficient data transmission over multimode fiber (MMF) networks. Operating at a wavelength of 850 nm, it offers a data rate of up to 1.25 Gbps, making it ideal for gigabit Ethernet applications in data centers, enterprise networks, and campus environments.

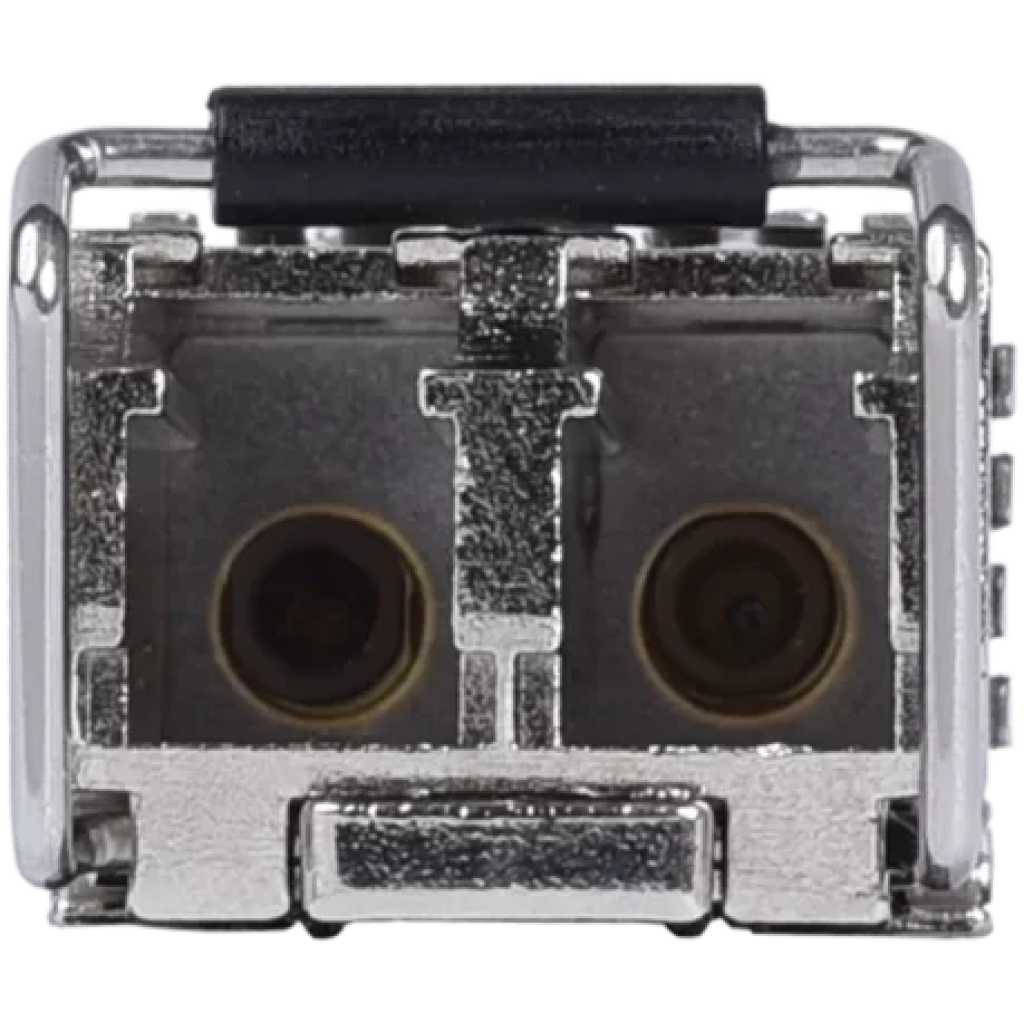

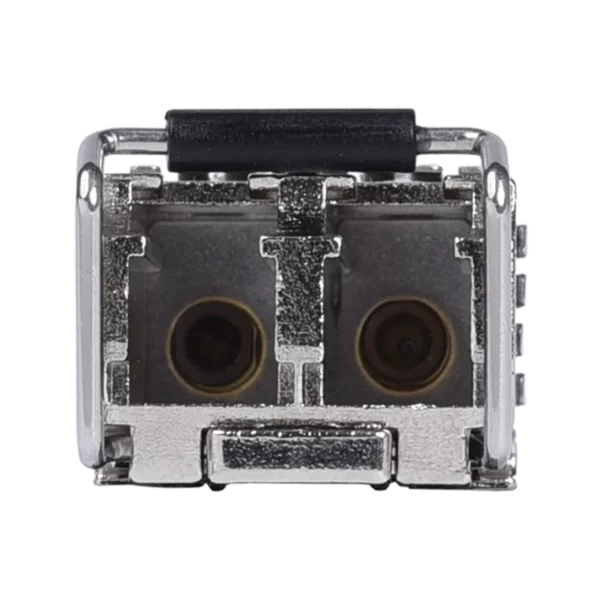

Advanced Features and Performance The MINI-GBIC-SX-MM850 is built with a focus on reliability and performance. It supports a link length of up to 550 meters over MMF, making it suitable for medium-range fiber optic communications. The transceiver is equipped with a Duplex LC connector, which is the standard interface for high-speed data transmission, ensuring compatibility with a wide range of networking equipment.

This SFP transceiver also features a digital diagnostic monitoring interface (DDM), which provides real-time information on parameters such as temperature, supply voltage, and optical power, allowing for easier management and troubleshooting of the network.

Ease of Use and Compatibility One of the key advantages of the MINI-GBIC-SX-MM850 is its hot-pluggable design, allowing for easy installation and removal without disrupting the network. This makes it a convenient choice for network administrators who need to upgrade or maintain their network without causing downtime.

The transceiver is compliant with various industry standards, including SFP MSA, RoHS, and Class 1 Laser safety, ensuring it meets global safety and environmental regulations. Its low power consumption, rated at less than 1.5W, makes it an energy-efficient choice for modern networks.

Applications The MINI-GBIC-SX-MM850 is ideal for use in a variety of settings, including data centers, enterprise LANs, and campus networks. It enables high-speed, cost-effective connectivity between switches, routers, servers, and network interface cards (NICs). Whether you are setting up a new network or upgrading an existing one, this transceiver provides the performance and reliability needed for smooth operation.

Reliability and Safety In addition to its high performance, the MINI-GBIC-SX-MM850 is designed with safety in mind. It conforms to Class 1 Laser safety standards, ensuring safe operation within the specified parameters. The transceiver is also RoHS compliant, which means it is free from hazardous materials, making it a sustainable choice for environmentally conscious organizations.

Technical Specifications

• Model: MINI-GBIC-SX-MM850
• Data Rate: 1.25 Gbps
• Form Factor: SFP
• Connector Type: Duplex LC
• Cable Type: Multimode Fiber (MMF)
• Wavelength: 850 nm
• Maximum Reach: 550 meters
• Power Consumption: ≤ 1.5W
• Digital Diagnostic Monitoring: Yes
• Compliance: IEEE 802.3z, SFP MSA, RoHS
• Transmit Power (Max): 0 dBm
• Transmit Power (Min): -9.5 dBm
• Receiver Type: PIN
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
