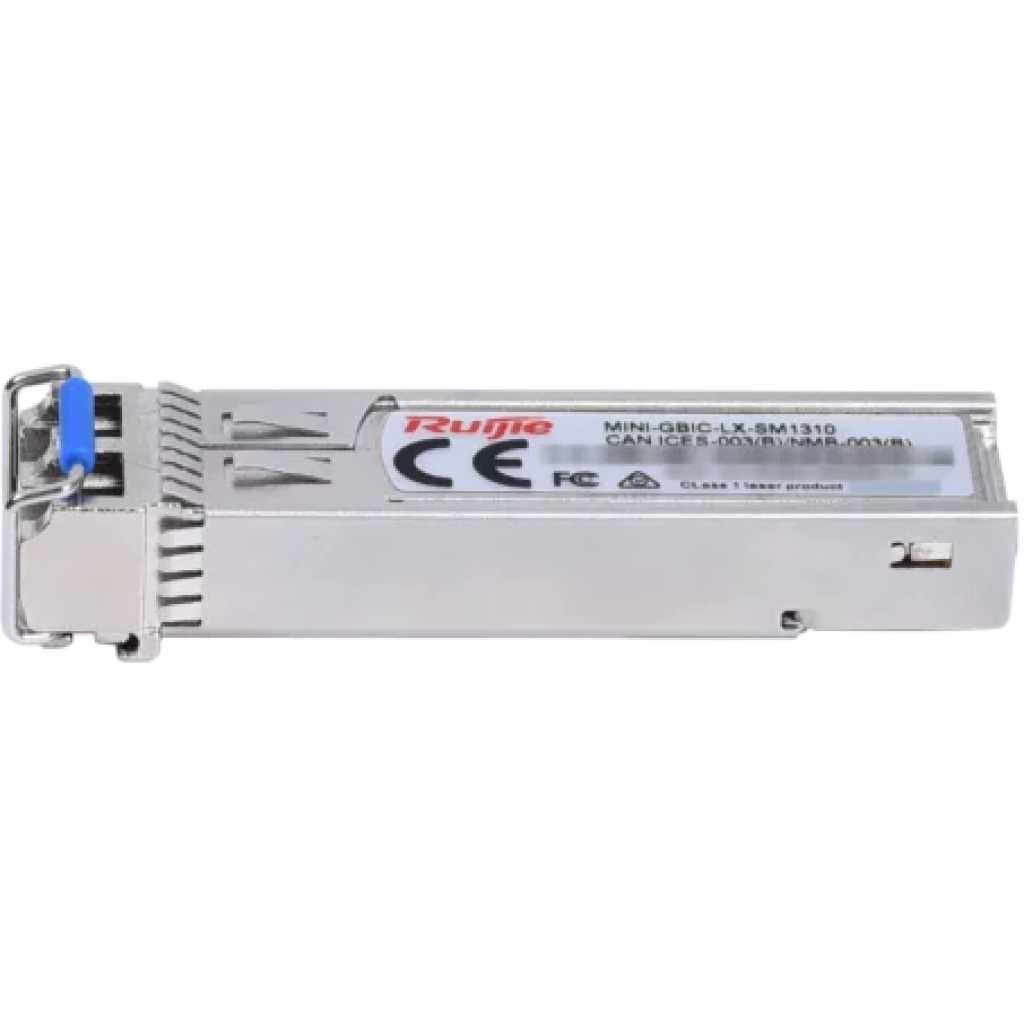

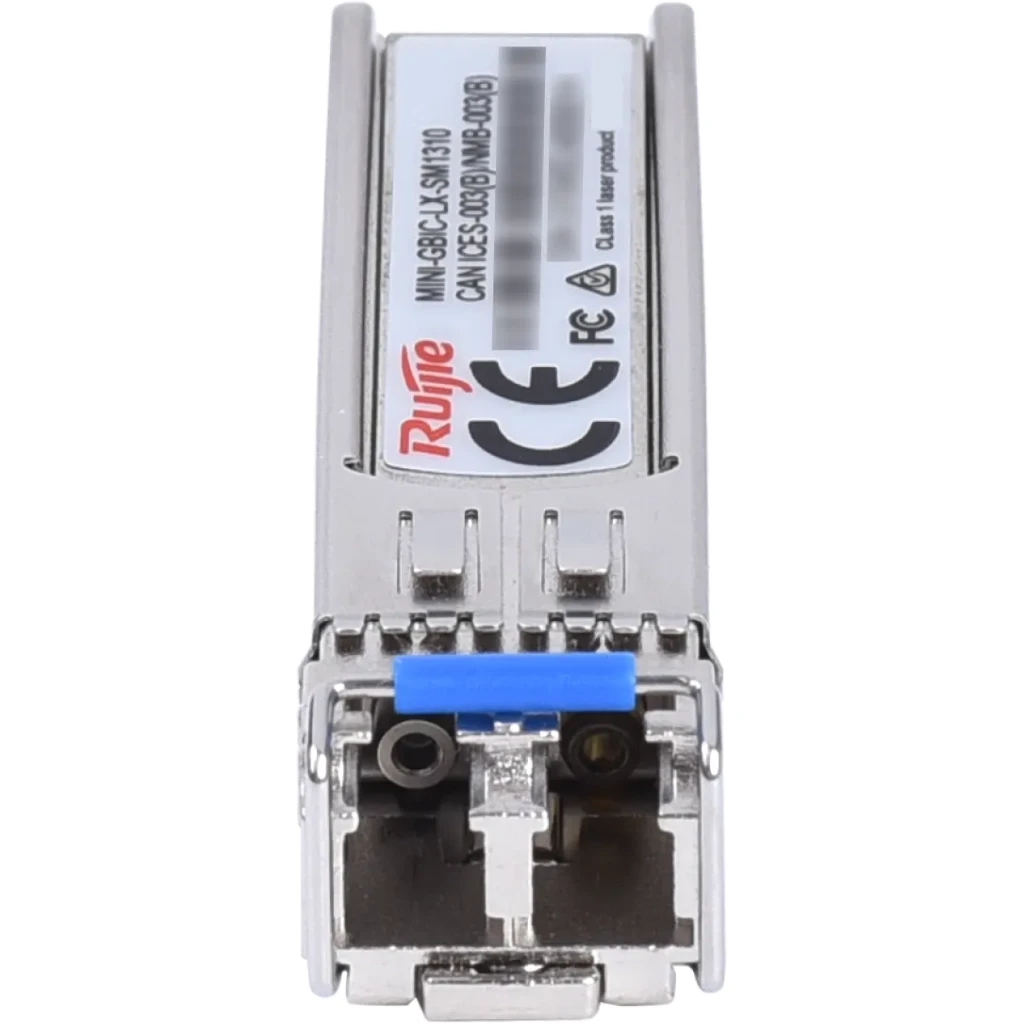

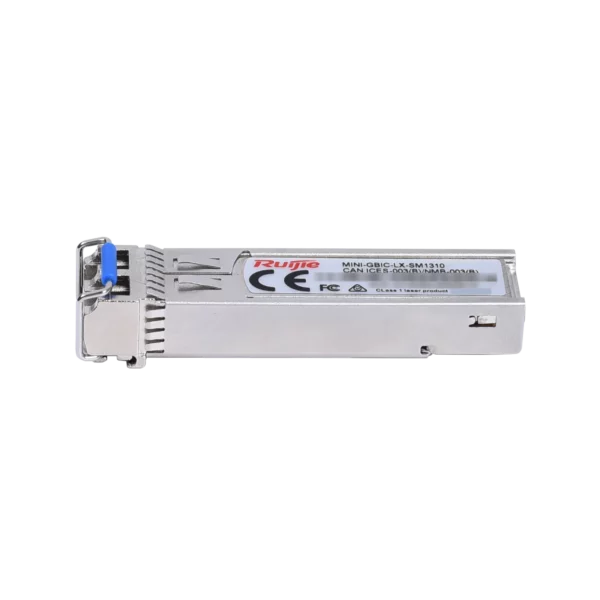

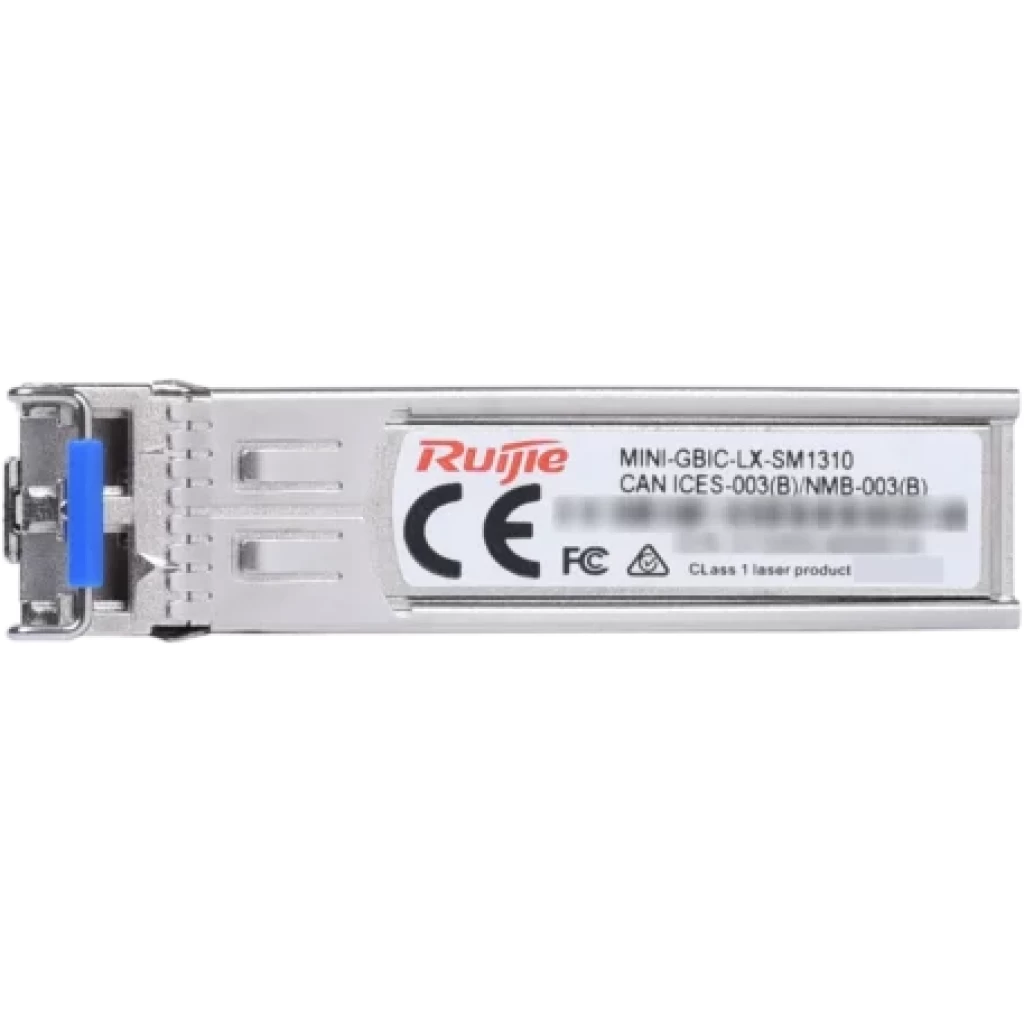

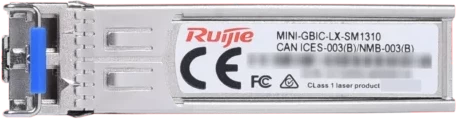

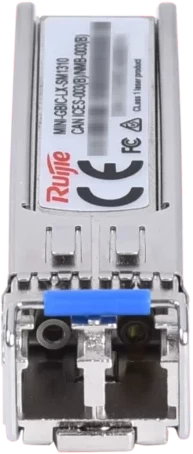

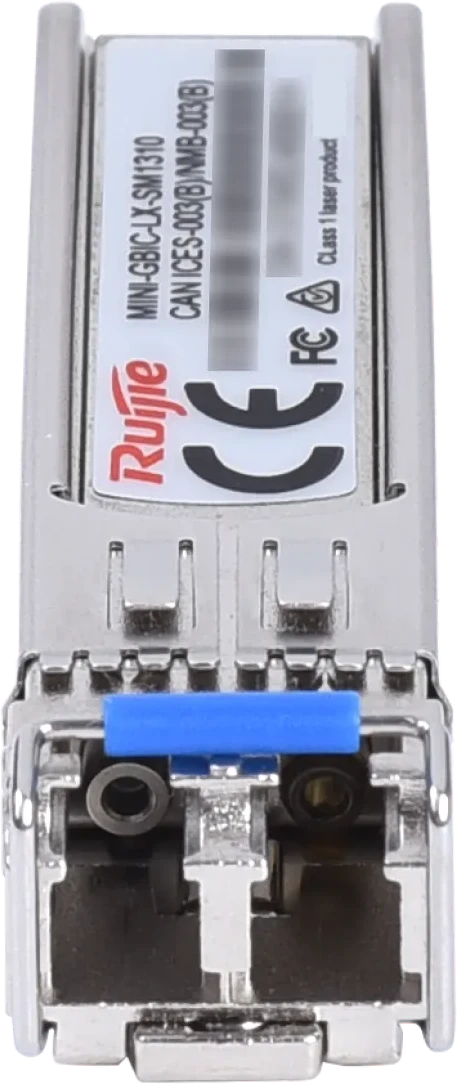

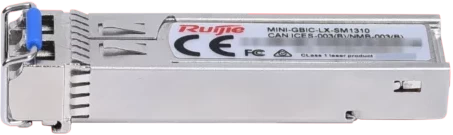

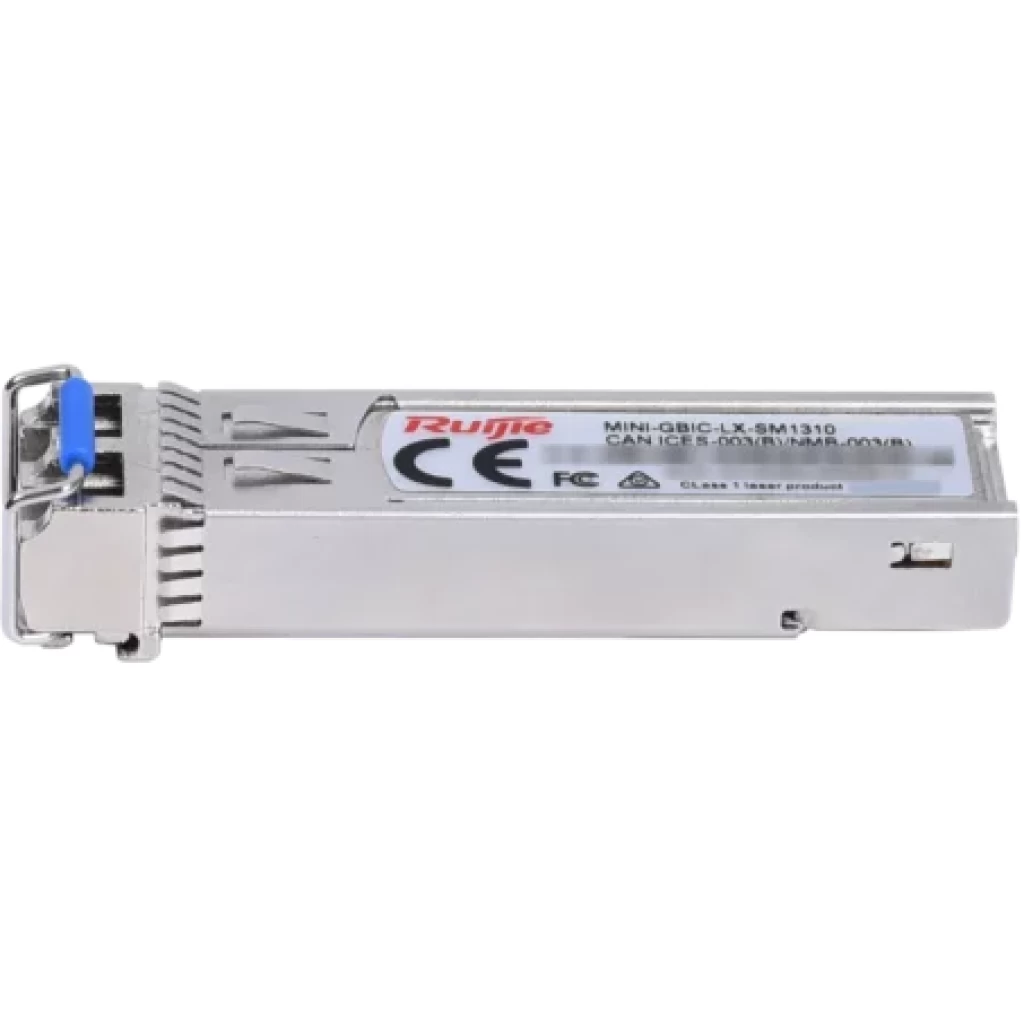

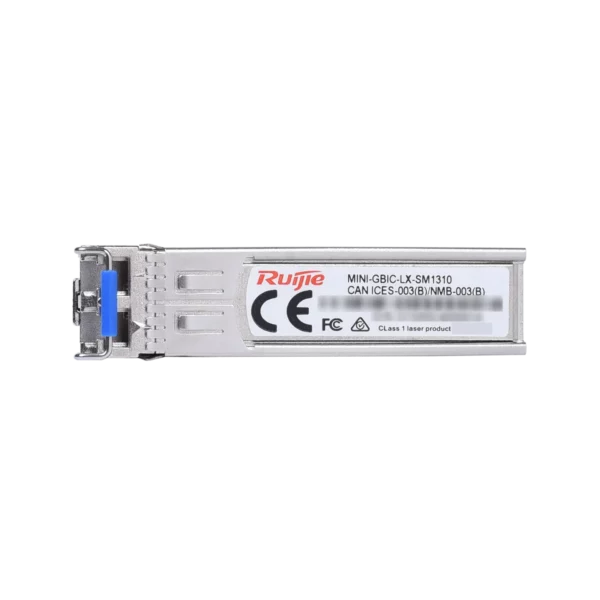

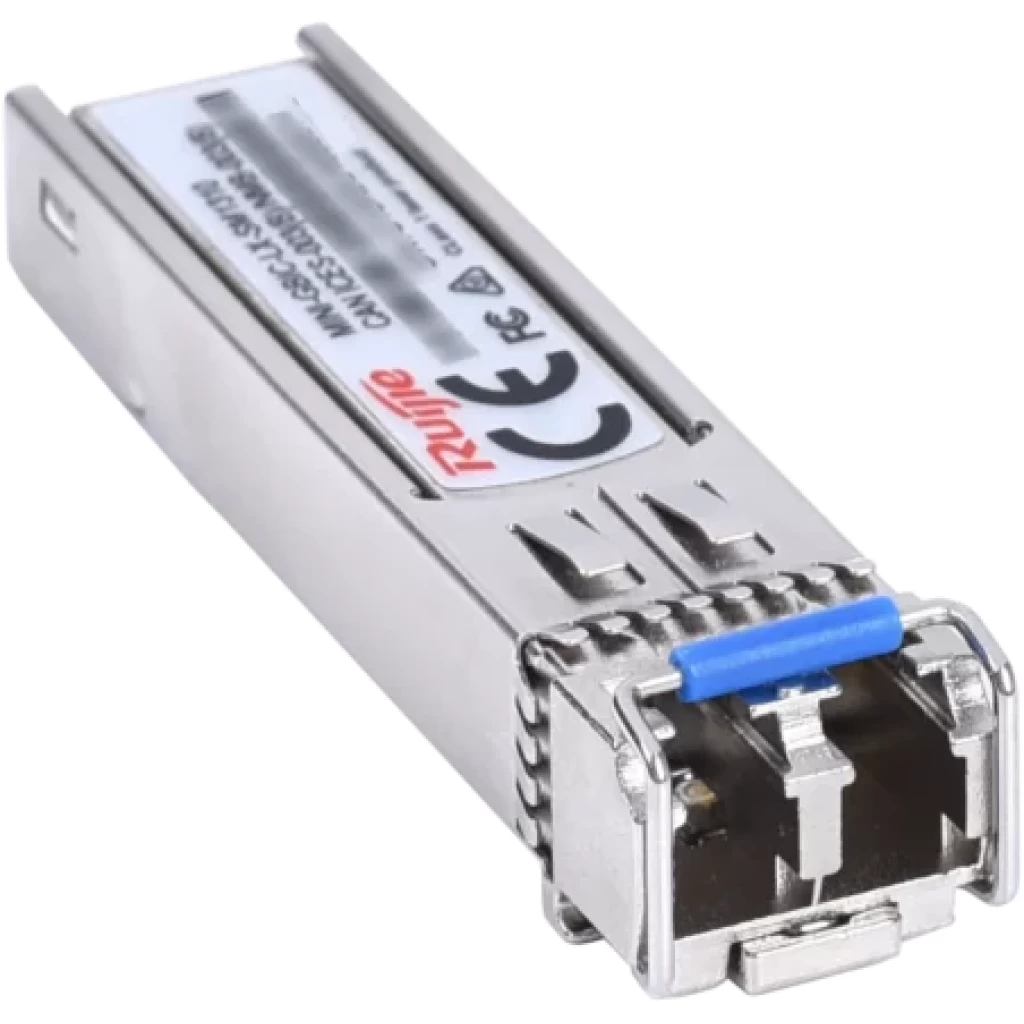

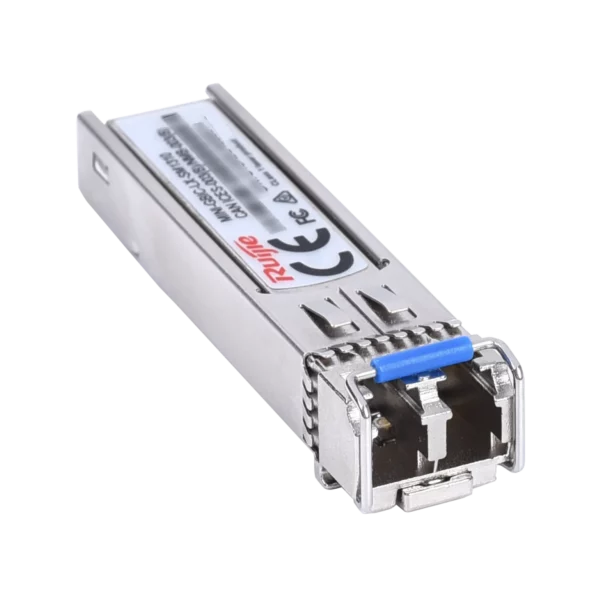

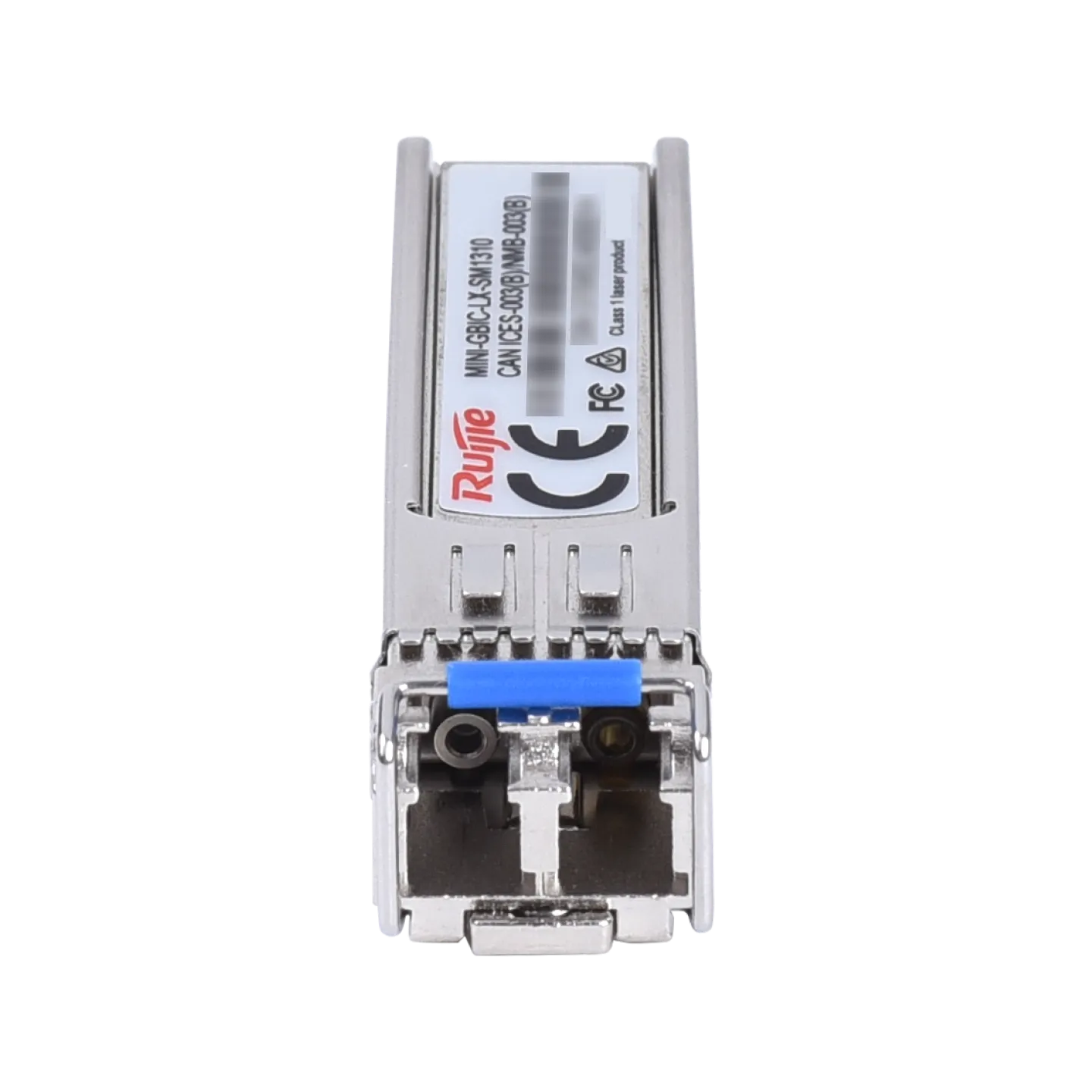

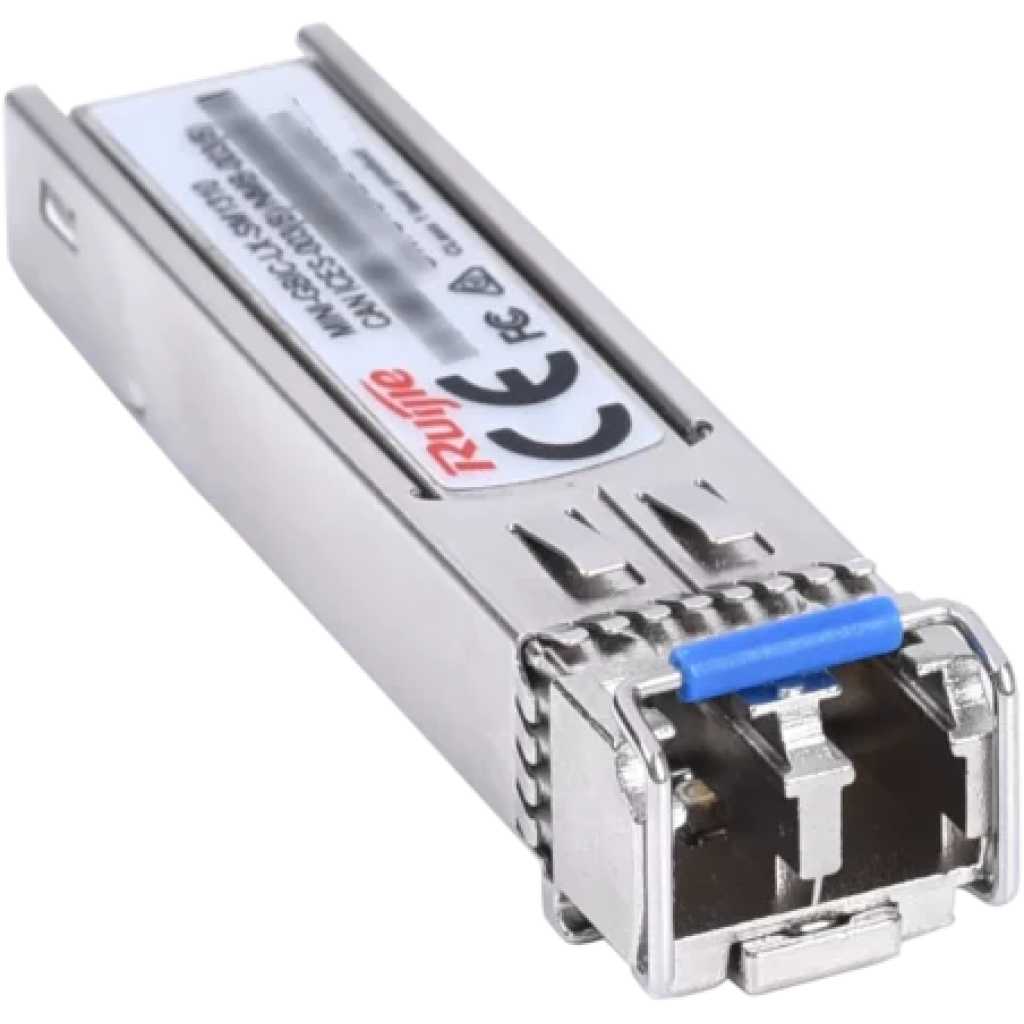

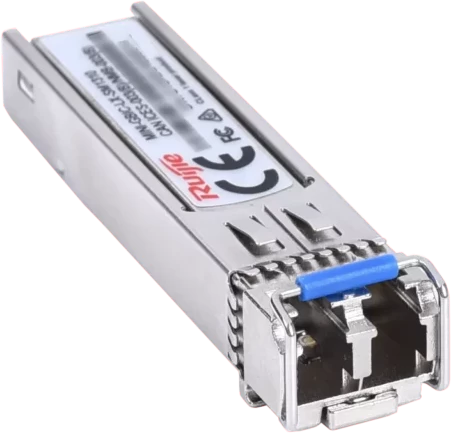

Ruijie MINI-GBIC-LX-SM1310 1G SFP 1310nm 10km Single-Mode Fiber Transceiver Module

The Ruijie MINI-GBIC-LX-SM1310 1000BASE-LX SFP Transceiver is a highly reliable and efficient module designed to meet the growing demands of modern network infrastructure. As organizations strive to enhance their network capabilities, the need for high-performance, cost-effective, and easy-to-manage transceivers has become paramount. The MINI-GBIC-LX-SM1310 stands out as a top-tier choice for those seeking to optimize their network’s fiber optic connections.

This transceiver is tailored for long-range communication over single-mode fiber (SMF), supporting distances of up to 10 kilometers. It operates at a wavelength of 1310 nm, ensuring stable and robust data transmission, which is crucial for maintaining the integrity and performance of your network. The module is fully compliant with IEEE 802.3z 1000BASE-LX standards, making it an ideal solution for enterprise networks, data centers, and service provider environments.

Unmatched Performance and Reliability The MINI-GBIC-LX-SM1310 is engineered to deliver exceptional performance, with a data rate of 1.25 Gbps. This high-speed data transfer capability is essential for applications requiring rapid and reliable communication, such as video streaming, online collaboration, and large-scale data transfers. The transceiver’s design includes advanced features that ensure consistent performance, even under demanding conditions.

One of the key benefits of the MINI-GBIC-LX-SM1310 is its low power consumption. Rated at less than 1.5 W, this transceiver is an energy-efficient option that helps reduce operational costs without compromising on performance. Additionally, the transceiver is equipped with digital optical monitoring (DOM) capabilities, which provide real-time diagnostic information, enabling network administrators to monitor and manage the network more effectively.

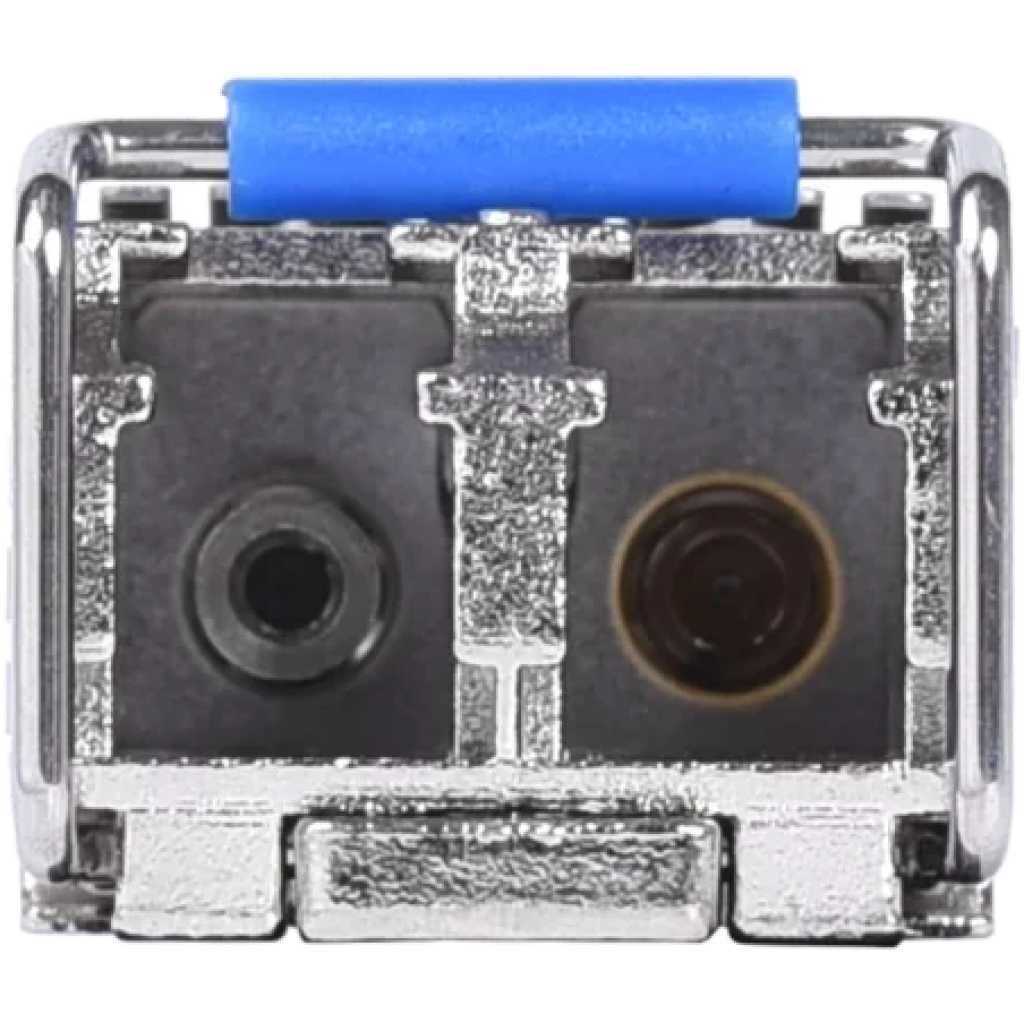

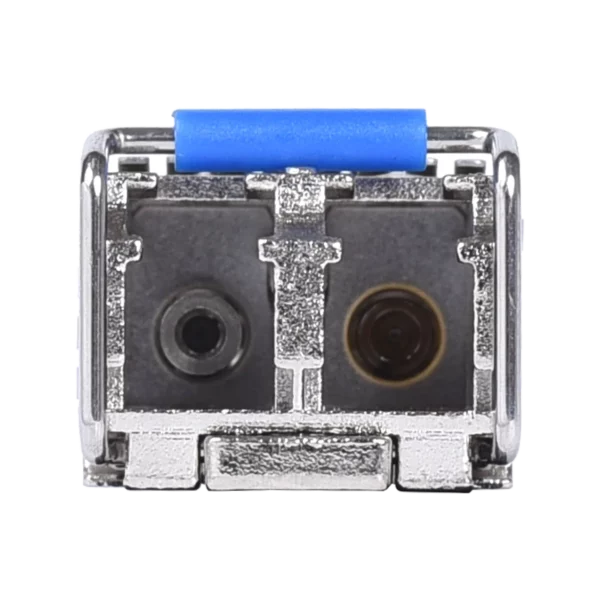

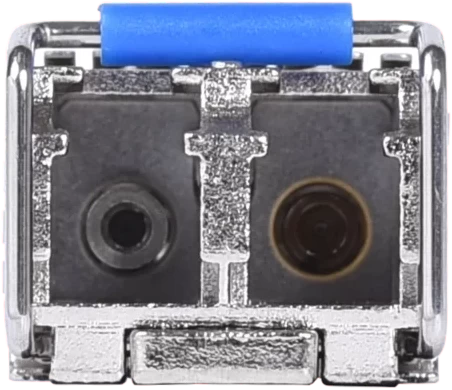

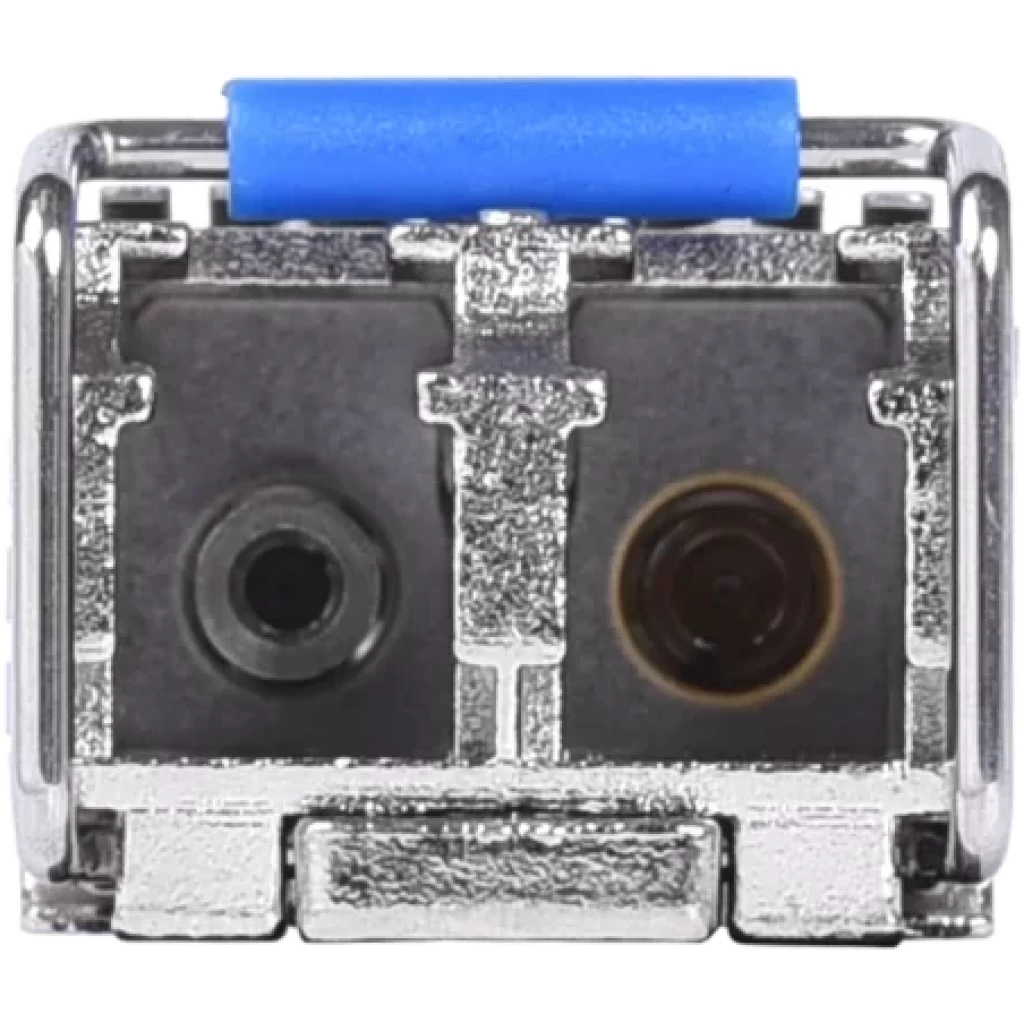

Ease of Installation and Maintenance The MINI-GBIC-LX-SM1310 is designed for ease of use, featuring a hot-pluggable SFP form factor. This means that the transceiver can be installed or replaced without shutting down the system, minimizing downtime and allowing for seamless network upgrades. The Duplex LC connector ensures a secure and stable connection, further enhancing the module’s reliability.

Compatibility is another strong point of the MINI-GBIC-LX-SM1310. It is designed to work seamlessly with a wide range of network equipment, including switches, routers, and network interface cards (NICs). This broad compatibility makes it a versatile solution that can be integrated into various network architectures, whether you are expanding an existing network or building a new one from scratch.

Applications The MINI-GBIC-LX-SM1310 is ideal for a variety of network environments. Its long reach and high-speed capabilities make it perfect for interconnecting network devices across large campuses, linking data centers, or extending network connections in metropolitan areas. The transceiver is also well-suited for use in point-to-point and point-to-multipoint configurations, providing flexible connectivity options to meet the needs of your specific network setup.

Safety and Compliance Safety and regulatory compliance are critical factors in choosing network equipment. The MINI-GBIC-LX-SM1310 meets all relevant industry standards, including Class 1 Laser safety and RoHS compliance. This ensures that the transceiver is safe to use in a variety of environments and adheres to environmental regulations, making it a responsible choice for organizations committed to sustainability.

Conclusion The Ruijie MINI-GBIC-LX-SM1310 1000BASE-LX SFP Transceiver is a powerful and reliable solution for modern networks. Its high performance, energy efficiency, and ease of use make it an excellent choice for any organization looking to enhance its network infrastructure. Whether you are upgrading an existing network or deploying a new one, the MINI-GBIC-LX-SM1310 offers the features and capabilities you need to ensure smooth, efficient, and reliable network operation.

Technical Specifications:

• Model: MINI-GBIC-LX-SM1310
• Data Rate: 1.25 Gbps
• Form Factor: SFP
• Connector Type: Duplex LC
• Cable Type: Single-mode Fiber (SMF)
• Wavelength: 1310 nm
• Maximum Reach: 10 km
• Power Consumption: ≤ 1.5 W
• Digital Optical Monitoring (DOM): Yes
• Compliance: IEEE 802.3z, SFP MSA, RoHS
• Transmit Power (Max): -3 dBm
• Transmit Power (Min): -11 dBm
• Receiver Type: PIN
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
