Tropical Dual Inverter Compressor™LG’s Tropical Dual Inverter Compressor™ that works even at 65℃ With the 10year warranty on the compressor, users can enjoy the benefits of LG air conditioner for a longer period of time.
Dual Inverter Compressor™
A compressor with a wider rotational frequency saves more energy and has a faster cooling range
10 Year Warranty
Verification obtained from TUV Rheinland for 10-year product life cycle
TUV Rheinland
TUV Rheinland, Verification on Fast Cooling & Power Saving Rate(aS-b246KcBd, BS-x186Kyb3)
-
Fast Cooling & Energy SavingInverter Compressor constantly adjusts a compressor’s speed to maintain desired temperature levels. Moreover, Dual Inverter Compressor™ with power saving operation range frequency saves more energy than conventional compressor. Thanks to the Dual Inverter compressor, air is expelled farther and faster.
-
Low NoiseLG air conditioners operate at low sound levels, thanks to LG’s unique skew fan and Dual Inverter Compressor™ which eliminate unnecessary noise and allow for smooth operation.Watch the Full Movie
-
Precise temperature controlThe Compressor speed of LG Dual Inverter Compressor™ is constantly adjusted and varied to maintain the desired temperature with minimal fluctuation.
-
4Way SwingLG air conditioners deliver cool air to every corner of your room. The 4 way swing function blows the air quickly and efficiently in many direction.
Vertical 6 Steps Louver Control
Users can choose the vane direction among 6 preset positions to meet the exact wind blow direction you desire.
Horizontal 5 steps Louver Control
Direction of vertical louver can be adjusted from step 1 to 5, left & right, with full auto swing. This function also allows the air conditioner to cool specific areas in only a short period of time.
Comfort Sleep
Avail the utmost comfort sleep environment by automatically adjusting 3 different functions(Indirect airflow/7hr off time set/Soft wind & sleep time logic), with the simple click of button.
Gold Fin™
The Gold Fin™ ensures that the surface is more resistant to corrosion and enhances the durability of heat exchanger for a much longer period.
Auto Cleaning
It prevents forming of bacteria & mold on the heat exchanger. Thus provides a pleasant environment.
Dual Protection Filter
The Dual Protection Filter captures dust size over 10㎛ and bacteria.
Silent Mode
LG’s unique new skew fan & low vibration compressor technology achieve world’s lowest sound levels.

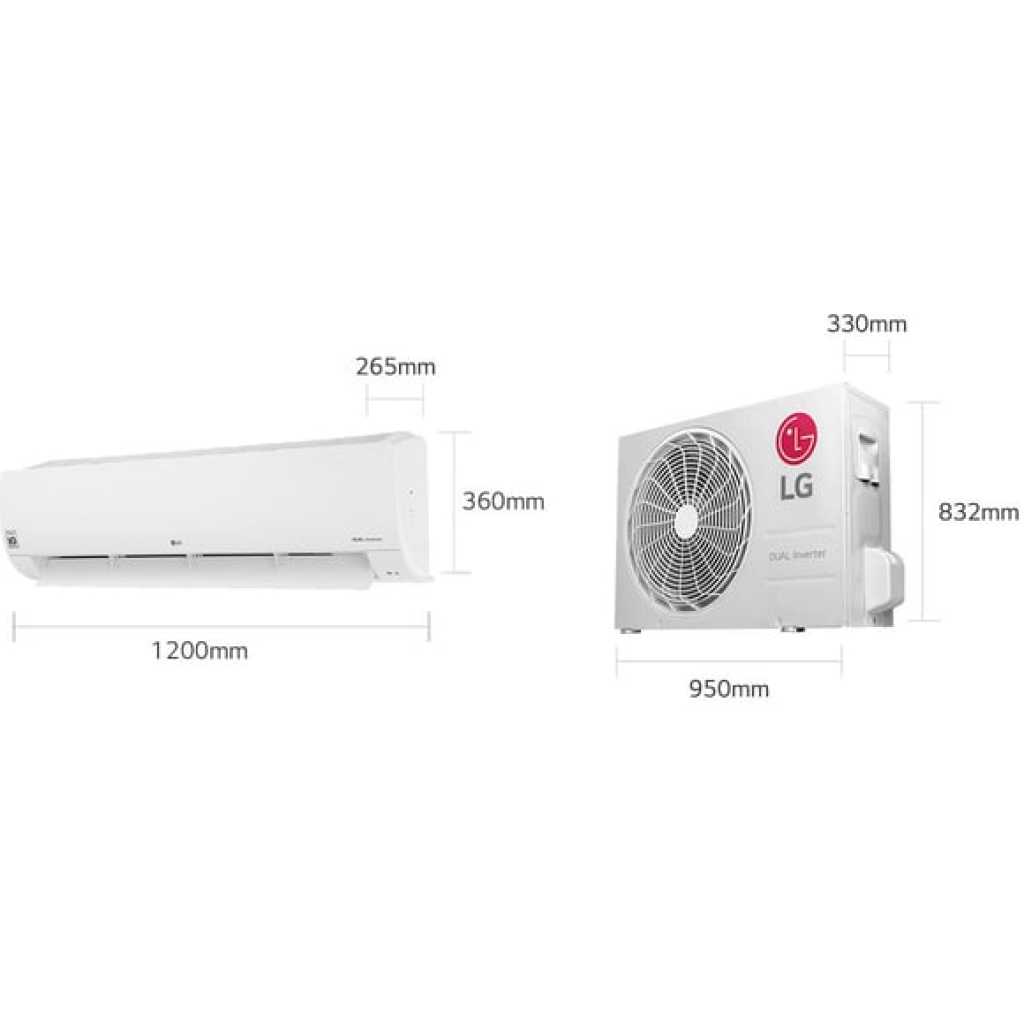

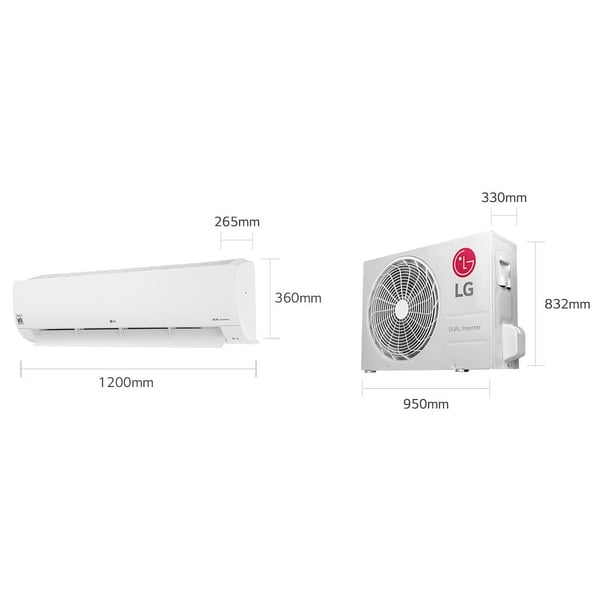

Dimensions
Close
CAPACITY
-
Cooling – Min ~ Rated ~ Max(kW)1.77/9.10/11.13Cooling – Min ~ Rated ~ Max(Btu/h)6,035/31,000/38,000
-
Cooling (T3) – Min ~ Rated ~ Max(kW)3.21/7.77/8.79Cooling (T3) – Min ~ Rated ~ Max(Btu/h)10,940/26,500/30,000
POWER INPUT
-
Cooling – Min ~ Rated ~ Max(W)529/2,520/3,990Cooling (T3) – Min ~ Rated ~ Max(W)1,490/3,050/3,990
RUNNING CURRENT
-
Cooling – Min ~ Rated ~ Max(A)3.82/11.60/17.00Cooling (T3) – Min ~ Rated ~ Max(A)6.66/14.00/17.00
EER
-
EER(W/W)3.61EER((Btu/h)/W)12.25
EER(T3)
-
EER (T3)(W/W)2.55EER (T3)((Btu/h)/W)8.69
ENERGY LABEL GRADE
-
Cooling5
POWER SUPPLY
-
Ø / V / Hz1 , 220 ~ 240 ,50
AVAILABLE VOLTAGE RANGE
-
Available Voltage Range(V)187 ~ 276
POWER FACTOR
-
Cooling(%)94.4
MOISTURE REMOVAL
-
Moisture Removal(l/h)1.49
INDOOR
-
Air Flow Rate – Cooling, Max / H / M / L(㎥/min)32/25/21/17Sound Pressure Level – Cooling, Max / H / M / L / SL(dB(A))52/47/43/34
-
Dimensions (W × H × D) – Net(mm)1200 x 360 x 265Dimensions (W × H × D) – Shipping(mm)1280 x 455 x 357
-
Weight – Net(kg)18.5Weight – Shipping(kg)22.2
-
Exterior Color CodeMunsell 7.5BG 10/2 (RAL 9016)
OUTDOOR
-
Air Flow Rate – Max(㎥/min)71.0Sound Pressure Level – Cooling, Rated(dB(A))58
-
Dimensions (W × H × D) – Net(mm)950 x 832 x 330Dimensions (W × H × D) – Shipping(mm)1130 x 908 x 456
-
Weight – Net(kg)63.9Weight – Shipping(kg)69.4
-
Max. Fuse Size(A)25Exterior Color CodeMunsell 9.54Y 8.34/1.31
-
Operation Range – Cooling(℃ DB)18 ~ 54
CIRCUIT BREAKER
-
Circuit Breaker(A)25
POWER SUPPLY CABLE
-
Power Supply Cable (No. × ㎟)3 x 2.5
POWER SUPPLY TO UNIT
-
Power Supply to UnitOutdoor
POWER AND COMMUNICATION CABLE
-
Power and Communication Cable(No. × ㎟)4 x 1
PIPING
-
Size – Liquid(mm)Ø 9.52Size – Gas(mm)Ø 15.88
-
Connections Method – Indoor / OutdoorFlared/Flared
DRAIN HOSE SIZE
-
O.D, I.D(mm)20, 15
BETWEEN INDOOR & OUTDOOR
-
Piping Length – Min / Standard / Max(m)5/7.5/30Piping Length – No Charge(m)7.5
-
Max. Elevation Difference(m)25Piping Connection Heat InsulationBoth liquid and Gas Pipes
REFRIGERANT
-
TypeR410APre Charge(g)2400
-
Additional Charge(g/m)30ControlElectronic Expansion Valve
TOOL CODE(CHASSIS)
-
Indoor / OutdoorSR/U4
COMPRESSOR
-
TypeTwin RotaryModelGPT330MAB
-
Motor TypeBLDCOil Type / MakerPVE (FVC68D)/IDEMITSU
-
Oil Charge (cc)1300Manufacturer / Country of OriginLG Electronics/Korea
FAN(INDOOR)
-
TypeCross Flow FanMotor Output (W)113.1
FAN(OUTDOOR)
-
TypePropeller FanMotor Output (W)124
-
Motor InsulationClass EMotor Enclosure / Ingress ProtectionTEAO/IPX4
HEAT EXCHANGER
-
Evaporator – Material, Tube / FinCu/AlEvaporator – Corrosion ProtectionPCM
-
Condenser – Material, Tube / FinCu/AlCondenser – Corrosion ProtectionGold
-
Condenser – Fin TypeLouver
