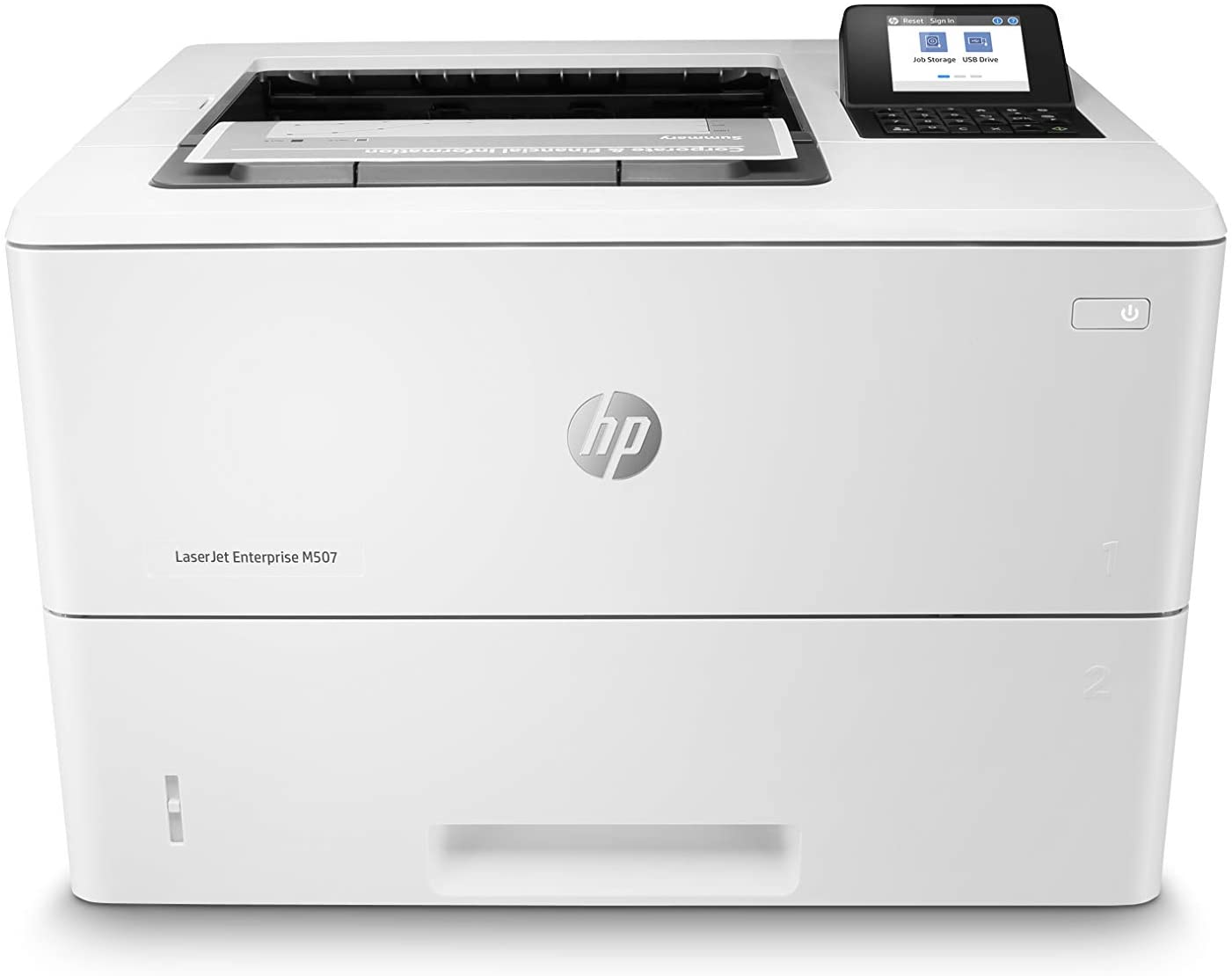

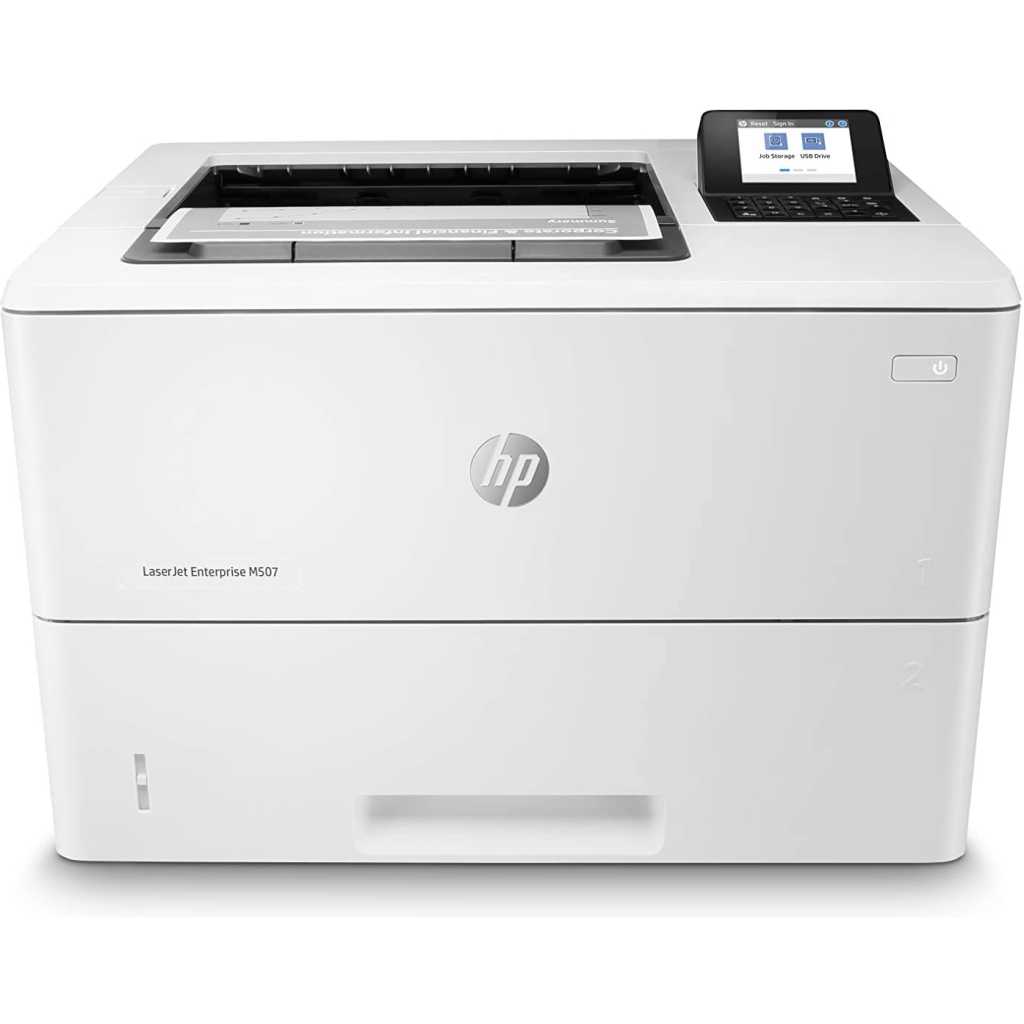

HP LaserJet Enterprise M507dn Monochrome Printer with built-in Ethernet & 2-sided printing
Specifications
| Sku | |
|---|---|
| Sku | 1PV87A |
| Print speed, black | 41 – 50 |
| Color output | Black and white |
| Category | |
| Product type | Laser printers |
| Family brand | LaserJet Enterprise |
| Usage | |
| Perfect For | Enterprise |
| Connectivity and Communications | |
| Connectivity, optional | Yes, via HP Jetdirect Ethernet embedded print server (standard) which supports: 10Base-T, 100Base-Tx, 1000Base-T; 802.3az (EEE) support on Fast Ethernet and Gig Links; IPsec (standard); 802.11a/b/g/n wireless networking (optional); second Ethernet port (optional). |

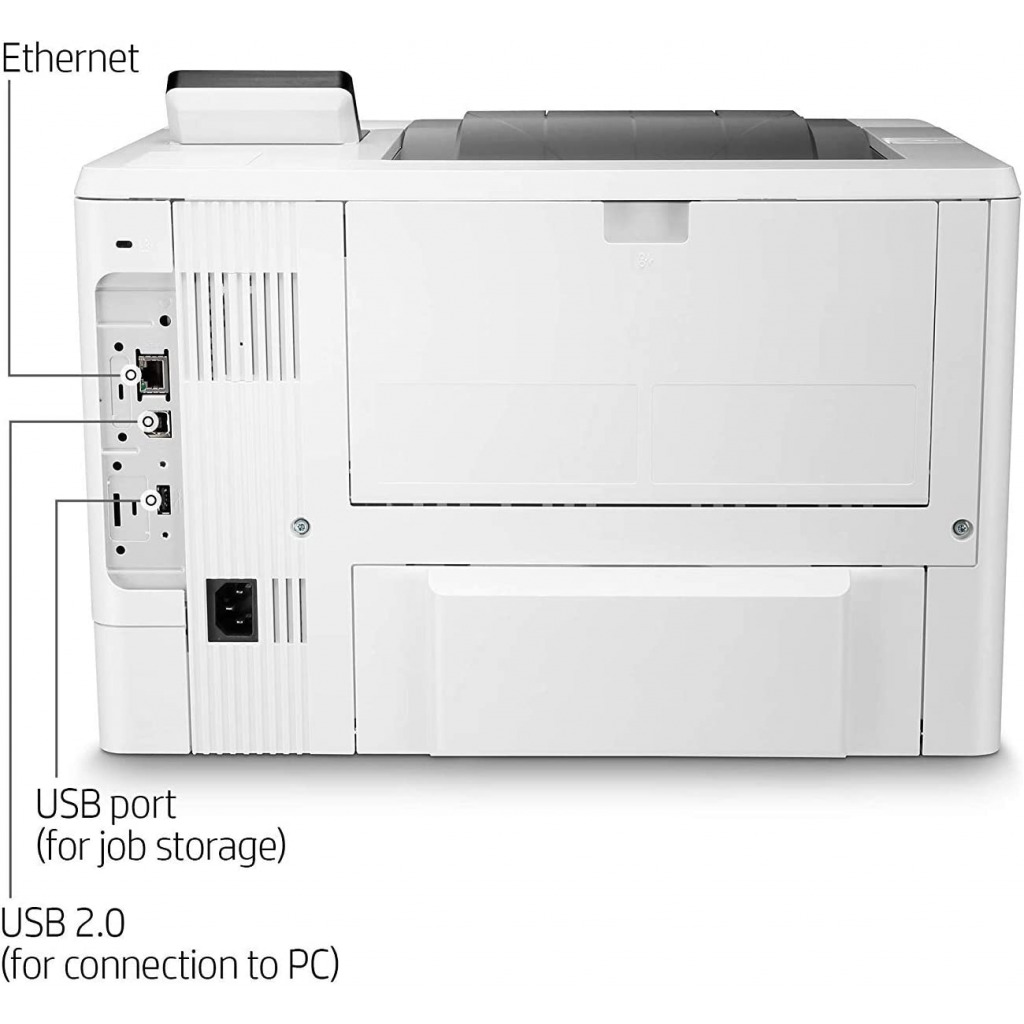

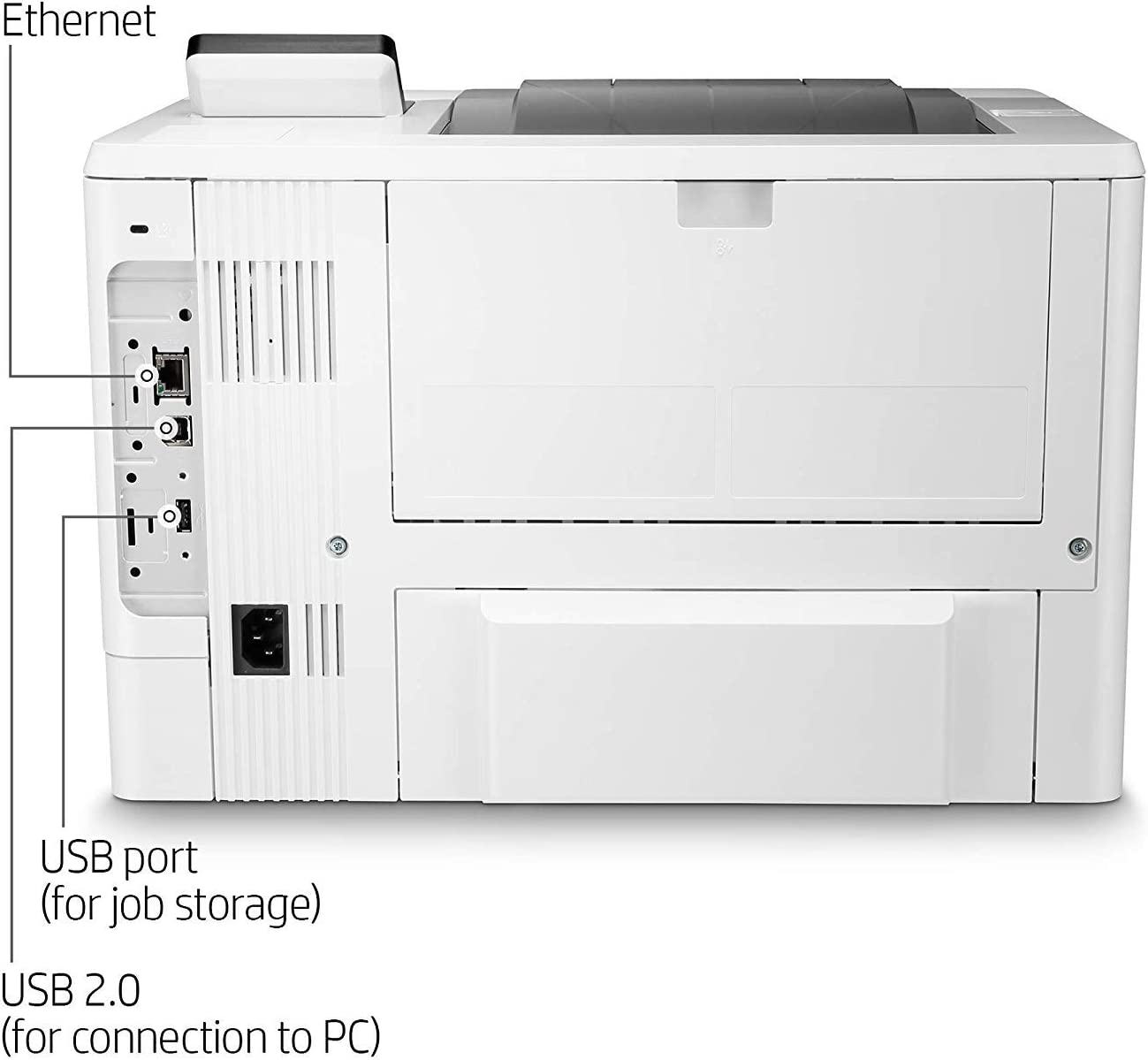

| Connectivity, standard | 1 Hi-Speed Device USB 2.0; 2 Hi-Speed USB 2.0 Host; 1 Gigabit Ethernet; 1 Hardware Integration Pocket |
| Network capabilities | HP Jetdirect 2900nw Print Server J8031A |
| Wireless capability | Optional, enabled with purchase of a wireless hardware accessory. Dual band Wireless Station functionality available with HP Jetdirect 2900nw Print Server J8031A |
| Mobile printing capability | Apple AirPrint™; Google Cloud Print™; HP ePrint; Mopria™ Certified; ROAM capable for easy printing |
| Network protocols, supported | Via built-in networking solution: TCP/IP, IPv4, IPv6; Print: TCP-IP port 9100 Direct Mode, LPD (raw queue support only), Web Services Printing, IPP 2.0, Apple AirPrint™, HP ePrint, FTP Print, Google Cloud Print; Discovery: SLP, Bonjour, Web Services Discovery; IP Config: IPv4 (BootP, DHCP, AutoIP, Manual, TFTP Config, ARP-Ping), IPv6 (Stateless Link-Local and via Router, Stateful via DHCPv6); Management: SNMPv2/v3, HTTP/HTTPs, Telnet, TFTP Config, Syslog; Security: SNMPv3, SSL Cert Management, IPSec/Firewall, ACL, 802.1x |
| Plug and play | HP Smart Install |
| Printing Media Handling | |
| Finished output handling | Sheetfed |
| Output capacity | Up to 250 sheets |
| Maximum output capacity (sheets) | Up to 250 sheets |
| Media type and capacity, tray 3 | Sheets: 550 |
| Standard output capacity (transparencies) | Up to 75 sheets |
| Media type and capacity, tray 1 | Sheets: 100; Transparencies: 50; Envelopes: 10 |
| Media type and capacity, tray 2 | Sheets: 550 |
| Paper handling input, standard | 100-sheet multipurpose Tray 1, 550-sheet input Tray 2, automatic duplex printing |
| Paper handling input, optional | Up to 3 optional 550-sheet paper feeders |
| Input capacity | Up to 650 sheets |
| Paper handling output, standard | 250-sheet output bin |
| Standard output capacity (envelopes) | Up to 10 envelopes |
| Maximum input capacity (sheets) | Up to 2300 sheets |
| Standard input capacity (envelopes) | Up to 10 |
| Display Specifications | |
| Display HP | 2.7-in (6.86 cm) QVGA LCD (color graphics) |
| Display area (metric) | 54 x 40.5 mm |
| Environmental | |
| Acoustic pressure emissions bystander (active, printing) | 55 dB(A) |
| Operating humidity range | 10 to 80% RH |
| Storage temperature range | -20 to 40°C |
| Operating temperature range | 10 to 32.5°C |
| Acoustic power emissions | 6.9 B(A) |
| Recommended operating temperature range | 15 to 27°C |
| Acoustic power emissions (ready) | 3.9 B(A) |
| Acoustic pressure emissions bystander (ready) | 25 dB(A) |
| Cartridges and Printheads | |
| Technology | Laser |
| Number of print cartridges | 1 (black) |
| Replacement cartridges | HP 89A Black Original LaserJet Toner Cartridge (~5,000 pages) CF289A; HP89X High Yield Black Original LaserJet Toner Cartridge (~10,000 pages) CF289X; HP89Y Extra High Yield Black Original LaserJet Toner Cartridge (~20,000 pages) CF289Y |
| Supplies feature | HP JetIntelligence Cartridge |
| Print Speed | |
| Print speed black (normal, letter) | Up to 45 ppm |
| Print speed black (normal, A4) | Up to 43 ppm |
| Print speed | Print speed up to 45 ppm (black) |
| Print speed duplex (A4) | Up to 34 ipm |
| Print speed black (Landscape, A5) | Up to 65 ppm |
| Print speed duplex (letter) | Up to 36 ipm |
| Battery and Power | |
| Power | Input voltage: 100V to 127V nominal (+/-10%), 50 – 60Hz nominal (+/- 3Hz), 7.5 A; Input voltage: 220V to 240V nominal (+/-10%), 50 – 60Hz nominal (+/- 3Hz), 4 A |
| Power Consumption | 601 (Active Printing) 7.60 (Ready), 2.61 watts (Sleep), 0.06 watts (Auto-Off), 0.06 watts (Off), Auto Off/Wake on LAN 0.73 Watt |
| Power supply type | Built-in 115V or 220V Power Supply |
| Print Time | |
| First page out black (letter, ready) | As fast as 5.9 sec |
| First page out black (A4, ready) | As fast as 5.9 sec |
| First page out black (letter, sleep) | As fast as 10 sec |
| Printer Specifications | |
| Storage device and direct print support | Front-facing USB/Flash drive; USB printing |
| Duty cycle (monthly, letter) | Up to 150,000 pages |
| Duty cycle note | Duty cycle is defined as the maximum number of pages per month of imaged output. This value provides a comparison of product robustness in relation to other HP LaserJet or HP Color LaserJet devices, and enables appropriate deployment of printers and MFPs to satisfy the demands of connected individuals or groups. |
| Envelope feeder | No |
| Functions | |
| Internal Storage | Optional, 500 GB minimum encrypted hard disk drive |
| Print languages | HP PCL 6, HP postscript level 3 emulation, native PDF printing (v 1.7), Apple AirPrint™ |
| Paper trays, maximum | 5 |
| Duty cycle (monthly, A4) | Up to 150,000 pages |
| Paper trays, standard | 2 |
| Recommended monthly page volume | 2,000 to 7,500 |
| Print technology | Laser |
| Duplex printing | Automatic (standard) |
| Fonts and typefaces | 105 internal TrueType fonts scalable in HP PCL, 92 internal scalable fonts in HP postscript Level 3 emulation (Euro symbol built-in); 1 internal Unicode Fonts (Andale Mono World Type);2 Internal Windows Vista 8 Fonts (Calibri, Cambria);additional font solutions available via third-party flash memory cards; HP LaserJet Fonts and IPDS Emulation available at Http://www.hp.com/go/laserjetfonts |
| Automatic paper sensor | No |
| Printer management | HP Printer Assistant; HP Device Toolbox; HP Web JetAdmin Software; HP JetAdvantage Security Manager; HP SNMP Proxy Agent; HP WS Pro Proxy Agent; Printer Administrator Resource Kit for HP Universal Print Driver (Driver Configuration Utility – Driver Deployment Utility – Managed Printing Administrator) |
| Print colours | No |
| Top key features | Front-facing USB printing; Roam; Two-sided printing |
| Target user and print volume | For teams up to 15 users; Prints up to 7,500 pages/month |
| Certification and Compliance | |
| ENERGY STAR® certified | Yes |
| Energy Efficiency Compliance | Blue Angel; CECP; EPEAT® Gold; ENERGY STAR® qualified |
| Electromagnetic Emission Standard | CISPR 22:2008 (International) – Class A, CISPR32:2012 (International) – Class A, EN 55032: 2012 (EU) – Class A, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010, EMC Directive 2014/30/EU, FCC CFR 47 Part 15 Class A/ICES-003, Issue 6 Class A. Other EMC approvals as required by individual countries. |
| Safety Approvals and Requirements | IEC 60950-1:2005 +A1:2009 +A2:2013 (International); EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 (EU); EN 60825-1:2014/IEC 60825-1:2014 (Class 1 Laser Product); EN 62479:2010/IEC 62479:2010; Low Voltage Directive 2014/35/EU with CE Mark (Europe); GS Certificate (Germany, Europe); UL/cUL Listed and UC CoC (US/Canada); CAN/CSA C22.2 No. 60950-1-07 2nd Ed. 2011-12; Compliance with Laser safety standards 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser notice No. 50, Dated June 24, 2007; Other safety approvals as required by individual countries. |
| Environmental | Mercury free |
| Blue Angel compliant | Yes, Blue Angel DE-UZ 205—only ensured when using Original HP supplies |
| FCC Class A Emissions | FCC Class A emissions – for use in commercial environments, not residential environments |
| Geographic | |
| Country of origin | Made in Philippines; Made in Japan (201, AAZ); Made in Brazil (696, 697, AC8) |
| Warranty | |
| Warranty | Three-year, next-business day, onsite warranty. Warranty and support options vary by product, country and local legal requirements. Contact your Contractual Vendor or go to hp.com/support to learn about HP award winning service and support options in your region. (wty code 4G; wty ID A001) |
| Memory | |
| Memory slots | 1 slot, 90-pin DDR3 Slim DIMM |
| Memory upgrade | Expandable to 1.5 GB through one 90-pin SlimDIMM accessory |
| Memory | 512 MB |
| Memory, maximum | 1.5 GB MAX memory, when Accessory DIMM is installed |
| Dimensions | |

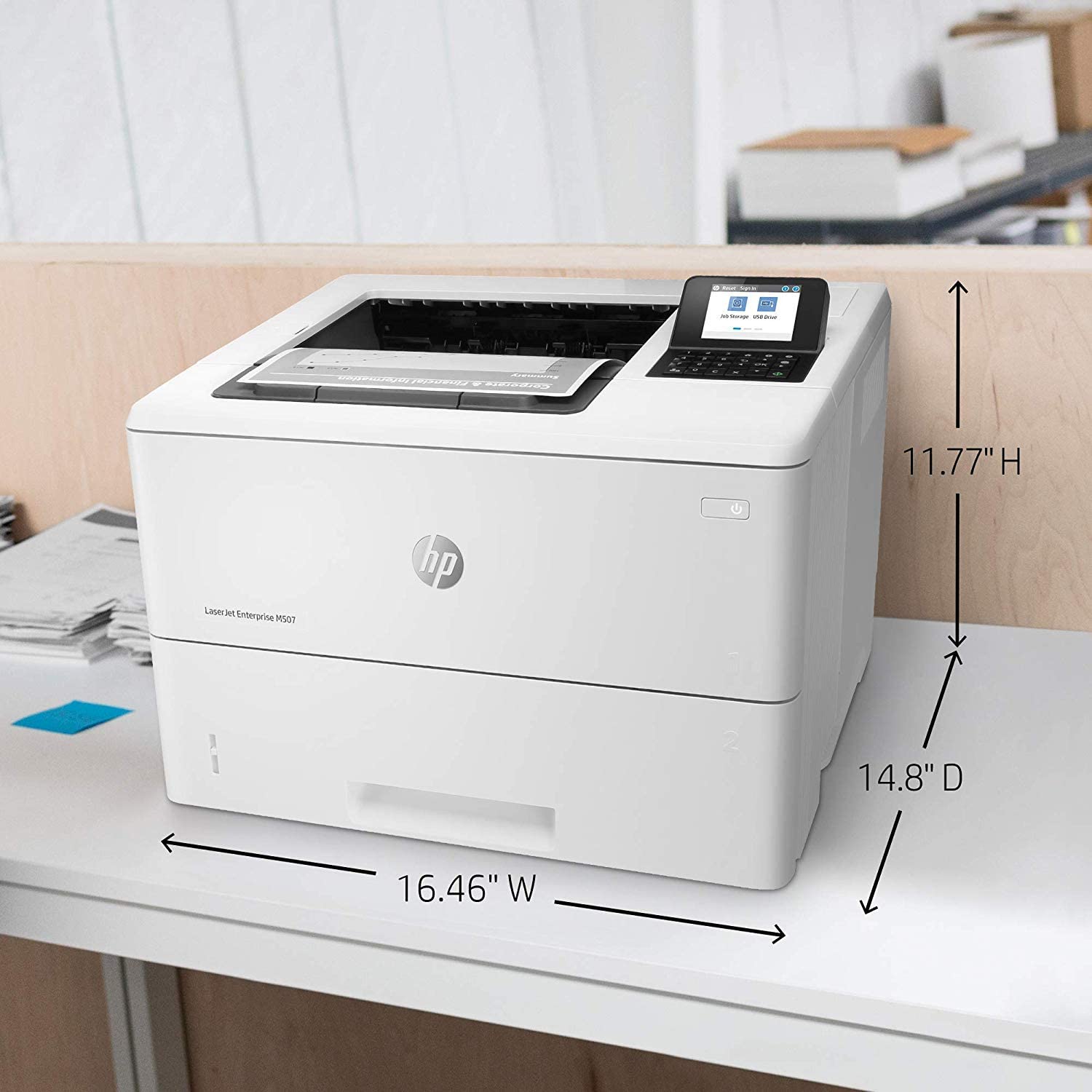

| Dimensions without stand (W x D x H) | 418 x 376 x 299 mm |
| Package dimensions (W x D x H) | 497 x 398 x 466 mm |
| Maximum dimensions (W x D x H) | 418 x 639 x 299 mm |
| Weights | |
| Weight | 11.48 kg |
| Package weight | 14.3 kg |
| Weight note (metric) | With print cartridges |
| System Components | |

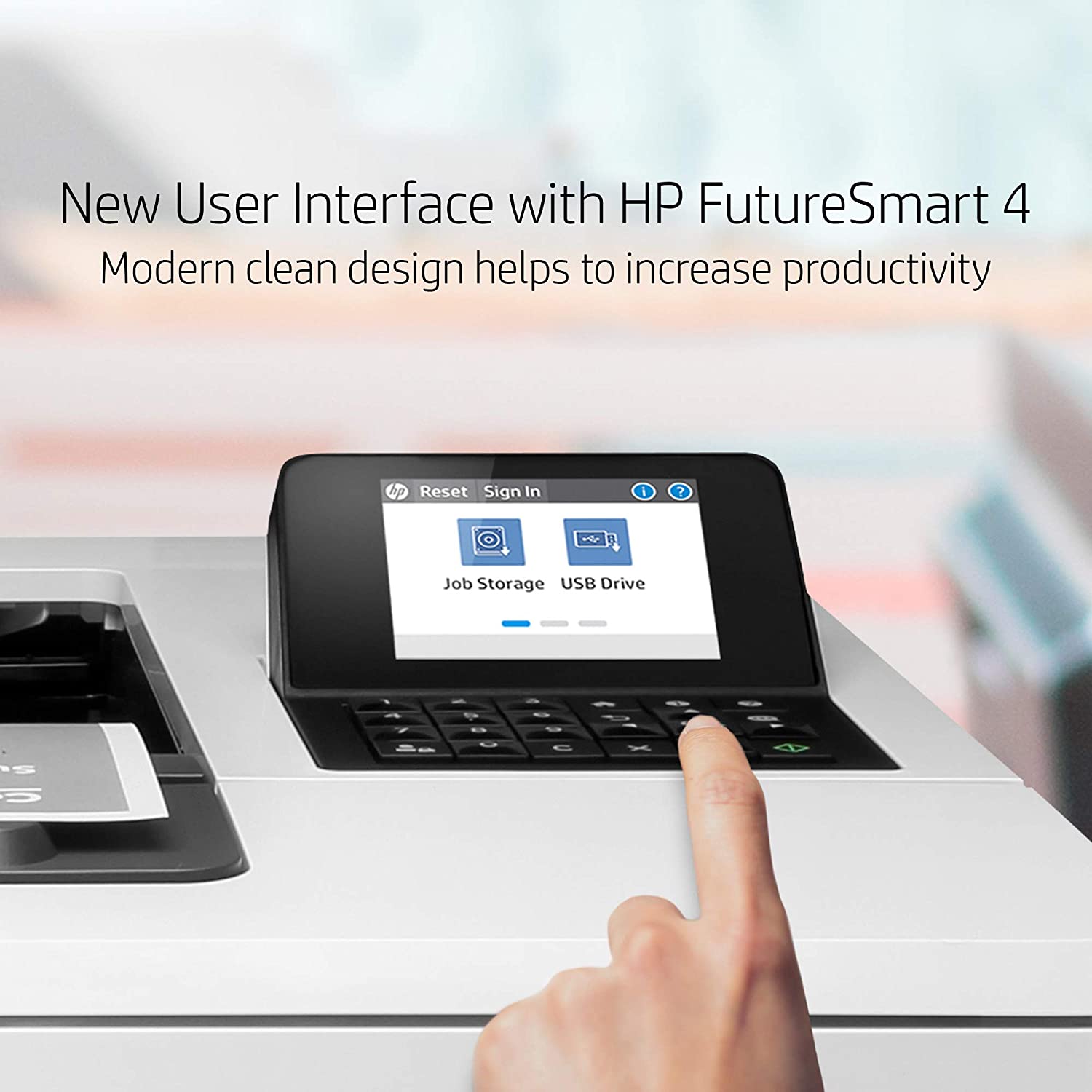

| Control panel | 2.7-in (6.86 cm) QVGA LCD (color graphics) display with 24-key pad |
| Processor | |
| Processor speed | 1.2 GHz |

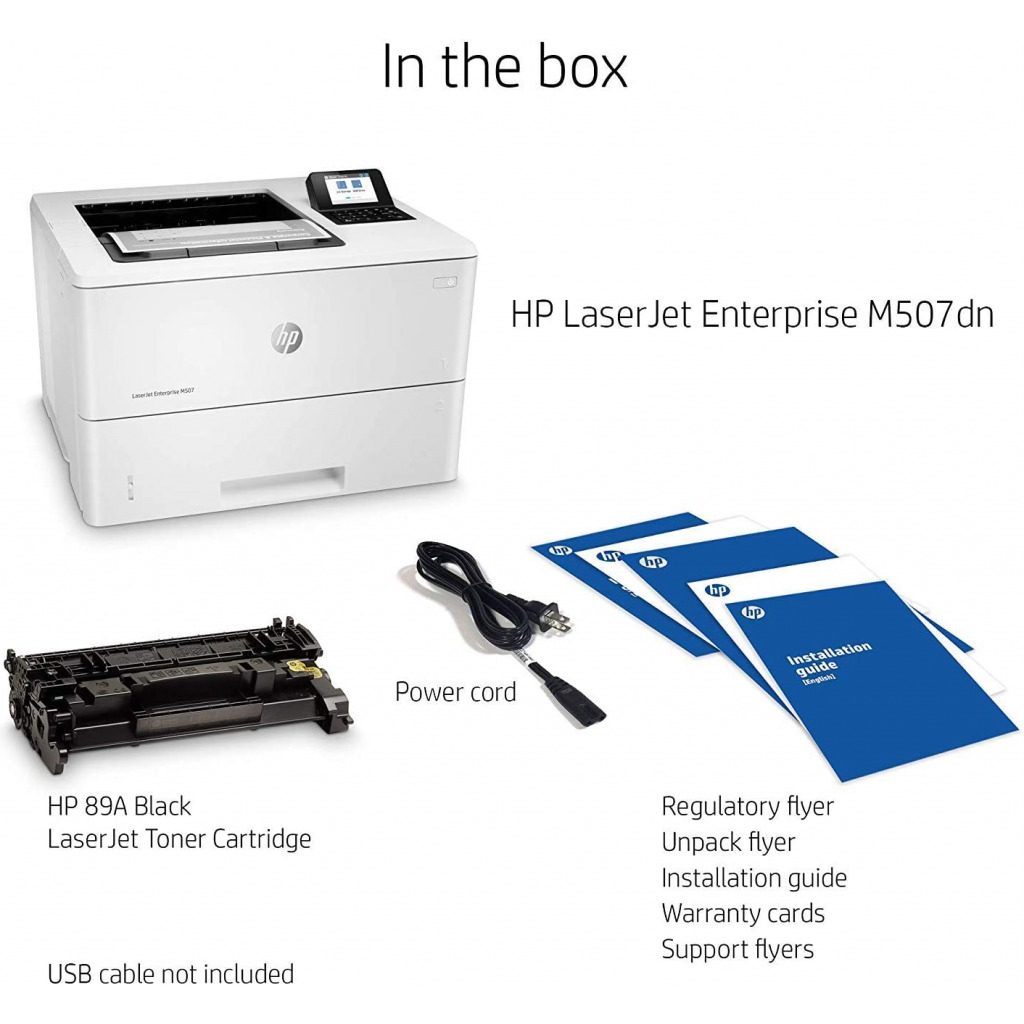

| Box contents | |

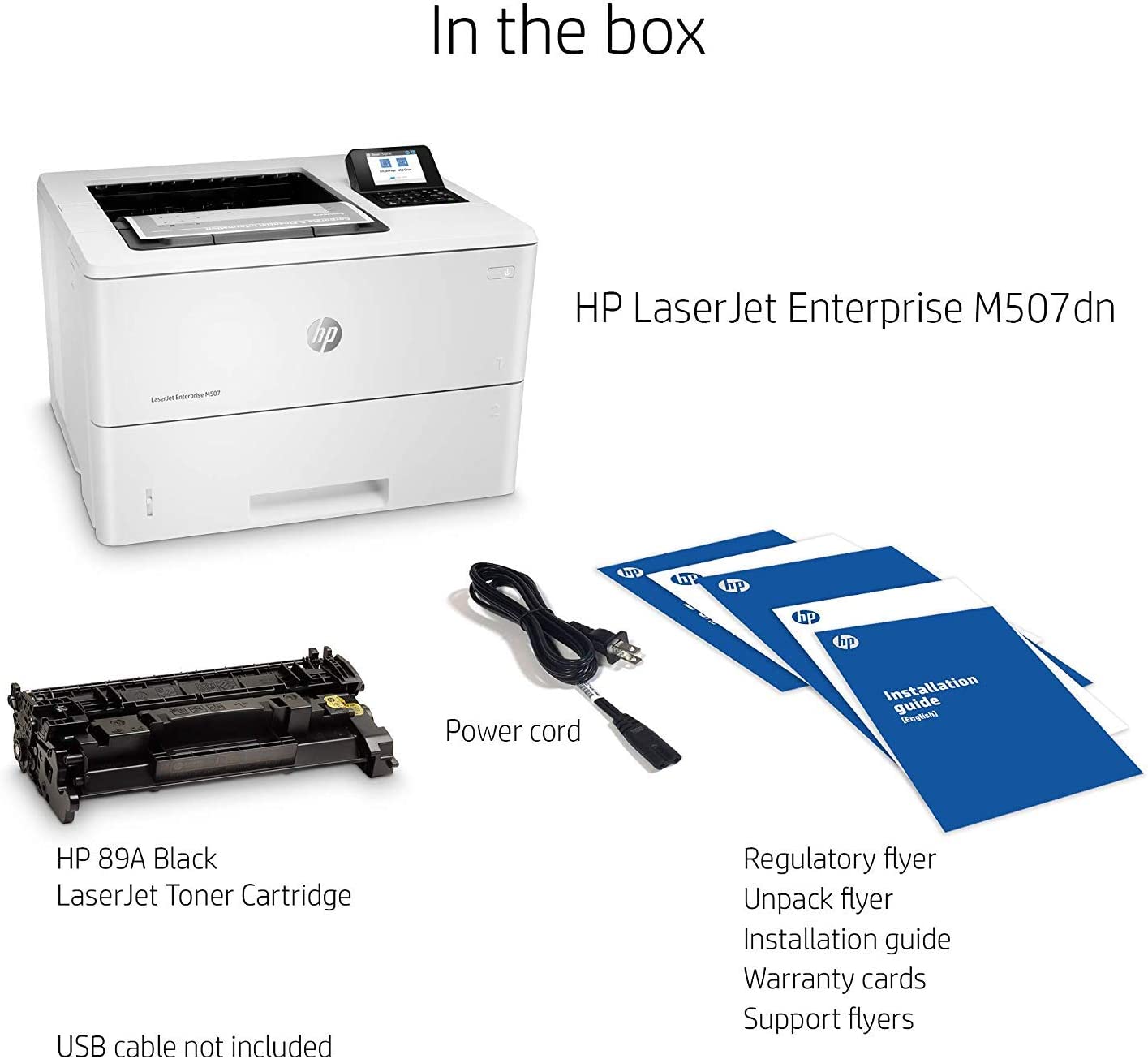

| Cable included | No, please purchase USB cable separately; Yes, 1 USB (APJ region Only) |
| What is in the box footnote number | [1] In box cartridge yields 5,000 black pages based on ISO/IWC 19752 and continuous printing. Actual pages may vary considerably based on images printed and other factors. For more information, visit: http://www.hp.com/go/learnaboutsupplies. |
| Supported Printing Media | |
| Media sizes supported | Tray 1: A4, A5, A6, RA4, B5 (JIS), B6 (JIS), 10 x 15 cm, Oficio (216 x 340), 16K, postcards (JIS single and double), envelopes (B5, C5, C6, DL); Tray 2: A4, A5, A6, RA4, B5 (JIS), B6 (JIS), Oficio (216 x 340), 16K, postcards (JIS double); Optional 550-sheet Tray: A4, A5, A6, RA4, B5 (JIS), B6 (JIS), Oficio (216 x 340), 16K, postcards (JIS double); Optional Automatic Duplexer: A4, RA4, Oficio (216 x 340) |
| Media size, tray 3 | A4; A5; A6; RA4; B5 (JIS); B6 (JIS); Oficio (216 x 340); 16K; postcards (JIS double); 105 x 148 to 215.9 x 355.6 mm |
| Media size, tray 1 | A4; A5; A6; RA4; B5 (JIS); B6 (JIS); 10 x 15 cm; Oficio (216 x 340); 16K; postcards (JIS single and double); envelopes (B5, C5, C6, DL); 76.2 x 127 to 215.9 x 355.6 mm |
| Media size, tray 2 | A4; A5; A6; RA4; B5 (JIS); B6 (JIS); Oficio (216 x 340); 16K, postcards (JIS double); 105 x 148 to 215.9 x 355.6 mm |
| Standard media sizes (duplex) | A4; Oficio; RA4 |
| Media weight, supported | Tray 1: 60 to 199 g/m²; Tray 2+: 60 to 120 g/m² |
| Media types | Paper (bond, color, letterhead, plain, preprinted, prepunched, recycled, rough); envelopes; labels; cardstock; transparencies; user-defined |
| Media weight (tray 2) | 60 to 120 g/m² |
| Recommended media weight (duplex) | 60 to 120 g/m² |
| Media weight (tray 1) | 60 to 199 g/m² |
| Media weight (tray 3) | 60 to 120 g/m² |
| Media sizes, custom | Tray 1: 76.2 x 127 to 215.9 x 355.6 mm; Tray 2: 105 x 148 to 215.9 x 355.6 mm; Optional 550-sheet Tray: 105 x 148 to 215.9 x 355.6 mm |
| Media sizes supported, key | 10 x 15 cm; A4; Envelopes |
| System Requirements | |
| Minimum System Requirements for Macintosh | 2 GB available hard drive space, Internet connection or USB port, OS hardware requirements see apple.com; |
| Minimum System Requirements | 2 GB available hard disk space, Internet connection, USB port, Internet browser. For additional OS hardware requirements see microsoft.com |
| Software and Applications | |
| Driver updates | Current HP printer drivers and software can be obtained from the HP Customer Care Web site: In the US, go to http://www.hp.com/support/ljM507; Outside the US, go to http://www.hp.com/support 1 Select the country/region 2 Select Software and Drivers 3 Select Printer 4 Enter a product name/number 5 The operating system is automatically detected 6 Select a driver or other software 7 Then select DOWNLOAD |
| Downloadable software | From http://123.hp.com, HP Easy Start (Guided Software Install for Windows and Mac), From http://hp.com for Windows OS, Full-solution software and drivers, Basic-solution software and drivers, HP PCL6 XPS Discrete Print Driver, Product Documentation and Support, From http://hp.com for Mac OS, HP Easy Start (Guided Software Install), HP Mac PS Print Driver, HP Easy Admin, For Mobile OS, iOS For more information see http://hp.com/go/businessmobileprinting, Android For more information see http://hp.com/go/businessmobileprinting, From http://hp.com for printer administrators, Printer Administrator Resource Kit (Driver Configuration Utility – Driver Deployment Utility – Managed Printing Administrator), HP Universal Print Drivers PCL6 GDI & PS GDI for Windows, HP ePrint Software (Mobile Driver for Windows), SAP Print Drivers for more information see http://support.hp.com/us-en/document/c05051702, HP Web JetAdmin, HP JetAdvantage Security Manager, HP Roam, HPLIP Linux Printer Driver for more information see http://hplipopensource.com/hplip-web/index.html, Unix Model Script Printer Driver for more information see http://hp.com/go/unixmodelscripts, ReadIris |
| Mac compatible | Yes |
| Software included | No software solutions are included in the Box, only on http://hp.com, http://123.hp.com |
| Supported Operating Systems | |
| Compatible Operating Systems | Windows Client OS (32/64 bit), Win10, Win8.1, Win 8 Basic, Win8 Pro, Win8 Enterprise, Win8 Enterprise N, Win7 Starter Edition SP1, UPD Win7 Ultimate, Mobile OS, iOS, Android, Mac, Apple® macOS Sierra v10.12, Apple® macOS High Sierra v10.13, Apple® macOS Mojave v10.14, Discrete PCL6 Printer Driver, For more information on the supported operating systems go to http://support.hp.com, Enter your product name and search, Click on User Guides and enter your product name and search for User Guide, Search for your (Product Name) – User Guide, Search for the Supported Operating Systems section, UPD PCL6 / PS Printer Drivers, Supported Operating systems, For more information on the supported operating systems see http://www.hp.com/go/upd |
| Compatible network operating systems | Windows Server 2008 R2 64-bit, Windows Server 2008 R2 64-bit (SP1), Windows Server 2012 64-bit, Windows Server 2012 R2 64-bit, Windows Server 2016 64-bit, Failover Cluster 2008 R2, Failover Cluster 2012 R2, Terminal server 2008 R2, Remote Desktop server 2012 R2, Citrix Server 6.5, Citrix XenApp & XenDesktop 7.6, Novell iPrint server, Citrix Ready Kit Certification – Up to Citrix Server 7.18 for more information see http://citrixready.citrix.com, Linux- For more information see http://developers.hp.com/hp-linux-imaging-and-printing, Unix- For more information see http://hp.com/go/unixmodelscripts, UPD PCL6 / PS Printer Drivers-, Supported for Compatible Network Operating systems please see http://hp.com/go/upd |
| Print Resolution | |
| Print quality black (normal) | Up to 600 x 600 dpi |
| Print quality black (best) | Up to 1200 x 1200 dpi |
| Print resolution black (fine lines) | Up to 1200 x 1200 dpi |
| Rack and Power Specifications | |
| Typical electricity consumption (TEC) number | 1.257 kWh/Week (Blue Angel); 1.310 kWh/Week (Energy Star) |
| Number of users | 5-15 Users |
| Typical electricity consumption (TEC) footnote number | [4] Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty. Energy Star value typically based on measurement of 115 V device. |
| Print Area | |
| Right margin (A4) | 4.3 mm |
| Top margin (A4) | 4.3 mm |
| Bottom margin (A4) | 4.3 mm |
| Left margin (A4) | 4.3 mm |
| Services | |
| Services (Care Pack) | UB6Z2E: HP 3 years Next Business Date w/DMR LaserJet Enterprise M507 SVC; UB6Z3E: HP 4 years Next Business Date w/DMR LaserJet Enterprise M507 SVC; UB6Z4E: HP 5 years Next Business Date w/DMR LaserJet Enterprise M507 SVC; UB6Z5E: HP 3 years 4 hours 9×5 w/DMR LaserJet Enterprise M507 SVC; UB6Z6E: HP 4 years 4 hours 9×5 w/DMR LaserJet Enterprise M507 SVC; UB6Z7E: HP 5 years 4 hours 9×5 w/DMR LaserJet Enterprise M507 SVC; UB7A1E: HP 3 years ChnlPartsOnly LaserJet Enterprise M507 SVC; UB7A2E: HP 4 years ChnlPartsOnly LaserJet Enterprise M507 SVC; UB7A3E: HP 5 years ChnlPartsOnly LaserJet Enterprise M507 SVC; UB7A4PE: HP 1 year PageWide Next Business Date w/DMR LaserJet Enterprise M507 SVC; UB7A5PE: HP 2 years PageWide Next Business Date w/DMR LaserJet Enterprise M507 SVC; UB7A6PE: HP 1 year PageWide w/DMR 4 hours 9×5 LaserJet Enterprise M507 SVC; UB7A7PE: HP 2 years PageWide w/DMR 4 hours 9×5 LaserJet Enterprise M507 SVC; UB7B0PE: HP 1 year PageWide ChnlPartsOnly LaserJet Enterprise M507 SVC; UB7B1PE: HP 2 years PageWide ChnlPartsOnly LaserJet Enterprise M507 SVC |
| Advanced Features | |
| Printer smart software features | Print preview, duplex printing, print multiple pages per sheet (2, 4, 6, 9, 16), collation, watermarks, store print jobs, easy-access USB |
| Security Management | |
| Security management | Identity management: Kerberos authentication; LDAP authentication; 1000 user PIN codes; optional HP and 3rd party advanced authentication solutions (e.g.; badge readers); Network: IPsec/firewall with Certificate; Pre-Shared Key; and Kerberos authentication; Supports WJA-10 IPsec configuration Plug-in; 802.1X authentication (EAP-PEAP; EAP-TLS); SNMPv3; HTTPS; Certificates; Access Control List; Data: Storage Encryption; Encrypted PDF & Email (uses FIPS 140 validated cryptographic libraries from Microsoft); Secure Erase; SSL/TLS (HTTPS); Encrypted Credentials; Device: Security lock slot; USB port disablement; hardware integration pocket for security solutions; Intrusion Detection with Red Balloon Security Technology – Constant in-device monitoring for attacks; SureStart Secure Boot – BIOS Integrity Checking with self-healing capability; Whitelisting – loads only known good code (DLLs, EXEs, …); Connection Inspector – helps ensure network connections to device are safe, Security management: Compatible with HP JetAdvantage Security Manager, HP Printer Security Plugin for Microsoft SCCM, Device Security Syslog Messages processed and accessable in ArcSight, Splunk, and McAfee(ESM) SIEMs |
| Compatibility | |
| Accessories | HP LaserJet 550 Sheet Paper Tray F2A72A, HP LaserJet Printer Cabinet F2A73A, HP USB Port 100 pc M507/M528 Accessory 1PV95A, HP Secure Hard Disk Drive with FIPS Validation (TAA Compliant) 5EL03A, HP Internal USB Ports B5L28A, HP Secure High Performance Hard Disk Drive B5L29A, HP Jetdirect 2900nw Print Server J8031A, HP 1 GB 90-Pin DDR3 DIMM G6W84A, Accessibility Assistant 2MU47A, HP Jetdirect 3000w NFC/Wireless Accessory J8030A, HP JetDirect 3100w BLE/NFC/Wireless Accessory 3JN69A, HP Removable Hard Drive Enclosure 2NR12A, HP USB Universal Card Reader X3D03A, HP HIP2 Keystroke Reader Y7C05A, HP Logic Card Reader 4QL32A |
| Footnotes | |
| Tech spec footnote | [15] Configuration tested: base model, simplex printing, A4 paper at an average of 43 ppm. |
| Tech spec footnote | [13] Measured using ISO/IEC 24734, excludes first set of test documents. For more information see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity. |
| Tech spec footnote | [14] Measured using ISO/IEC 17629. For more information see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity. |
| Tech spec footnote | [12] Configuration tested: base model, simplex printing, A4 paper at an average of 43 ppm |
| Product Description | |
| Product description disclaimer | Dynamic security enabled printer. Only intended to be used with cartridges using an HP original chip. Cartridges using a non-HP chip may not work, and those that work today may not work in the future. |
