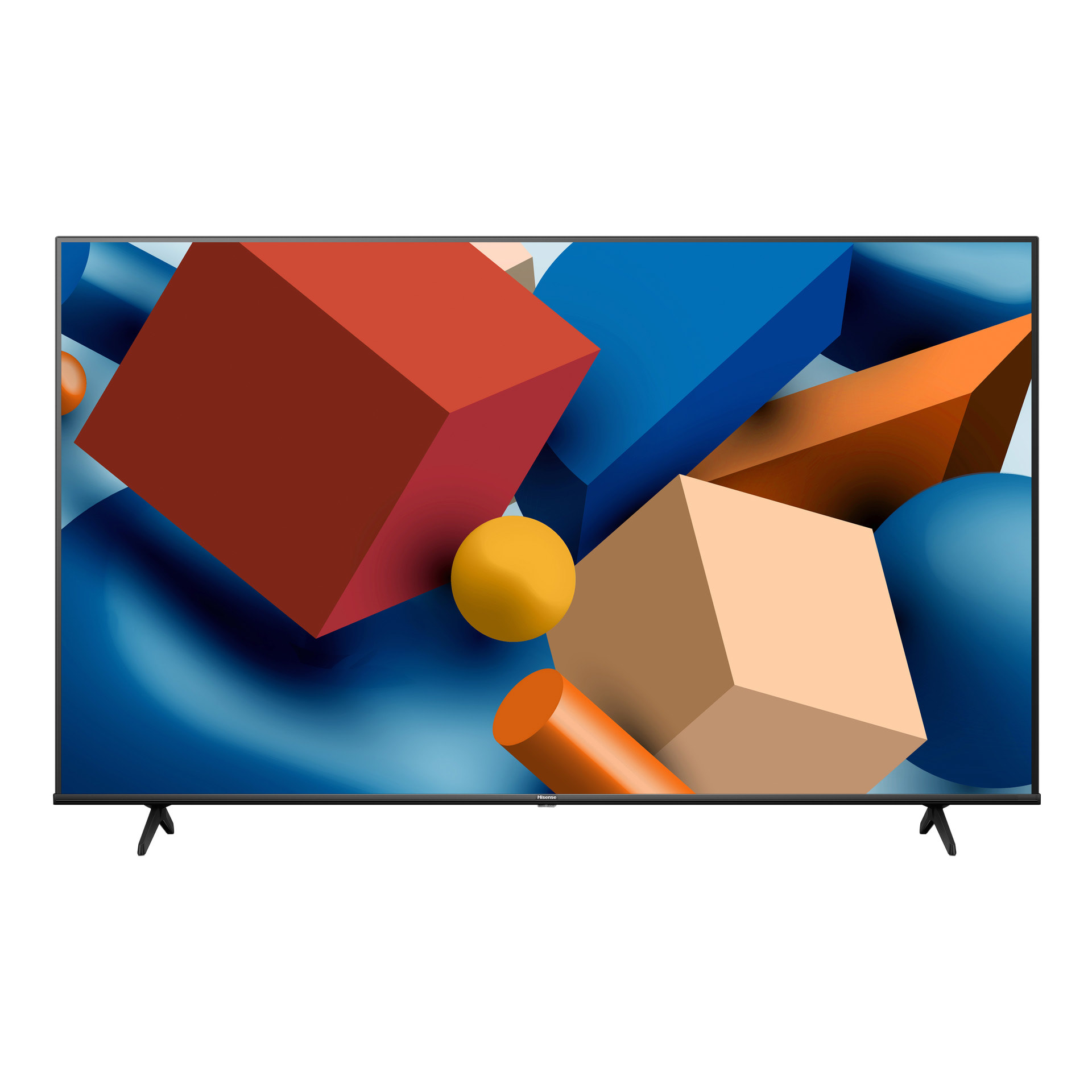

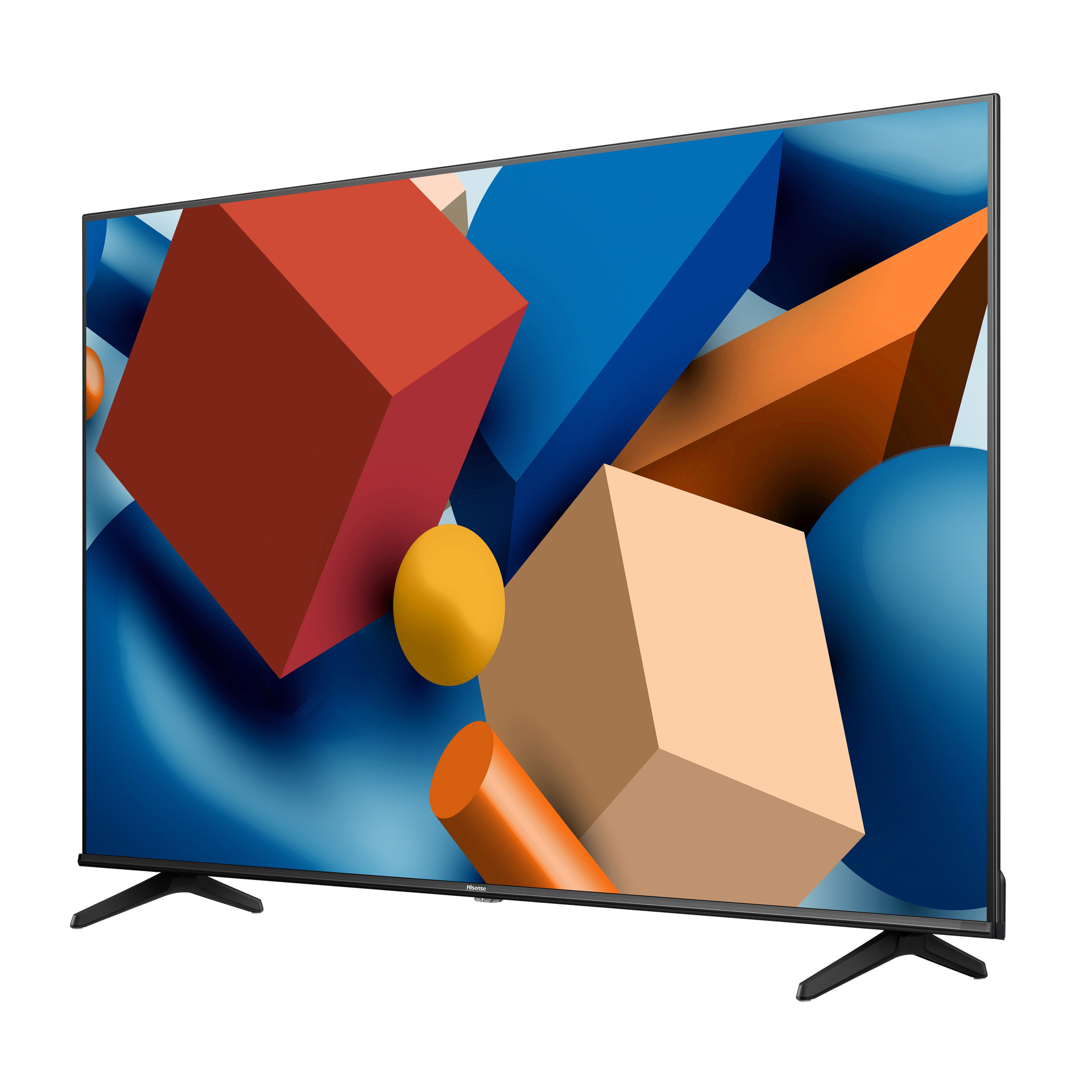

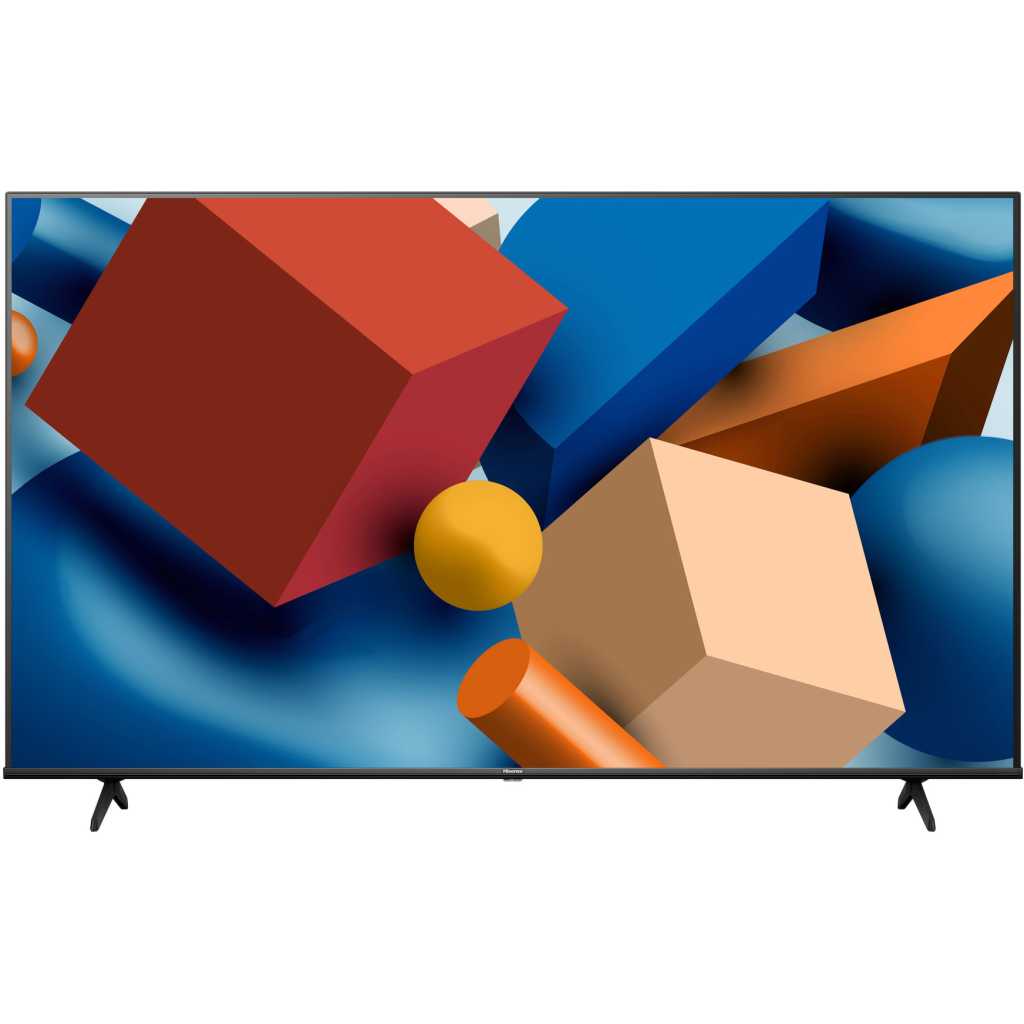

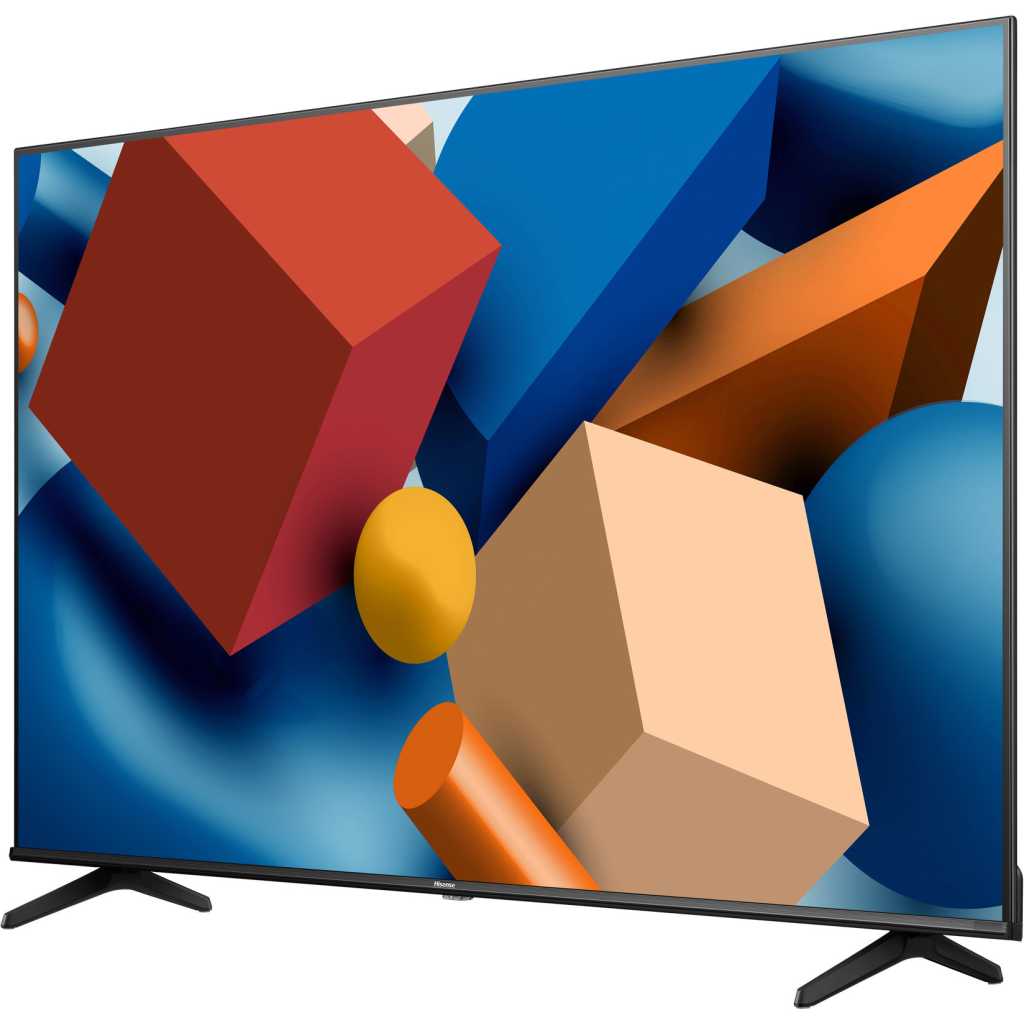

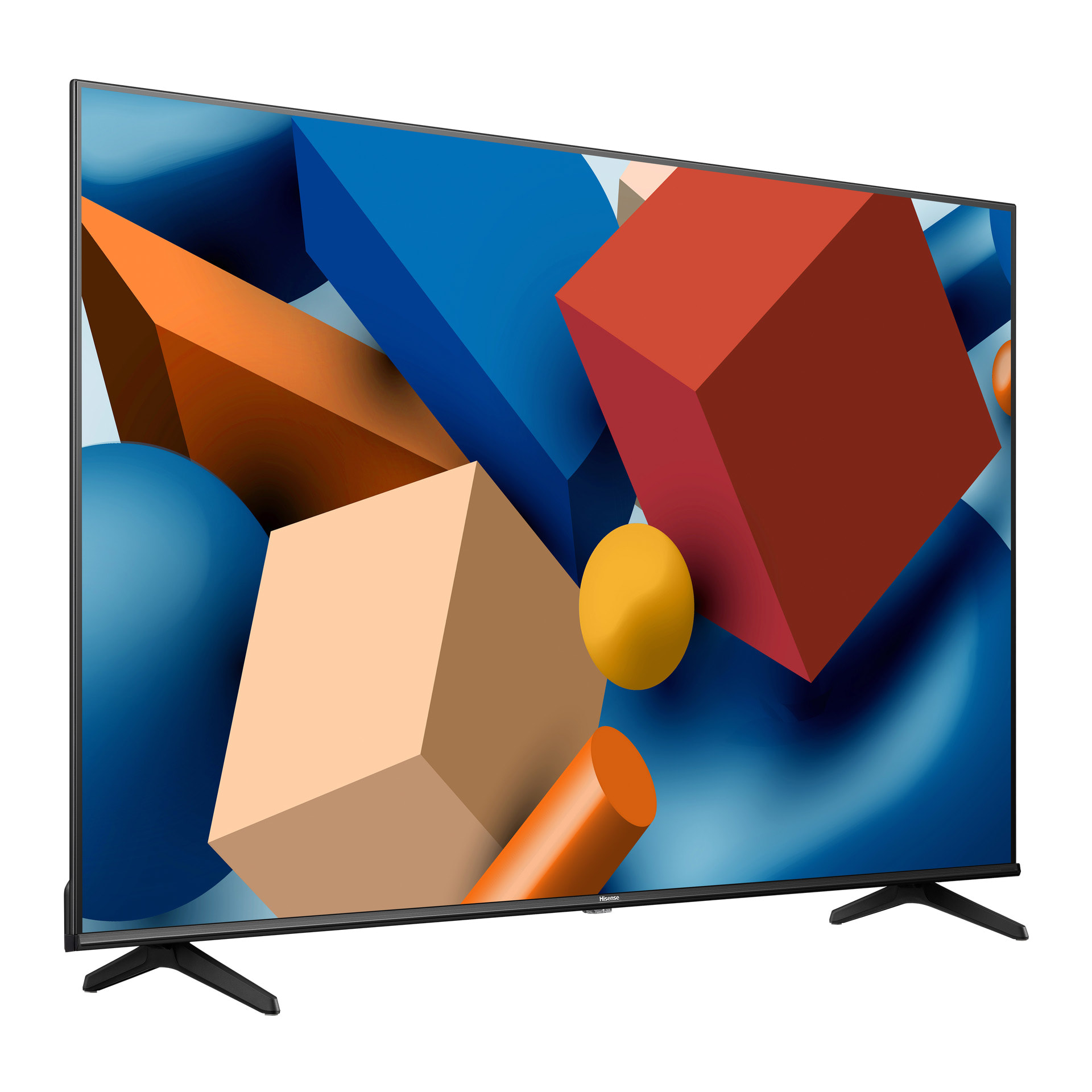

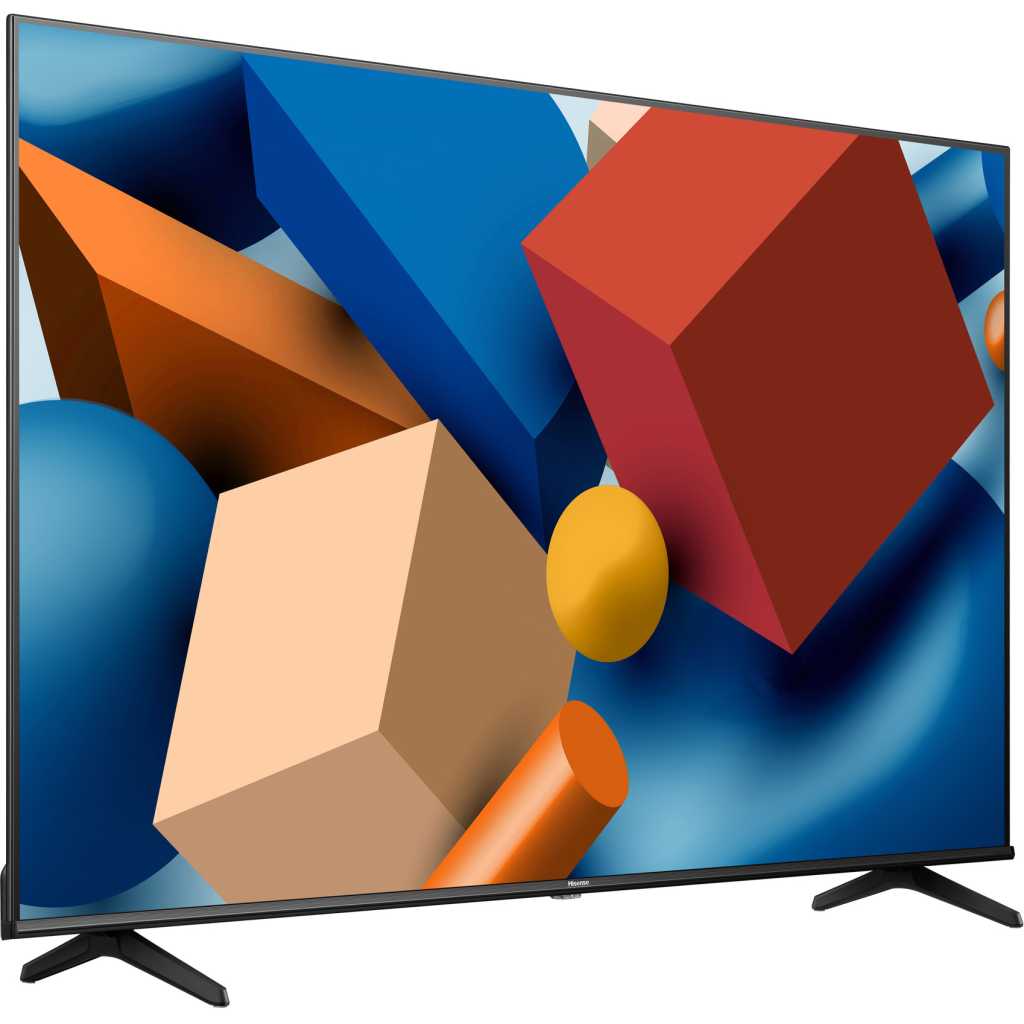

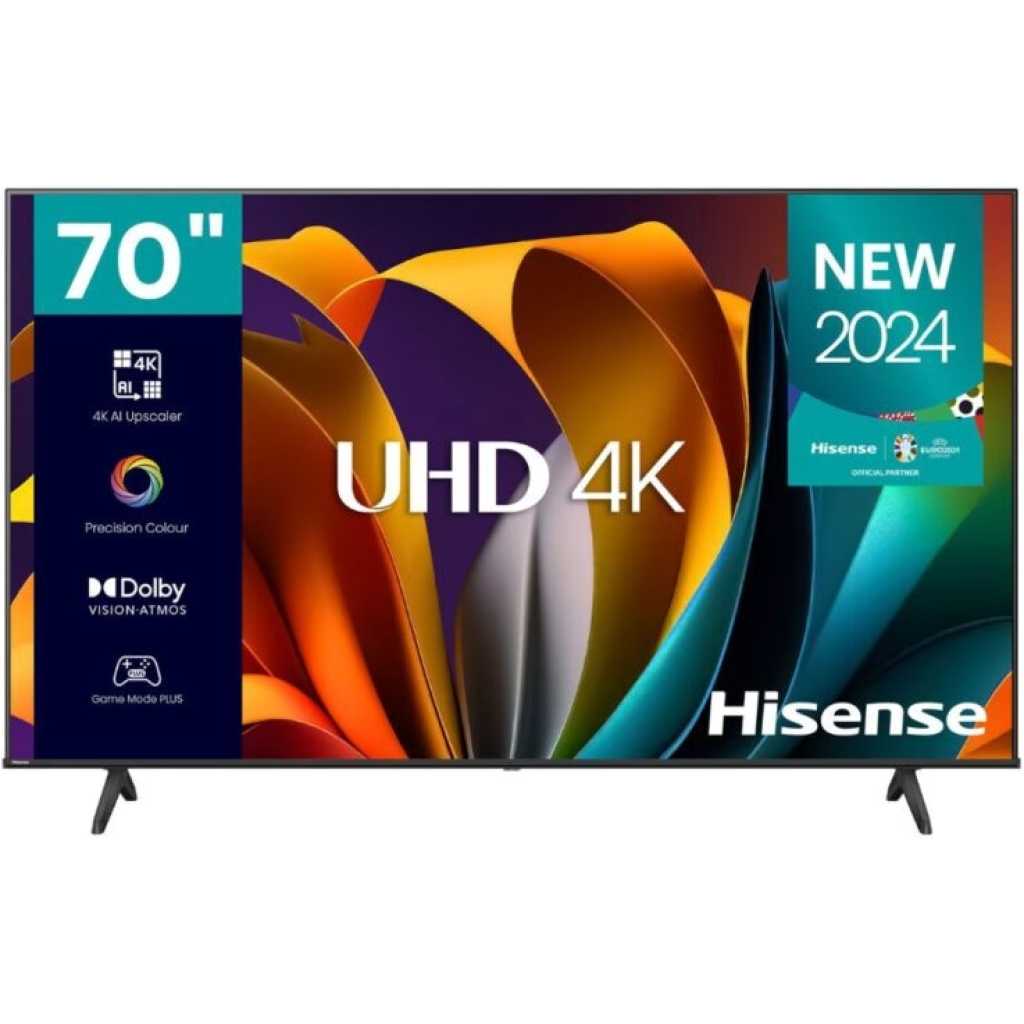

Hisense 70-Inch UHD 4K Smart VIDAA TV 70A6HS, HDR, Bluetooth, Wifi, USB, HDMI With Inbuilt Free To Air Decoder – Black.
Specifications
| Commercial model | 70A6K |
|---|---|
| Factory model | 70A51HXVT |
| Factory | Qingdao |
| Description | 177cm (70″ ) Direct LED Television |
| Document | |
| Specifications form version | HA230216 |
| Circulation | Restricted, internal use only |
| Status | Confirmed |
| Revision number | 1 |
| Date | 2023/02/16 |
| Issued by | Al |
| Image display | |
| Panel manufacturer | Hisense |
| Panel model | HD700X1U92-TABY |
| Active display area, horizontal dimension | 1549,44 |
| Active display area, vertical dimension | 846,72 |
| Screen size (rounded to nearest integer) | 177 |
| Screen size (rounded to nearest integer) | 70 |
| Display technology | LCD/ LED lit |
| Backlight source | Direct LED |
| Resolution (Horiz x Vert) | 3840X2160 |
| Screen curvature radius | – |
| Colour depth | 8bit |
| Image refresh frequency | 60 |
| Smooth motion rate | 60 |
| 3D image | – |
| Typical brightness of white | 300 |
| Native contrast ratio | 5000：1 |
| Viewing Angle (Horiz / Vert) | 178/ 178 |
| Quantum dot | No |
| Wide colour gamut | No |
| KSF phosphor | No |
| UHD Premium | No |
| Response Time | 8 |

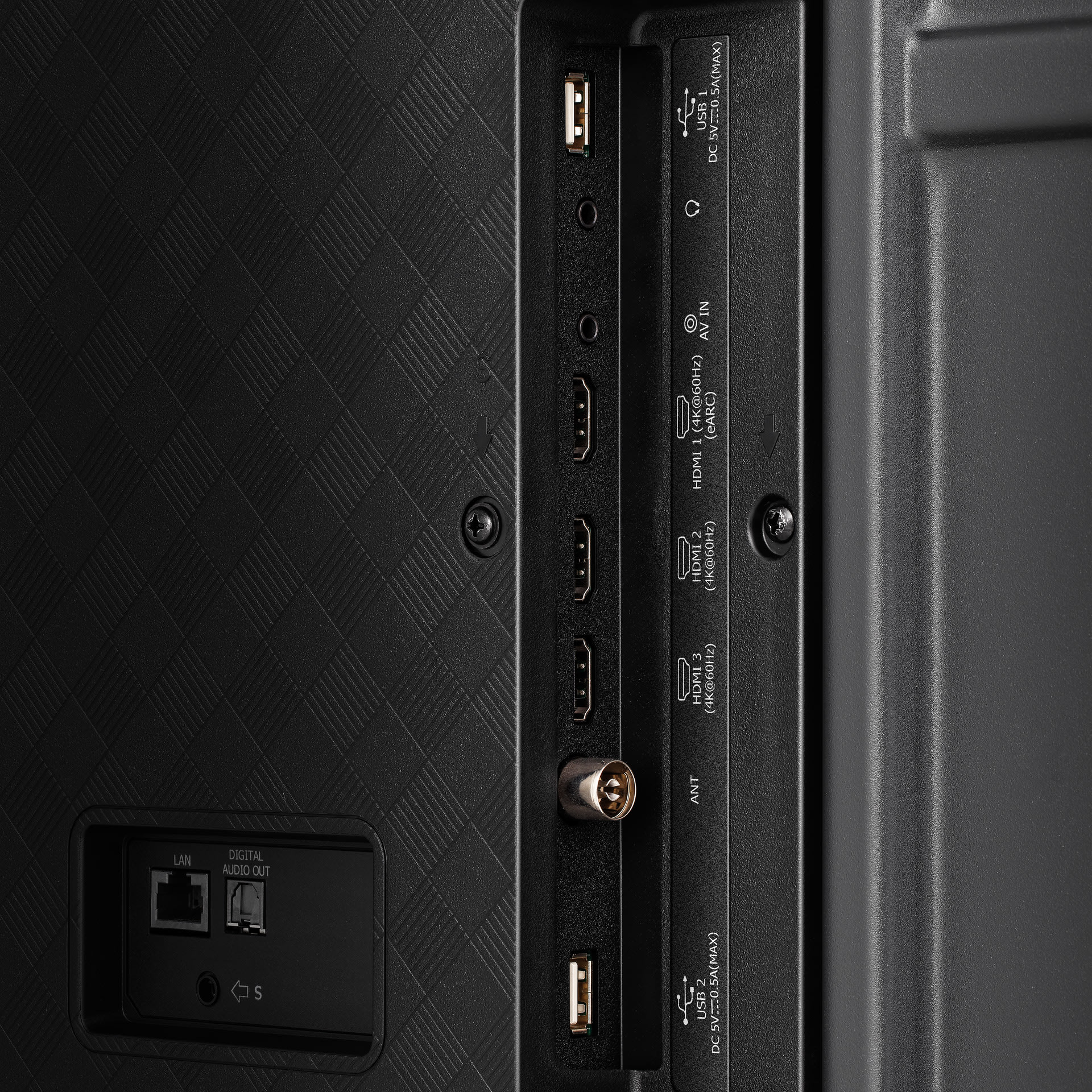

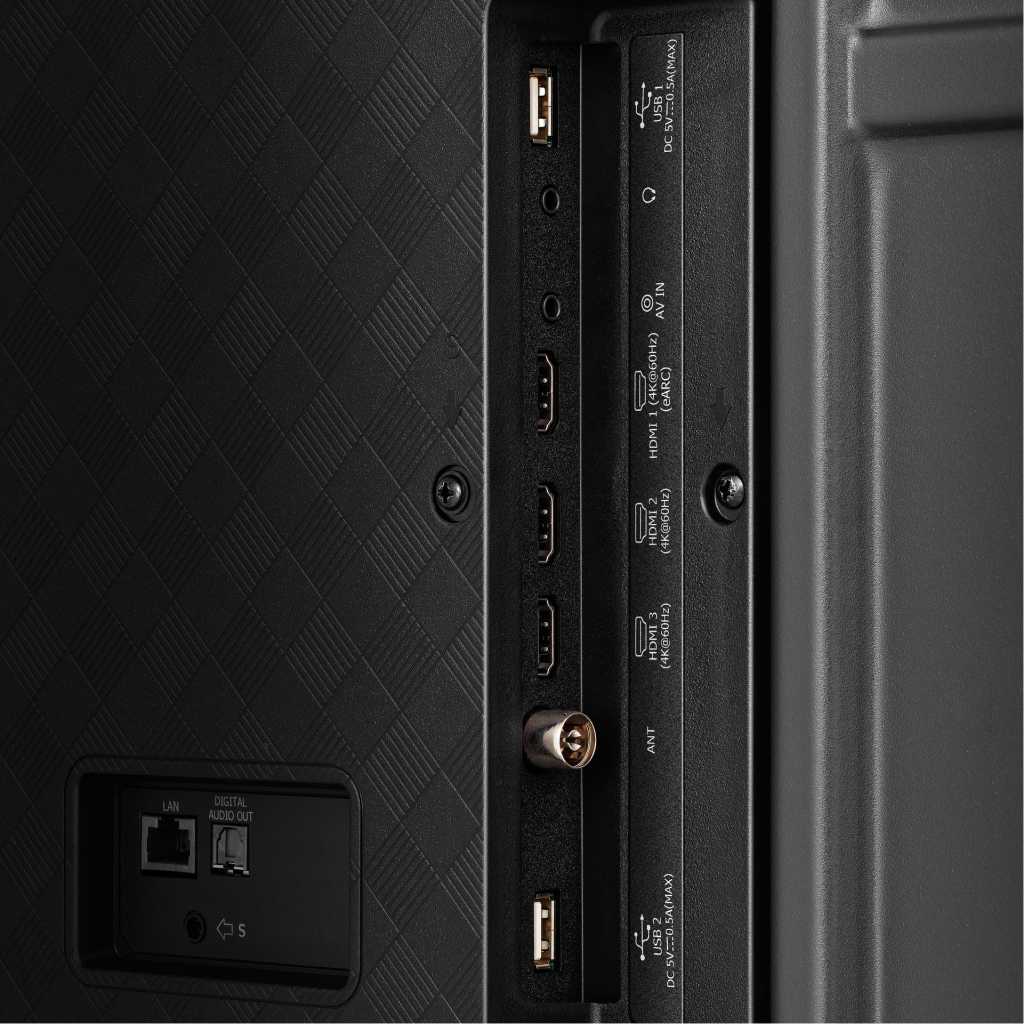

| Connectivity | |
| RF- Radio frequency input | 1 |
| AV input | 1 |
| AV output | 0 |
| USB interface type 3.0 (Qty / List….) | 0 |
| USB interface type 2.0 (Qty / List ….) | 2/ USB1, USB 2 |
| Optical digital audio output (SPDIF) | 1 |
| Earphone jack | 1 |
| HDMI ports | |
| HDMI inputs | 3 |
| HDMI type 8K@60Hz | No |
| HDMI type 4K@60Hz with HDCP version 2.2 | 3*HDMI2.0 (ALLM, VRR(48-60Hz)) |
| HDMI 2.1 compliant input | NO |
| Enhanced Audio Return Channel ( eARC) | Yes |
| CEC- Consumer Electronics Control via HDMI | Yes |
| Smart TV | |
| Ethernet port (RJ45 connector) | 1 |
| Wi-Fi protocols IEEE 802.11 {b, g, n, ac, ad, ..} | a, b, g, n, ac |
| Wi-Fi bands | 2.4/5.0 |
| DLNA compliance | Yes |
| Bluetooth / BT version | Yes / 5.0 |
| Anyview (Screen mirroring) | Yes |
| BVOD services (Iview, SBS on Demand, 9Now, 7Plus, Tenplay) | Iview, SBS on Demand, 9Now |
| Installed Applications {List ……} | Netflix/Youtube/Prime Video…… |
| Freeview Plus – HbbTV 2.0 | Yes |
| Web browser [Chrome | Opera | Other] | Odin |
| Digital TV reception | |
| Digital broadcating (DVB-T / DVB-T2) | Yes / Yes |
| Video decoder (MPEG2 / MPEG 4) | Yes / Yes |
| LCN- Logical channel number and DTV Service name support | Yes |
| Teletext / Teletext signal interruption (TAB compliant) / 16 : 9 TLTX | Yes / Yes / Yes |
| Subtitles | Yes |
| EPG- Electronic programming guide, 7 days for all services | Yes |
| Audio description (vision impairment aid) | Yes |
| Parental rating lock | Yes |
| Analog Tuner | Yes |
| Image processing | |
| Backlight control | Yes |
| Light sensing | No |
| Dynamic backlight control | No |
| Frame rate control | No |
| Variable Refresh Rate (VRR) | Yes |
| FreeSync | No |
| Auto Low Latency Mode for VRR | Yes |
| Local dimming/ controllable zones | No |
| Zoom function settings | Automatic/ 16:9/ 4:3/ Panoramic/ Movie Zoom/ Direct |
| HDR – High Dynamic Range for luminance (DMP / Netflix / HDMI) | Yes / Yes / Yes |
| HDR system (HDR10 / HDR10+ / Dolby Vision) | No/ No / YES |
| HLG (Hybrid Log-Gamma) for HDR | YES |
| HEVC (H.265) decoder | Yes |
| Motion enhancement and compensation (MEMC) | Yes |
| Picture mode | Standard,Cinema Day,Cinema Night,Dynamic,Sports |
| Sound | |
| Audio power output per channel | 15 |
| Number of speakers (Tweeter / Midrange / Woofer) | 0/2 /0 |
| Automatic volume level (AVL) | Yes |
| Audio equalizer | Yes |
| Dolby Digital | Yes |
| Audio enhancement -Type {SRS, BBE, SAP, DBX-TV….} | DTS Virtual X |
| Lip-sync adjustment | Yes |
| Sound mode | Stand,Theatre,Music,Speech,Late Night,Sports. |
| Features | |
| On/off timer | Yes |
| Power off if no signal | Yes |
| Sleep timer | Yes |
| Program lock | Yes |
| OSD transparency control | Yes |
| User interface | VIDAA U6 |
| Software version OSD indication | Yes |
| Legal requirements: Disclaimer / Acceptance of Terms | Yes / Yes |
| Favourite channels list | Yes |
| Electronic point of sales (E-POS) | Yes |
| OTA- Over the air software updates | Yes |
| Voice command | Yes |
| Screen mirroring {Miracast, Anyview Cast, …} | Screen Sharing |
| Smartphone remote control application {Rremote Now, …} | Yes |
| Replaceable demo video for Store mode | Yes |
| Remote control via serial port | No |
| USB media player | |
| Personal Video Recorder | Yes |
| Time Shift | Yes |
| DTV Recording (EPG scheduling / start from Standby ) | Yes / Yes |
| DivX decoder | No |
| MPEG4 (H.264) / H.265 decoder | Yes / Yes |
| DMP- Digital media player content (Music / Video / Photos / Text) | Yes / Yes / Yes / No |
| DMP Auto-play | No |
| DMP for UHD content via USB | Yes |
| DMP File allocation table (FAT / FAT32 / exFAT / NTFS) | Yes / Yes / No / Yes |
| PVR File allocation table (FAT / FAT32 / exFAT / NTFS) | Yes / Yes / No / Yes |
| Hotel lock | |
| Protected Hotel lock submenu (Password / fixed code) | No / Yes |
| Clone function for programs, sound and image settings. | Yes |
| Sub-menu lock, including tuning lock | Yes |
| Keyboard lock | Yes |
| Maximum volume lock | Yes |
| Power on volume | Yes |
| Power on, apply default sound/image settings | No |
| Power on source selection | Yes |
| Power on RF channel selection | Yes |
| Power on mode (On / Standby / Last) | Yes / Yes / Yes |
| Inputs access (Enable / Disable) | Yes |
| Hardware | |
| Processor / Cores | MT9602R |
| Dual Tuner | No |
| Colour (Front bezel, rear, stand) | Black / Black / Black |
| Speakers mounted in enclosure | Yes |
| Mains power switch | No |
| Swivel base | No |
| Compact packaging | Yes |
| Supply range [Voltage / Frequency ] | 100 ~ 240V，50Hz/60Hz |
| Standby consumption | < 0.5W |
| Maximum time delay Power On to sound an image | 30 |
| Installation | |

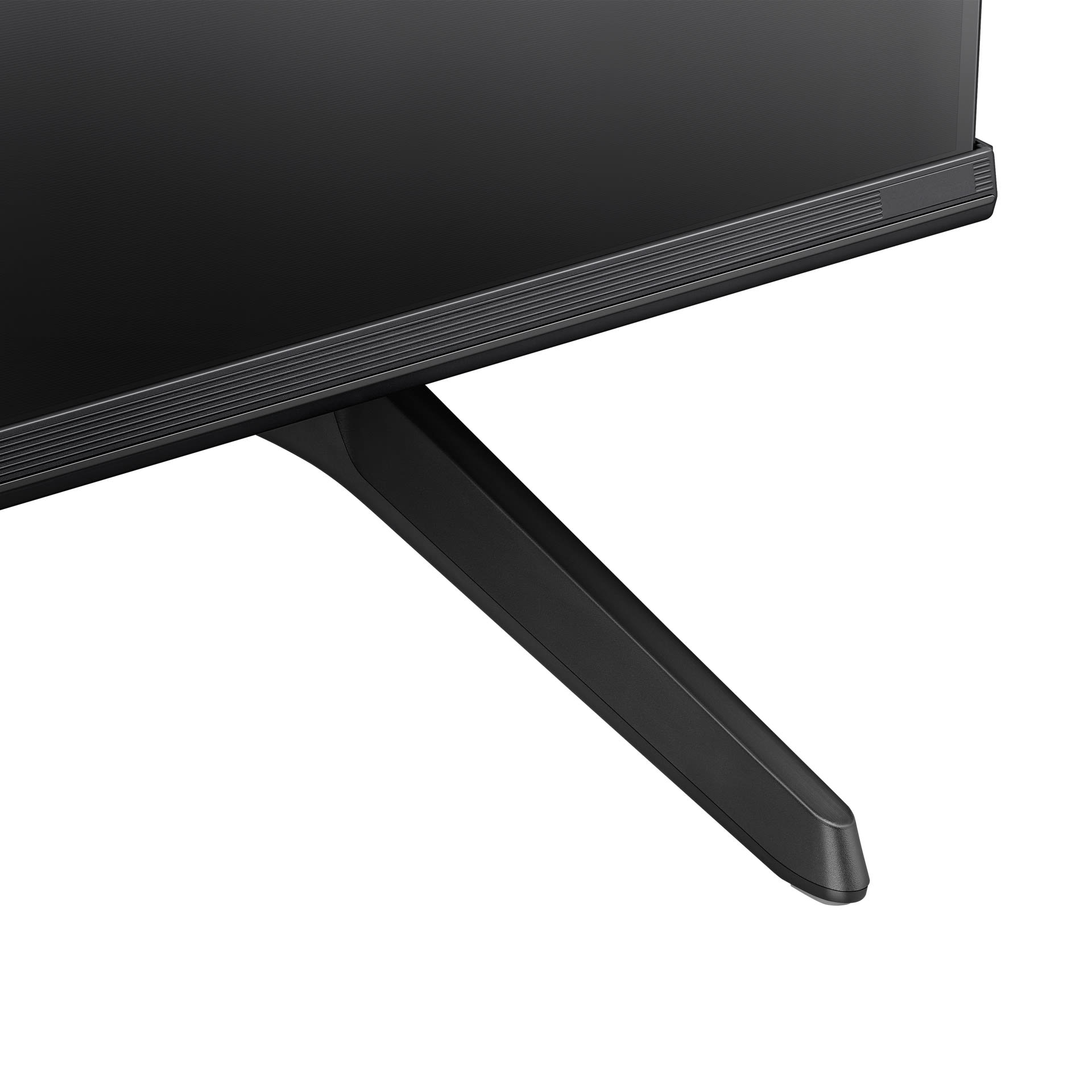

| Stand area (Width / Depth) | 1293×369 |

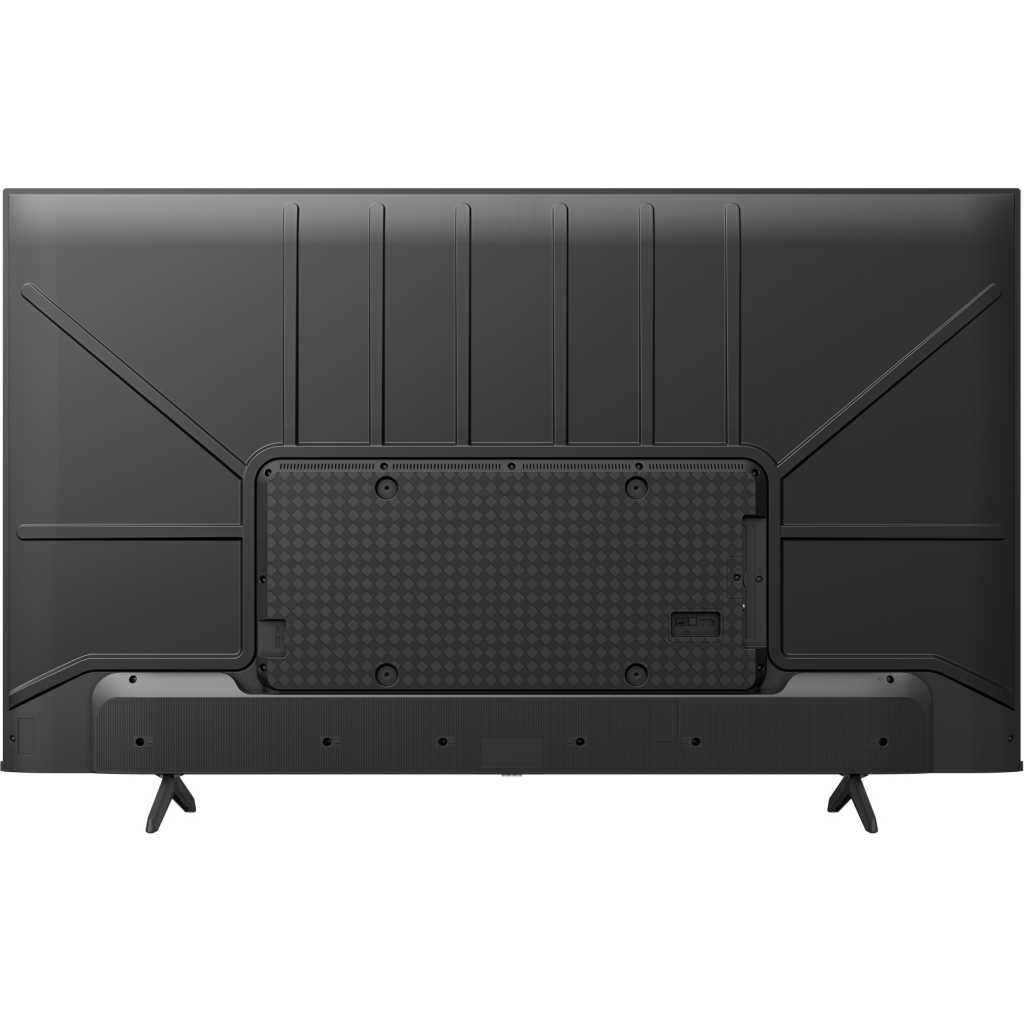

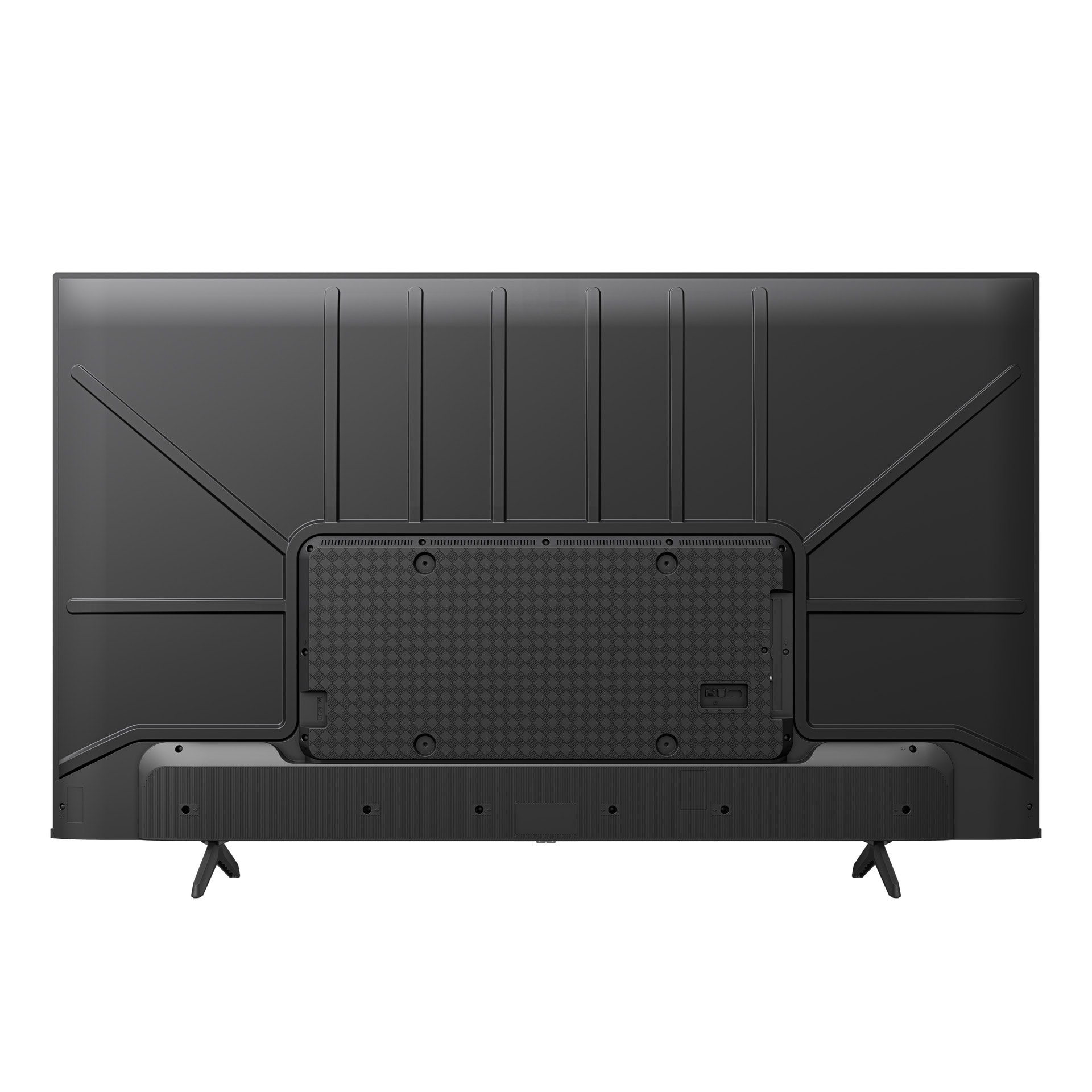

| Wall mount dimensions (Horiz x Vert) | 400×300 |
| Wall mount, screw thread | M6/10 |
| VESA compliance | Yes |
| Detachable power cord | Yes |
| Power cord length | 155 |
| Accessories | |
| Remote controller (Technology / Part number ) | IR /EN2K36H(0011) |
| Battery (size / quantity) | AAA / 2 |
| User manual (Available online) / Quick setup guide (Print) | 1 / 1 |
| Warranty [In User manual | In separate sheet] | In separate sheet |
| Skype camera (Qty / Part number) | – |
| 3D glasses type [Passive | Shutter] / Link [RF | IR | BT] | – |
| 3D glasses (Qty / Part number) | – |
| Dimensions | |
| Dimensions with stand (W x H x D) | 1577×964×369 |

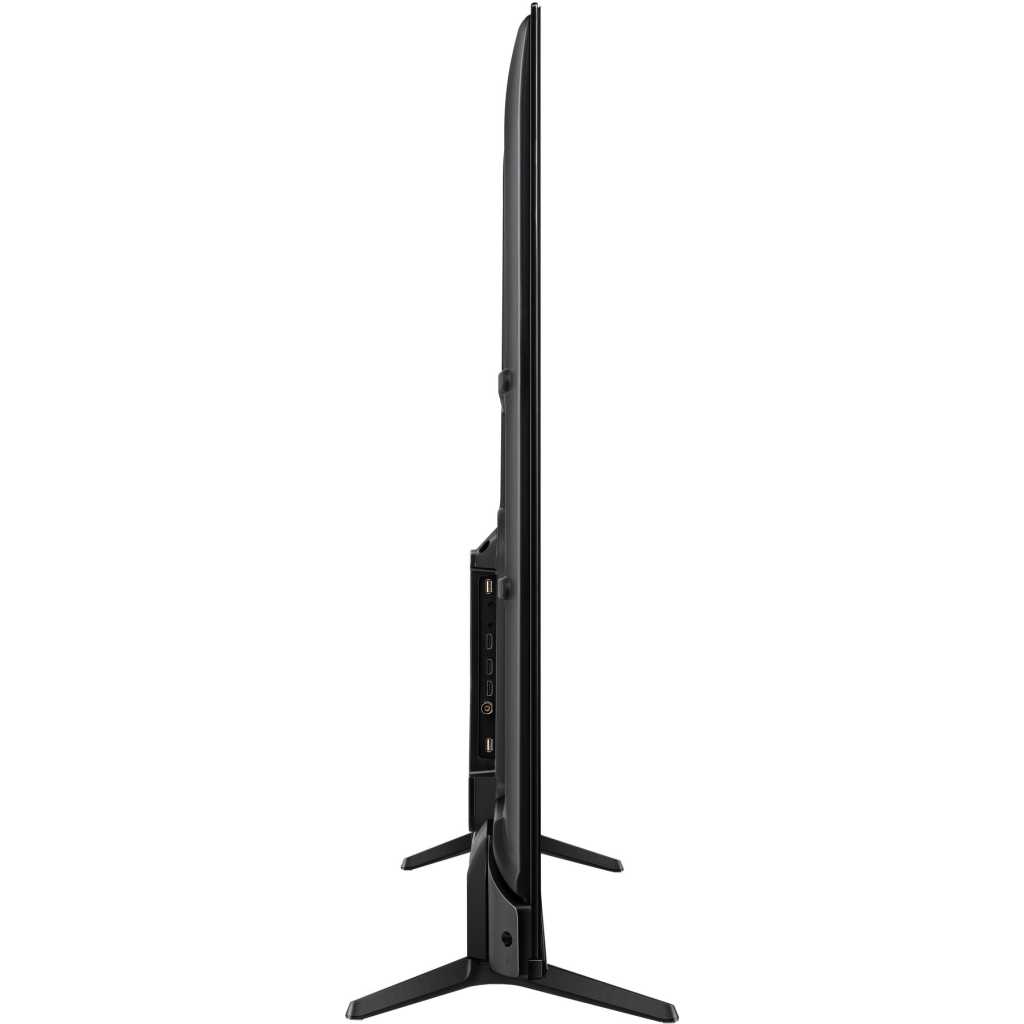

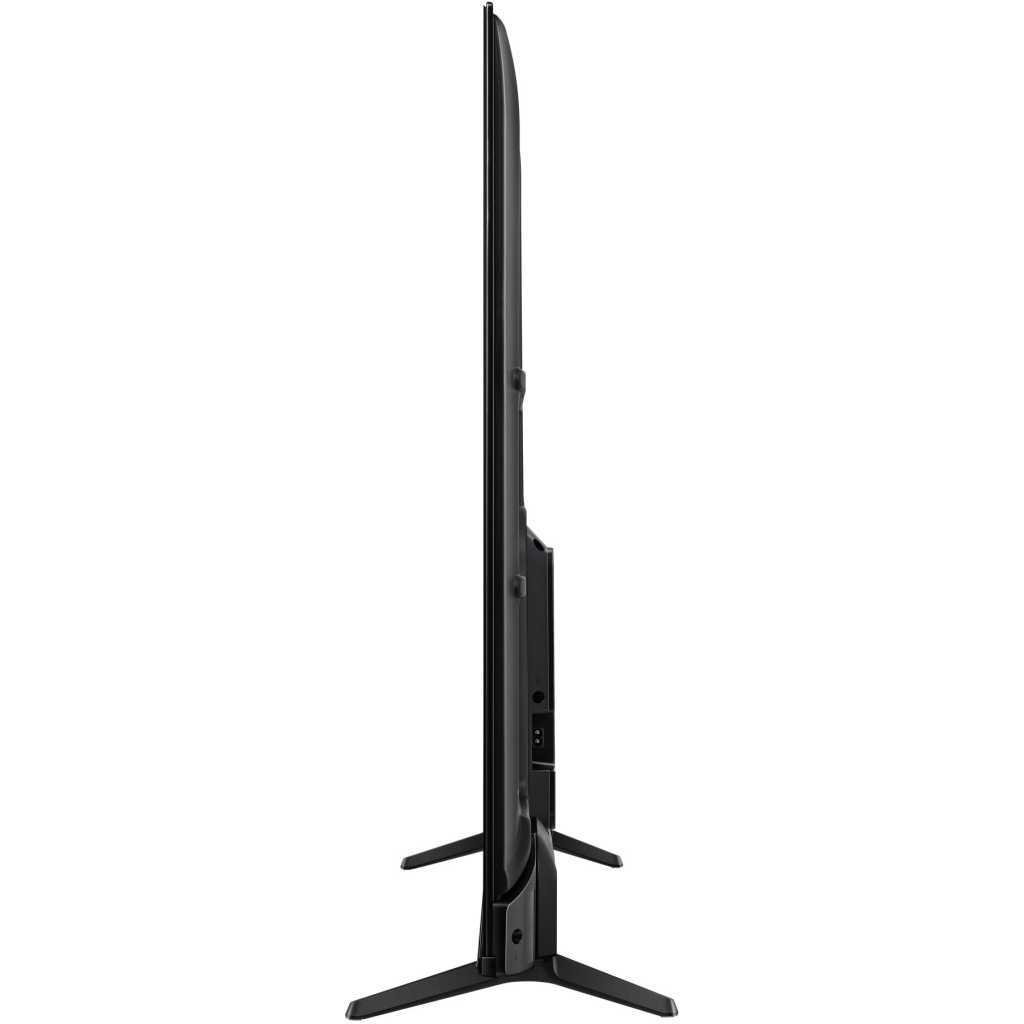

| Dimensions without stand (W x H x D) | 1577×883×84 |
| Carton box dimensions (W x H x D) | 1765×1075×211 |
| Net weight (with stand / without stand) | 21.5Kg/21Kg |
| Gross weight | 30Kg |
| Container load (20ft / 40ft / 40ft HC) | 70/144/144 |
| Licensing and certification | |
| EMC- Electromagnetic Compatibility | Yes |
| CB- Electrical safety | Yes |
| HDMI | Yes (Hisense internal test) |
| Dolby Digital | Yes |
| MEPS- Test report | Yes |
| ROHS | No |
| Electrical safety conformity for Australia | Yes |
| Documentation | |
| CB report and certificate | Yes |
| EMC report and certificate | Yes |
| Power cord, plug and connector Australian safety approval | Yes |
